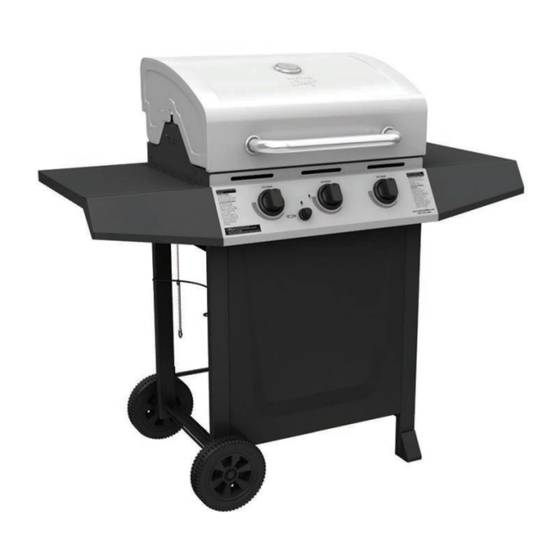

Master Chef S420 Assembly Manual

Barbecue
Hide thumbs

Advertisement

Quick Links

Download this manual
TM
MC
S420 Barbecue
Assembly Manual
85-3062-2 (G45123) Propane
85-3063-0 (G45124) Natural Gas
1 YEAR LIMITED WARRANTY
READ AND SAVE MANUAL FOR FUTURE REFERENCE.
Assemble your grill immediately.
Missing or damaged parts claims must be submitted within 30 days of purchase date.
For product inquiries, parts, warranty and troubleshooting support,
please call 1-855-453-2150.
Manual Revision #: 12022013 PD
ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012
ANS Z21.58b-2012-CSA 1.6b-2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the S420 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Master Chef S420

Summary of Contents for Master Chef S420

  • Page 1 S420 Barbecue Assembly Manual 85-3062-2 (G45123) Propane 85-3063-0 (G45124) Natural Gas 1 YEAR LIMITED WARRANTY READ AND SAVE MANUAL FOR FUTURE REFERENCE. Assemble your grill immediately. Missing or damaged parts claims must be submitted within 30 days of purchase date.
  • Page 2 H E A V Y A R T I C L E N E E D S 2 T O L I F T THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES To ORDER non-warranty replacement parts or accessories, or to register your warranty, please visit us on the web at www.masterchefbbqs.com CAUTION...

  • Page 3: Tools Needed For Assembly

    HARDWARE PACK TOOLS NEEDED FOR ASSEMBLY KEY # DESCRIPTION PART NUMBER QUANTITY 1/4” x 13mm Screw 20120-13013-036 • #2 Phillips screwdriver (long and short) 1/4”-20UNC Nut 31220-13000-036 #8X3/8” Self Tapping Screw 24200-42008-136 • ¼” Slotted screwdriver (long and short) φ7 Fiber Washer G431-0018-9000 •...
  • Page 4 PARTS LIST (PROPANE) FOR 85-3062-2 (G45123) KEY # QUANTITY DESCRIPTION PART NO. Top Lid Assembly G451-0E00-01 Thermometer and bezel G432-000K-01 Top Lid Handle G451-0063-01 Lid Bumbers-Back G303-0038-01 Lid Bumbers-Front G430-00B8-01 Screws For Lid G430-0024-01 Burner Box Assembly G451-0H00-01 Burner G432-B600-01 Electrode Set,Main Burners G501-0010-01 Burner Brace Assembly...
  • Page 5 EXPLODED DIAGRAM (PROPANE) FOR 85-3062-2 (G45123) SAFETY ASSEMBLY AND CARE MANUAL HARDWARE MANUAL PACK...
  • Page 6 PARTS LIST (NATURAL GAS) FOR 85-3063-0 (G45124) KEY # QUANTITY DESCRIPTION PART NO. Top Lid Assembly G451-0E00-01 Thermometer and bezel G432-000K-01 Top Lid Handle G451-0063-01 Lid Bumbers-Back G303-0038-01 Lid Bumbers-Front G430-00B8-01 Screws For Lid G430-0024-01 Burner Box Assembly G451-0H00-01 Burner G432-B600-01 Electrode Set,Main Burners G501-0010-01...
  • Page 7 EXPLODED DIAGRAM (NATURAL GAS) FOR 85-3063-0 (G45124) SAFETY ASSEMBLY AND CARE MANUAL HARDWARE MANUAL PACK...

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS PROPANE MODELS ONLY: NATURAL GAS MODELS WILL NOT INCLUDE THE TANK EXCLUSION (DI) Note: You will need two people for this step. Assemble the tank exclusion (DI) to the left and right cart side panels (DA, DB), as shown. Note: The left cart side panel (DB) will have large holes on the end of the legs for assembling the wheel axle (DH).
  • Page 9 ASSEMBLY INSTRUCTIONS Assemble the two Back Braces (DC) to the Left and Right Cart Side Panels (DA and DB), as shown. YOU WILL NEED: Back view Note: Turn Cart assembly upside down. a. Place wheel (DG) and wheel spacer (#5) onto wheel axle (DH).
  • Page 10 ASSEMBLY INSTRUCTIONS PROPANE MODELS ONLY Assemble the Gas Tank Support (DJ) to the Left Cart Side Panel (DB). Close up Note: TWO PEOPLE required for this step. Ensure that the regulator hose (CC) (Propane models only) is hanging outside of cart. Position the lid and burner box assembly (A&B), onto the cart assembly (C), and assemble.
  • Page 11 ASSEMBLY INSTRUCTIONS RIGHT SIDE SHELF ASSEMBLY a. Insert the right side shelf assembly (EA and EB) into the two support brackets located on the right side of the burner box assembly (BA). Front, right side view b. Affix the right side shelf table (EA) to the burner box assembly (BA).
  • Page 12 ASSEMBLY INSTRUCTIONS LEFT SIDE SHELF ASSEMBLY a. Insert the left side shelf assembly (EC and ED) into the two support brackets located on the left side of the burner box assembly (BA). Front, left side view b. Affix the left side shelf table (EC) to the burner box assembly (BA).
  • Page 13 ASSEMBLY INSTRUCTIONS Place the flame tamers (BE) into the burner box (BA). Close up, front Close up, back Place the cooking grates (BF) into the burner box (BA).
  • Page 14 ASSEMBLY INSTRUCTIONS To assemble the warming rack (BG), insert the stationary wire into the holes on the sides of the lid. Insert warming rack pivot legs into the holes Stationary Wire on the inside of the burner box assembly (BA), as shown.
  • Page 15 ASSEMBLY INSTRUCTIONS PROPANE MODEL ONLY FOR NATURAL GAS MODEL, FOLLOW STEP 14. Position the 20lb propane tank into the notches located on the bottom of the left cart side panel (DB). Position the gas tank support (DJ) onto the tank collar. Attach the regulator coupling nut (CC) to the propane tank valve.
  • Page 16 ASSEMBLY INSTRUCTIONS NATURAL GAS MODELS ONLY Attach the natural gas hose (CC) to the manifold (CB), as shown. ATTENTION In order to complete installation of your natural gas BBQ a 1/2” or 3/8” adapter may be required to connect your BBQ’s natural gas hose to your home gas supply.
  • Page 17 Visit www.masterchefbbqs.com to complete product registration Master Chef® Customer Service 1-855-453-2150 Trileaf Distributions Trifeuil Toronto, Ontario M4S2B8...
