Master Chef T440 Assembly Manual page 7

ASSEMBLY INSTRUCTIONS
8
EC
ED
Front, left side view
EC
B2
B2
View, under left side shelf
BA
A1
A1
Back view
ED
CA
View, under left side shelf

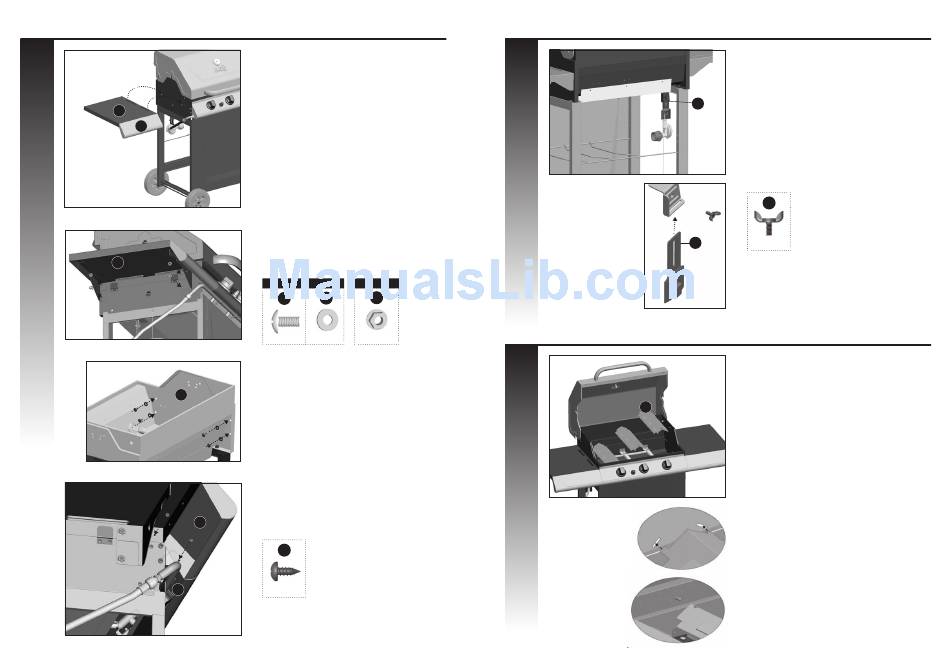

LEFT SIDE SHELF ASSEMBLY
a. Insert the left side shelf assembly hooks (EC
and ED) into the grooves located on the left
side of the burner box assembly (BA).
b. Affix the left side shelf table (EC) to the burner
box assembly (BA).
YOU WILL NEED:
B2
A1
1 6 3
X 4 X 4 X 4
c. Affix the left side shelf fascia (ED) to the
control panel (CA).
Securely tighten all hardware.
YOU WILL NEED:
4
X 2
10
ASSEMBLY INSTRUCTIONS
9
Back view
10
BE
PROPANE MODEL ONLY
Insert and fasten the tank retainer clip (EF) into
the tank retainer bracket, located at the top,
center of the left cart side panel (DB).
EF
YOU WILL NEED:
2
EF
X 1
Place the flame tamers (BE) into the burner box.
11
