SBC81206 PICMG 1.0 SBC User's Manual
CHAPTER 1
INTRODUCTION

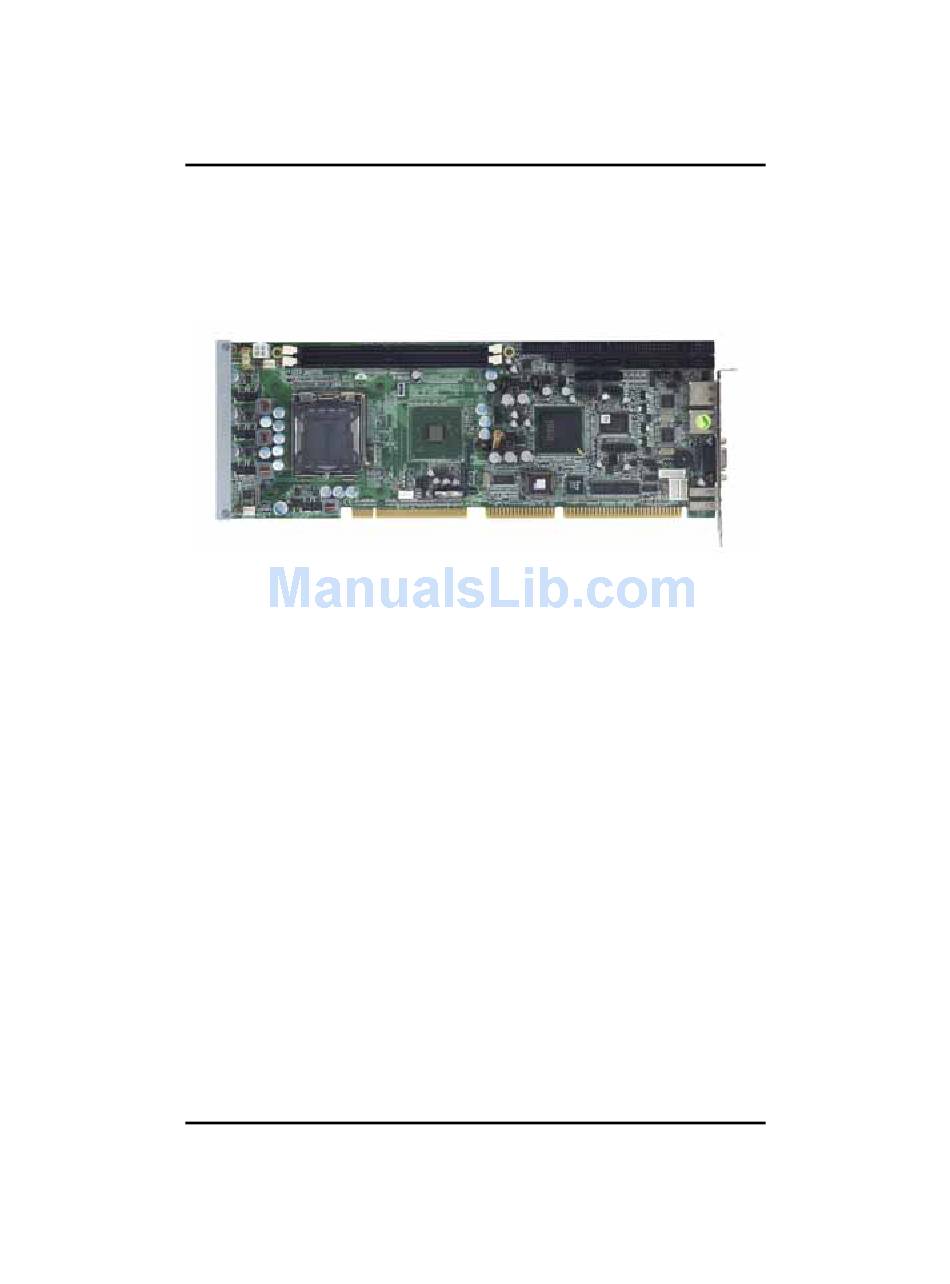

The SBC81206 PICMG 1.0 full-size Single Board Computer supports
® ® ® ® ®
™
Intel Core 2 Duo, Intel Celeron 400 Series, Intel Pentium 4
® ®
processor in the LGA775 Land Grid Array package or Intel Pentium
D processor (supports 775-Land package) at FSB 533/800 MT/s
®
(133/200 MHz). The board integrates chipsets Intel 945GC and
ICH7/7R (Optional) that deliver outstanding system performance
through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions.
There are two 240-pin unbuffered DIMM sockets for dual channel
DDR2-400/533/667 MHz memory, maximum memory capacity up to
2GB. It also features Gigabit/Fast Ethernet, four serial ATA channels
for total four Serial ATA hard drives at maximum transfer rate up to
300MB/sec, and six USB 2.0 high speed compliant.
Introduction
1
