2.4.14 Parallel Port Connector (PRINT1)

Print Port Connector [Default]
This board has a multi-mode parallel port to support:
1. Standard Mode:
IBM PC/XT, PC/AT and PS/2™ are compatible with bi-directional
parallel port.
2. Enhanced Mode:
Enhance parallel port (EPP) is compatible with EPP 1.7 and EPP 1.9
(IEEE 1284 compliant).
3. High Speed Mode:
Microsoft and Hewlett Packard extended capabilities port (ECP) is
IEEE 1284 compliant.

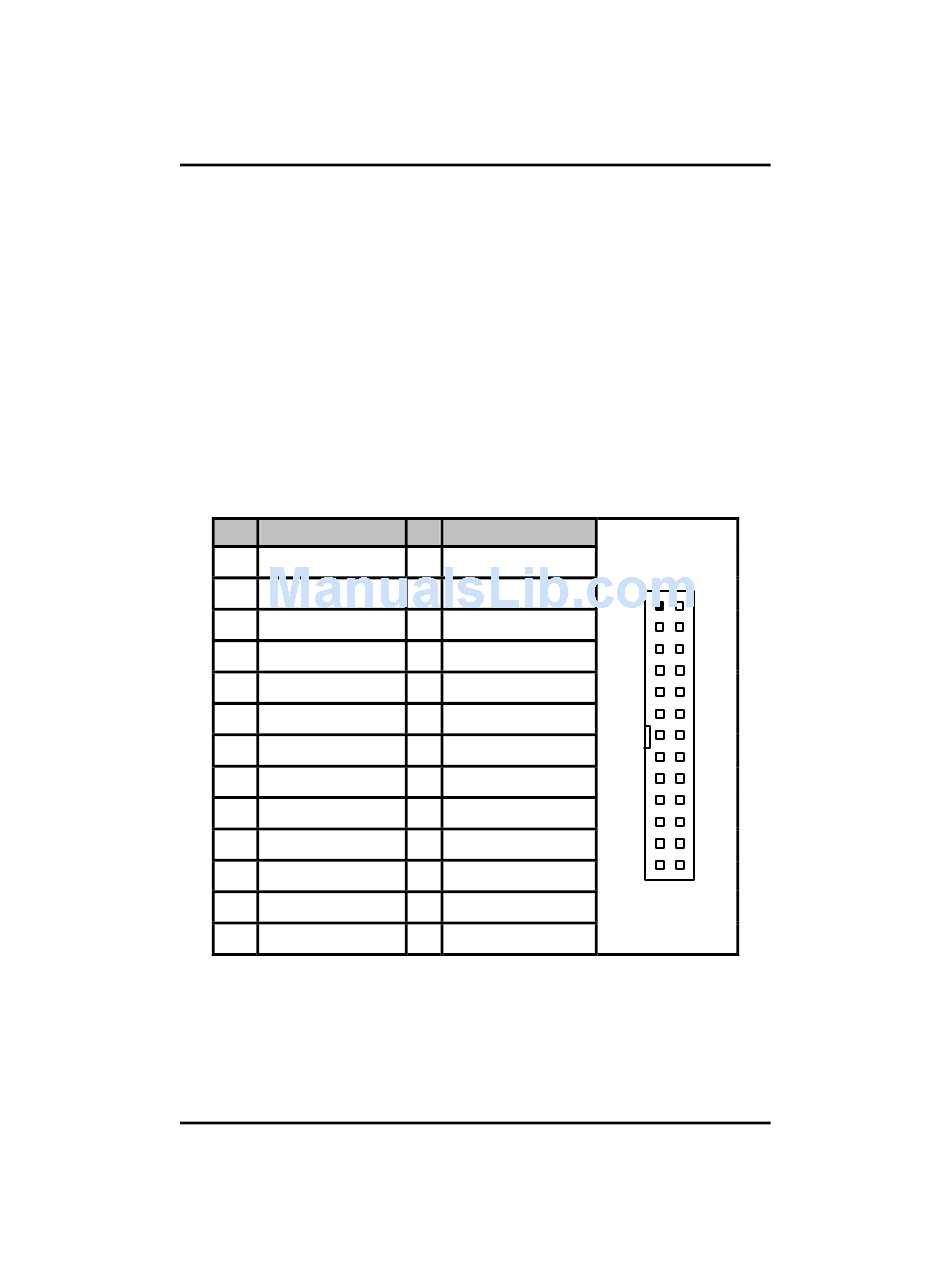

Pin Signal
1 Strobe#
3 Data 0
5 Data 1
7 Data 2
9 Data 3
11 Data 4
13 Data 5
15 Data 6
17 Data 7
19 Acknowledge#
21 Busy
23 Paper Empty#
25 Printer Select
Jumpers and Connectors
SBC81206 PICMG 1.0 SBC User's Manual
Pin Signal
2 Auto Form Feed#
4 Error#
6 Initialize#
8 Printer Select In#
10 GND
12 GND
14 GND
16 GND
18 GND
20 GND
22 GND
24 GND
26 GND
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
