System Control Panel

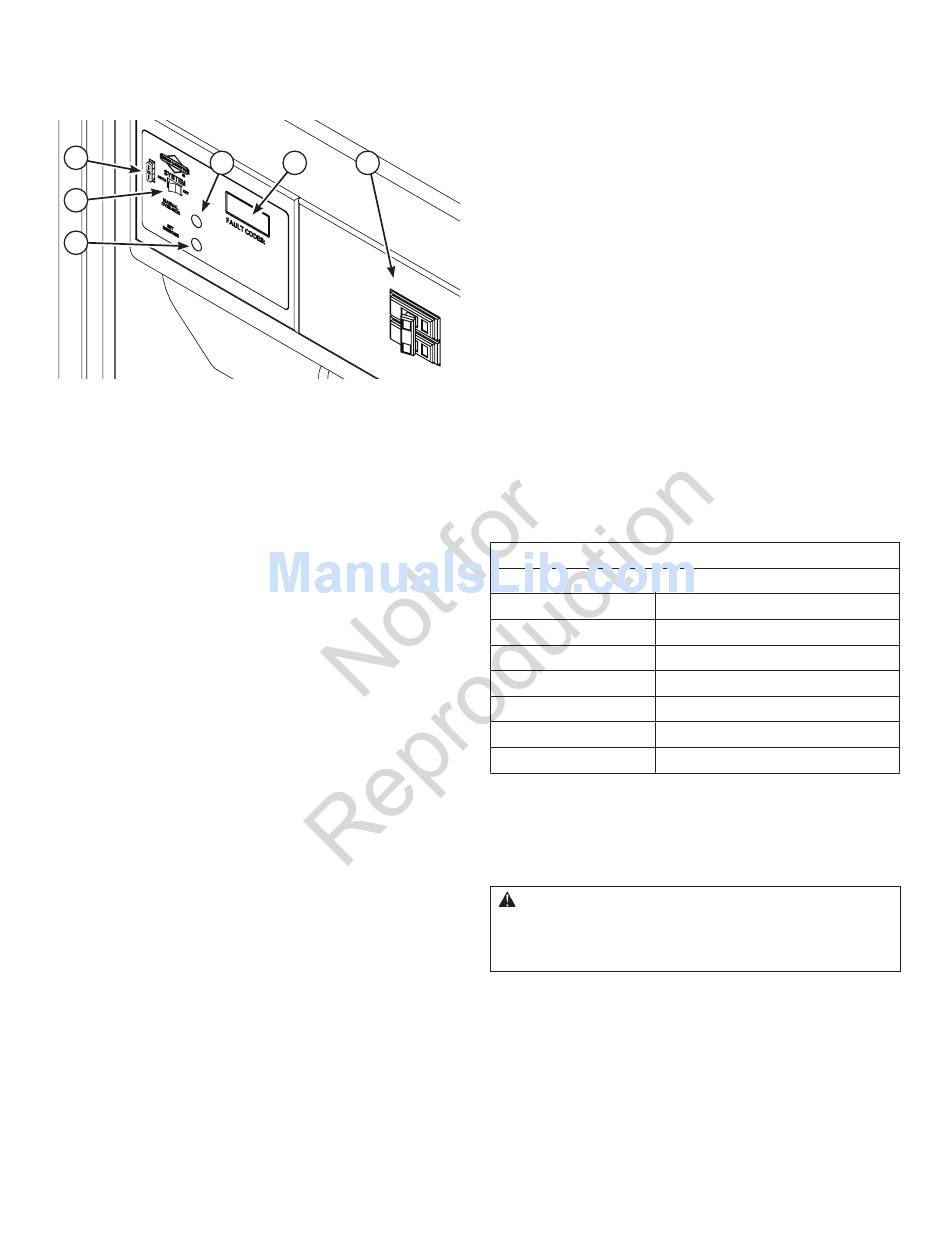

The home generator control panel, located inside the
generator housing, is shown below.
C
D
B
A
Brief descriptions of the controls used during installation are:
A - SET EXERCISE — Used to set the exercise cycle.
B - System Switch — Switches modes to OFF or AUTO.
C - 15 Amp Fuse —- Protects the DC control circuits.
D - MANUAL OVER-RIDE — Turns generator ON or OFF.
E - Digital Display — Displays running time and fault codes.
F - Circuit Breaker — Must be ON to supply power to the
transfer switch.
More information may be found in Controls in the
operator's manual.
System Switch
This two-position switch is the most important control on
the home generator and is used as follows:
• "AUTO" position is the normal operating position. If
a utility power outage is sensed, the system will start
the generator. When utility power is restored, lets the
engine stabilize internal temperatures, shuts off the
generator, and waits for the next utility power outage.
• "OFF" position turns off running generator, prevents
unit from starting and resets any detected faults.
15 Amp Fuse
Protects the home generator DC control circuits. If the fuse
has 'blown' (melted open) or was removed, the engine
cannot crank or start. Replace the fuse using only an
identical ATO 15A fuse. One spare fuse is supplied with the
unit. If fuse was blown or removed, you will need to reset
the exercise timer (see Setting Exercise Timer).
E F

Final Installation Considerations

Engine Oil
NOTICE Any attempt to crank or start the engine before it
has been properly serviced with the recommended oil will
result in equipment failure.
• Refer to Maintenance in the operator's manual and engine
manual for oil fill information.
• Damage to equipment resulting from failure to follow this
instruction will void engine and generator warranty.
The engine is shipped from the factory pre-run and filled
with synthetic oil (API SJ/CF 5W-30). This allows for system
operation in a wide range of temperature and climate
conditions. Before starting the engine, check oil level and
ensure that engine is serviced as described in the engine
operator's manual.
The use of synthetic oil does not alter the required oil change
intervals described in the engine operator's manual.
Battery
The installer must supply and install a valve-regulated
rechargeable starting battery. The starting battery MUST
conform to the specifications shown in this chart.
Battery Specifications
Volts 12 Volt DC
Amps (MIN) 600 CCA (cold cranking amps)
Type AGM
Terminal Hardware M6
Dimensions (MAX):
Width 5.5 inches (140mm)
Length 9.0 inches (230mm)
Height 8.25 inches (210mm)
Install the battery as described in Servicing the Battery in
the Maintenance section of the operator's manual. Installer
must connect battery charge wire (wire #13) to positive
battery terminal! Always make sure the NEGATIVE cable is
connected last.
WARNING Battery posts, terminals and related
accessories contain lead and lead compounds - chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
Fuel Supply System
Ensure that all fuel pipe connections are tight, secure and
without leaks.
Ensure that all gas line shutoff valves are OPEN and that
adequate fuel pressure is available whenever automatic
operation is desired.
