System Control Panel

The generating set control panel, located inside the
generating set housing, is shown below.
Brief descriptions of the controls used during
installation are:

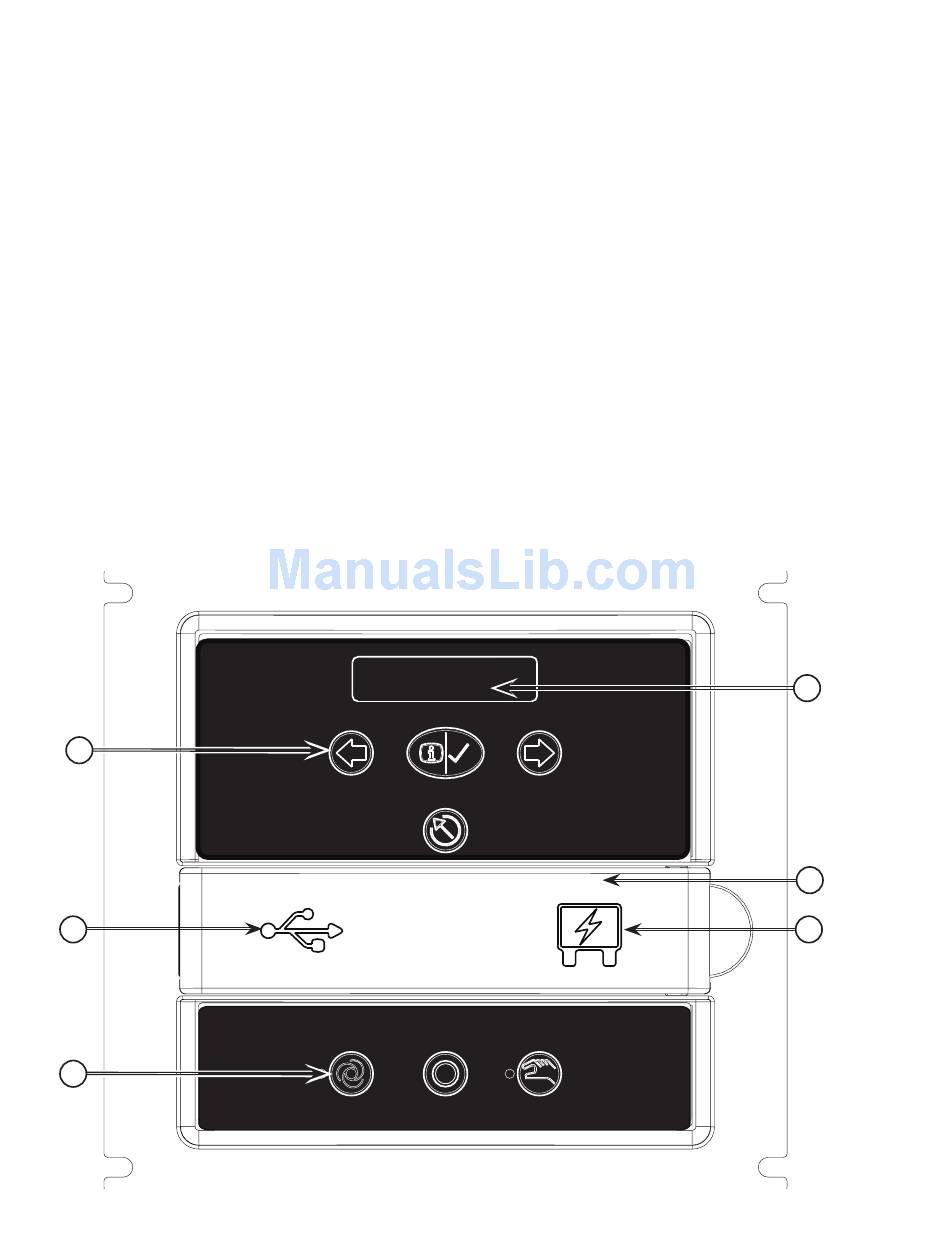

The generating set control board, located inside the
generating set, under the roof, is shown below. Brief
descriptions of the controls used during installation are:
A - Menu/Programming Navigation Buttons — See
Menu section for details
B - USB Port — Authorized Dealer Service Use Only
C - Generating set Operation Control Buttons —
•"AUTO" Normal operating position. Press and
hold button to put unit into Automatic mode. If
an utility power outage is sensed, the system
will start the generating set. When utility power
is restored, auto lets the engine stabilize internal
temperatures, shuts off the generating set, and
waits for the next utility outage.
•"OFF" Turns off running generating set, prevents
unit from starting, and resets any detected faults.
OFF must be pressed and held for more than 5
seconds in order to reset service codes.
A
B
C
•"MANUAL" Used to manually start the generating
set.
"AUTO" LED — LED will light when unit is placed
into Auto mode. LED will blink if exercise cycle is
not set or set to OFF.
D - 15 Amp Fuse — Protects the generating set DC
control circuits. If the fuse has 'blown' (melted
open) or was removed, the engine cannot crank
or start. Replace the fuse using only an identical
ATO 15A fuse. One spare fuse is supplied with
the unit.
E - Cover — This protective cover must be opened to
access the fuse and the USB port.
F - Digital Display — Displays generating set mode,
menu options, service codes, and service engine
indicators
More information may be found in Controls in the
operator's manual.
