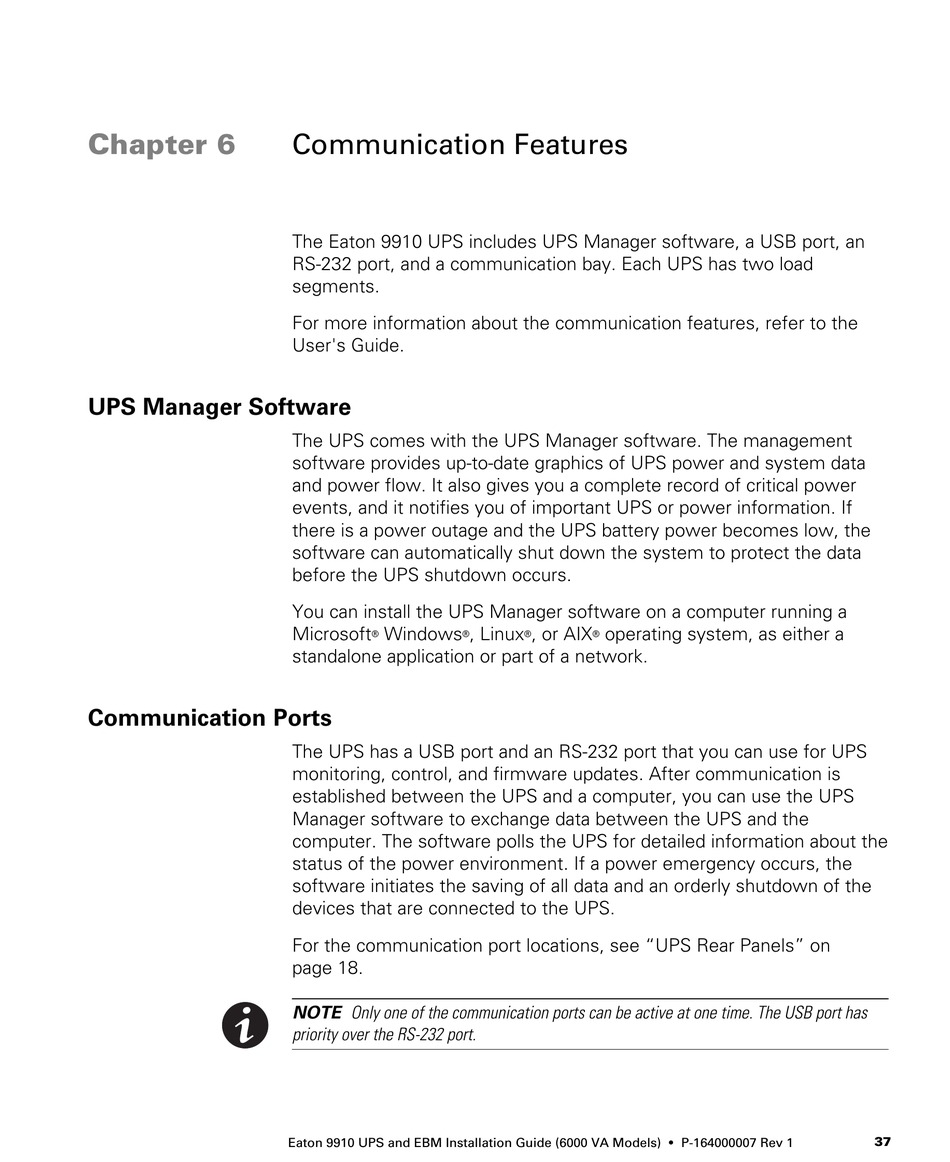

Chapter 6

UPS Manager Software

Communication Ports

Communication Features

The Eaton 9910 UPS includes UPS Manager software, a USB port, an
RS-232 port, and a communication bay. Each UPS has two load
segments.
For more information about the communication features, refer to the
User's Guide.
The UPS comes with the UPS Manager software. The management
software provides up-to-date graphics of UPS power and system data
and power flow. It also gives you a complete record of critical power
events, and it notifies you of important UPS or power information. If
there is a power outage and the UPS battery power becomes low, the
software can automatically shut down the system to protect the data
before the UPS shutdown occurs.
You can install the UPS Manager software on a computer running a
Microsoft Windows
® ®
standalone application or part of a network.
The UPS has a USB port and an RS-232 port that you can use for UPS
monitoring, control, and firmware updates. After communication is
established between the UPS and a computer, you can use the UPS
Manager software to exchange data between the UPS and the
computer. The software polls the UPS for detailed information about the
status of the power environment. If a power emergency occurs, the
software initiates the saving of all data and an orderly shutdown of the
devices that are connected to the UPS.
For the communication port locations, see "UPS Rear Panels" on
page 18.
NOTE Only one of the communication ports can be active at one time. The USB port has
priority over the RS-232 port.
Eaton 9910 UPS and EBM Installation Guide (6000 VA Models)
, Linux , or AIX operating system, as either a
® ®
S
P-164000007 Rev 1
37
