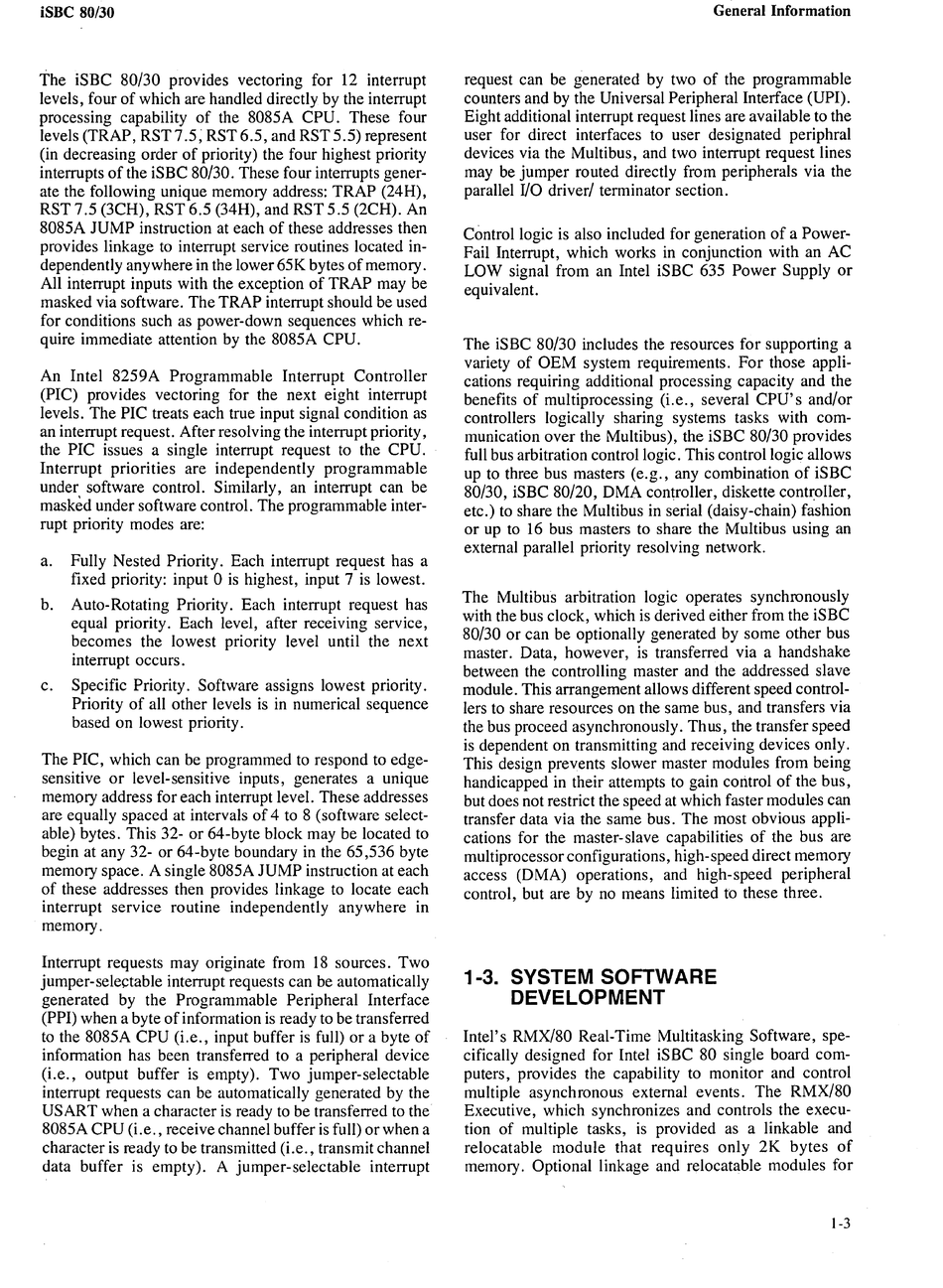

iSBC 80/30
The iSBC 80/30 provides vectoring for 12 interrupt
levels, four of which are handled directly by the interrupt
processing capability of the 8085A CPU. These four
levels (TRAP, RST 7.5; RST 6.5, and RST 5.5) represent
(in decreasing order of priority) the four highest priority
interrupts of the iSBC 80/30. These four interrupts gener-
ate the following unique memory address: TRAP (24H),
RST 7.5 (3CH), RST 6.5 (34H), and RST 5.5 (2CH). An
8085A JUMP instruction at each of these addresses then
provides linkage to interrupt service routines located in-
dependently anywhere in the lower65K bytes of memory.
All interrupt inputs with the exception of TRAP may be
masked via software. The TRAP interrupt should be used
for conditions such as power-down sequences which re-
quire immediate attention by the 8085A CPU.
An Intel 8259A Programmable Interrupt Controller
(PIC) provides vectoring for the next eight interrupt
levels. The PIC treats each true input signal condition as
an interrupt request. After resolving the interrupt priority,
the PIC issues a single interrupt request to the CPU.
Interrupt priorities are independently programmable
under software control. Similarly, an interrupt can be
masked under software control. The programmable inter-
rupt priority modes are:
a.
Fully Nested Priority. Each interrupt request has a
fixed priority: input 0 is highest, input 7 is lowest.
b.
Auto-Rotating Priority. Each interrupt request has
equal priority. Each level, after receiving service,
becomes the lowest priority level until the next
interrupt occurs.
c.
Specific Priority. Software assigns lowest priority.
Priority of all other levels is in numerical sequence
based on lowest priority.
The PIC, which can be programmed to respond to edge-
sensitive or level-sensitive inputs, generates a unique
memory address for each interrupt level. These addresses
are equally spaced at intervals of 4 to 8 (software select-
able) bytes. This 32- or 64-byte block may be located to
begin at any 32- or 64-byte boundary in the 65,536 byte
memory space. A single 8085A JUMP instruction at each
of these addresses then provides linkage to locate each
interrupt service routine independently anywhere in
memory.
Interrupt requests may originate from 18 sources. Two
jumper-selectable interrupt requests can be automatically
generated by the Programmable Peripheral Interface
(PPI) when a byte of information is ready to be transferred
to the 8085A CPU (i.e., input buffer is full) or a byte of
information has been transferred to a peripheral device
(i.e., output buffer is empty). Two jumper-selectable
interrupt requests can be automatically generated by the
USART when a character is ready to be transferred to the
8085A CPU (i.e., receive channel buffer is full) or when a
character is ready to be transmitted (i.e., transmit channel
data buffer is empty). A jumper-selectable interrupt
General Information
request can be generated by two of the programmable
counters and by the Universal Peripheral Interface (UPI).
Eight additional interrupt request lines are available to the
user for direct interfaces to user designated periphral
devices via the Multibus, and two interrupt request lines
may be jumper routed directly from peripherals via the
parallel I/O driver/ terminator section.
Control logic is also included for generation of a Power-
Fail Interrupt, which works in conjunction with an AC
LOW signal from an Intel iSBC 635 Power Supply or
equivalent.
The iSBC 80/30 includes the resources for supporting a
variety of OEM system requirements. For those appli-
cations requiring additional processing capacity and the
benefits of multiprocessing (i.e., several CPU's and/or
controllers logically sharing systems tasks with com-
munication over the Multibus), the iSBC 80/30 provides
full bus arbitration control logic . This control logic allows
up to three bus masters (e.g., any combination of iSBC
80/30, iSBC 80/20, DMA controller, diskette
cont~oller,
etc.) to share the Multibus in serial (daisy-chain) fashion
or up to 16 bus masters to share the Multibus using an
external parallel priority resolving network.
The Multibus arbitration logic operates synchronously
with the bus clock, which is derived either from the iSBC
80/30 or can be optionally generated by some other bus
master. Data, however, is transferred via a handshake
between the controlling master and the addressed slave
module. This arrangement allows different speed control-
lers to share resources on the same bus, and transfers via
the bus proceed asynchronously. Thus, the transfer speed
is dependent on transmitting and receiving devices only.
This design prevents slower master modules from being
handicapped in their attempts to gain control of the bus,
but does not restrict the speed at which faster modules can
transfer data via the same bus. The most obvious appli-
cations for the master-slave capabilities of the bus are
mUltiprocessor configurations, high-speed direct memory
access (DMA) operations, and high-speed peripheral
control, but are by no means limited to these three.
1-3. SYSTEM SOFTWARE
DEVELOPMENT
Intel's RMX/80 Real-Time Multitasking Software, spe-
cifically designed for Intel iSBC 80 single board com-
puters, provides the capability to monitor and control
mUltiple asynchronous external events. The RMX/80
Executive, which synchronizes and controls the execu-
tion of multiple tasks, is provided as a linkable and
relocatable module that requires only 2K bytes of
memory. Optional linkage and relocatable modules for
1-3
