Product Specification
Power Supply: AC 100V-240V, 50/60 Hz
Power consumption:87W max. at full output
Light source: 72 LEDs: 18 x 750 mA red

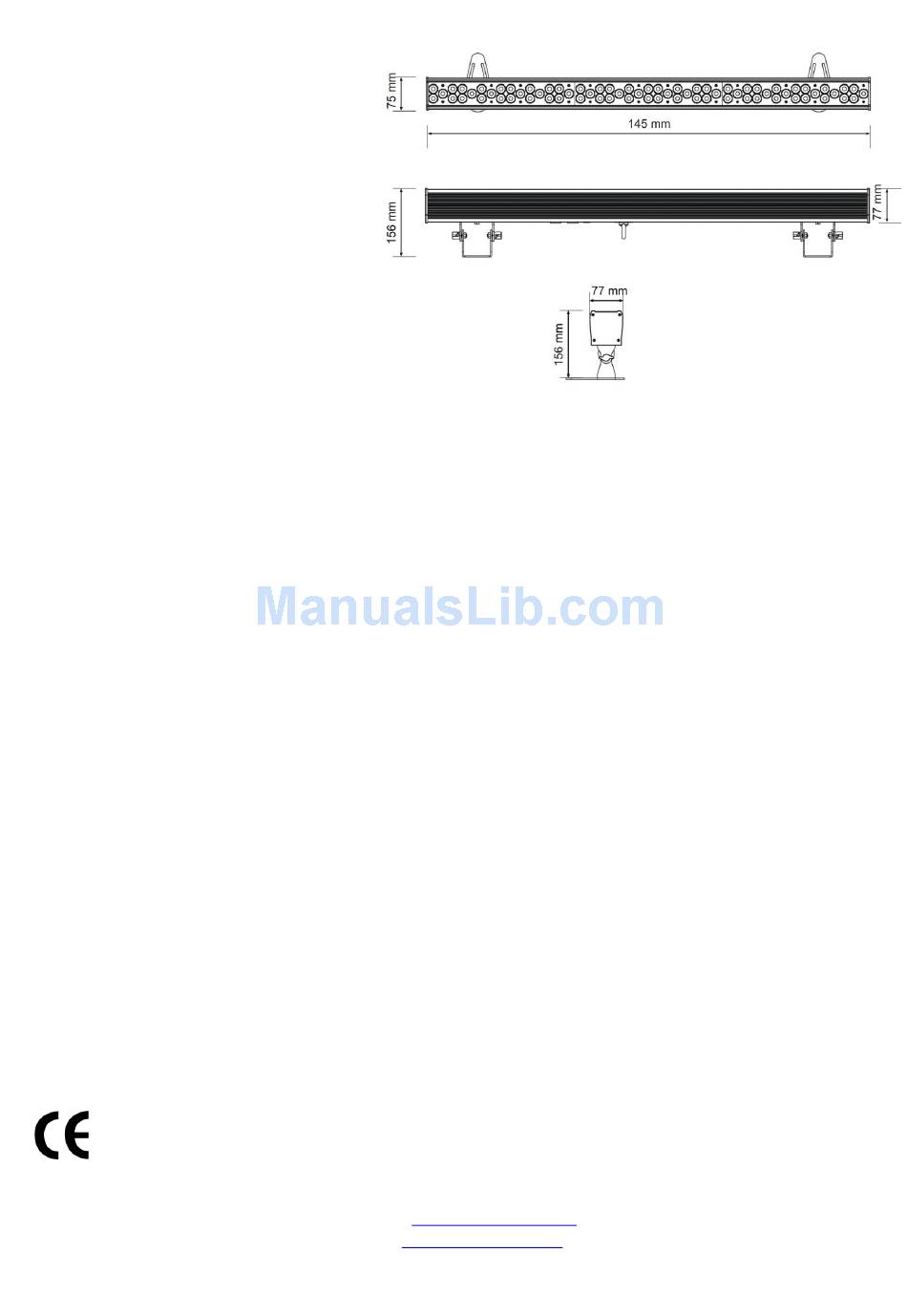

Dimensions: 990 x 156 x 75 mm (LxWxH)
Weight: 5 kg
3 and 5 Pole XLR In and Out
Neutrik Powercon Input and Output
25 x 6° lenses, ideal for Wallwash
Multivoltage (100-240V)
Max. Distance: 20m (25x 6° lens)
Colour Range: 16.7 million additive RGB colours
On-board: Display for Auto and Custom control
Control protocol: DMX 512
Control personality: TOUR, BLOCK1, BLOCK2, ARC1, ARC1+D, ARC2, ARC2+D, ARC2+S, HSV
Dimmer: 0-100%+ Strobe: 0-20Hz
3, 3, 4, 5, 6, 7, 9, 13 or 15-channel LED wash light (with ID addressing)
8 different DMX Operating modes
RGBWA colour mixing with or without DMX controller
Colour temperature presets (3,200 K ~ 10,000 K)
Built-in automated programs via DMX
Recall custom programs via DMX
High-power, 2 W ~ 3 W (750 mA ~ 1,000 mA) LEDs
LED display with lock-out feature
Beam angle: 25 x 6° (15°, 30°, 50° optional)
Lumen: 2180 lm
Efficacy: 30.8 lm/W
Lux: 4700+ @ 2 m (15° lens)
Operating modes:
13-channel (TOUR): Master Dimmer, RGBWA, Color Macro, Strobe, Auto & Custom Programs,
Auto Speed Adjustment, Dimmer Speed, ID Address Selection, Block selection

9-channel (BLOCK1)

15-channel (BLOCK2)

3-channel (ARC1): RGB

4-channel (ARC1+D):Master Dimmer, RGB

5-channel (ARC2):RGBWA

6-channel (ARC2+D): Master Dimmer, RGBWA

7-channel (ARC2+S): Master Dimmer, RGBWA, Strobe

3-channel (HSV): Hue, Saturation, Value
Additional Features
LCD display with password protection
Double-bracket doubles as floor stand
Design and product specifications are subject to change without prior notice.
18 x 1.000 mA green
18 x 1.000mA blue
9 x 1.000 mA white
9 x 1.000 mA amber
Website:
Email:
www.Showtec.info
service@highlite.nl
