- Page 1 MANUAL ENGLISH Club Par 18-1 RGB Ordercode: 42652 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Club Par 18-1 RGB Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside..................................7 Backside .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Club Par 18-1 RGB IEC power cable (1,5 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Club Par 18-1 RGB • The user is responsible for correct positioning and operating of the Club Par 18-1 RGB. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Club Par 18-1 RGB The Club Par 18-1 RGB can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Club Par 18-1 RGB Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

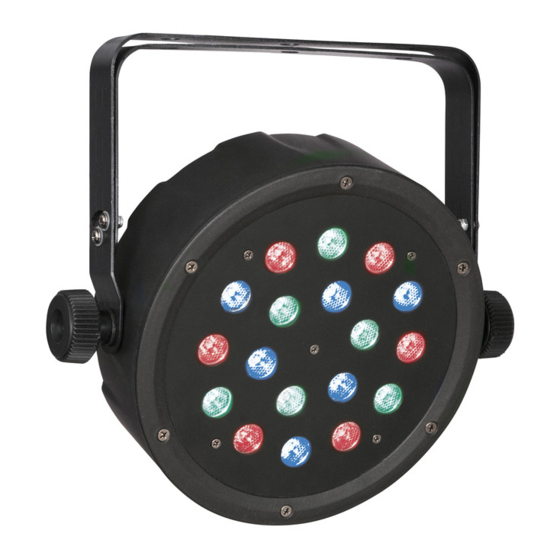

Club Par 18-1 RGB Description of the device Features The Club Par 18-1 RGB is an compact light effect with high output and great effects. Ideal solution for small clubs and mobile DJs Compact size Sound Control ... -
Page 9: Backside
09) IEC power connector 100-240V + Fuse F0,5AL/250V Installation Remove all packing materials from the Club Par 18-1 RGB. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
Club Par 18-1 RGB Control Modes There are 5 modes: • Built-in programs • Manual Mode • Static Color • Sound-controlled • DMX-512 (3CH or 8CH) One Club Par (Built-in programs, Static Color Mode and Manual Mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 11: Fixture Linking
Club Par 18-1 RGB Multiple Club Pars DMX Set Up Fig. 03 Note : Link all cables before connecting electric power Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. -
Page 12: Control Panel
Club Par 18-1 RGB The Club Par 18-1 RGB can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LED display MODE button C) SETUP button D) UP button DOWN button Fig. -
Page 13: Menu Overview
Club Par 18-1 RGB Menu Overview Ordercode: 42652... -
Page 14: Main Menu Options
Club Par 18-1 RGB Main Menu Options DMX-512 Mode Channel Mode Program Speed Built-in programs Sound-controlled Mode Static Color Mode Strobe Green Blue Mode Led On/Off Temperature Version Reset 1. DMX-512 Mode With this menu, you can set the DMX address and select the desired channel mode. -
Page 15: Speed
Club Par 18-1 RGB 3. Speed 01) Press the MODE button until the display shows 02) Press the SETUP button to open the submenu, then press the UP/DOWN buttons to adjust the run speed of the built-in programs. The adjustment range is between , 00-99 (from fast to slow). -
Page 16: Node
Club Par 18-1 RGB 11. Node With this menu, you can set the dimmer curve of your Club Par. 01) Press the MODE button until the display shows 02) Press the SETUP button to open the submenu, then press the UP/DOWN buttons to toggle between... -
Page 17: Dmx Channels
Club Par 18-1 RGB DMX Channels 3 channels Channel 1 – Red 0-255 Gradual adjustment Red, from 0-100% Channel 2 – Green 0-255 Gradual adjustment Green, from 0-100% Channel 3 – Blue 0-255 Gradual adjustment Blue, from 0-100% 8 channels Channel 1 –... -
Page 18: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Club Par 18-1 RGB requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 19: No Response To Dmx
Club Par 18-1 RGB No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 20: Product Specifications
Club Par 18-1 RGB Product Specifications Model: Showtec Club Par 18-1 RGB Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 20W (full output) Drive Current: 270mA Refresh rate 1200Hz DMX linking: 30pcs Protection rate: IP-20 Fuse: F0,5AL/250V Dimensions: 290 x 270 x 73 mm (LxWxH) -
Page 21: Dimensions
Club Par 18-1 RGB Dimensions Ordercode: 42652... -
Page 22: Notes
Club Par 18-1 RGB Notes Ordercode: 42652... - Page 23 Club Par 18-1 RGB Ordercode: 42652...
- Page 24 ©2015 Showtec...
