Removing the microprocessor 2 air baffle

46
System x3650 M2 Type 7947: Installation and User's Guide
Downloaded from www.Manualslib.com
When you work with some optional devices, you must first remove the

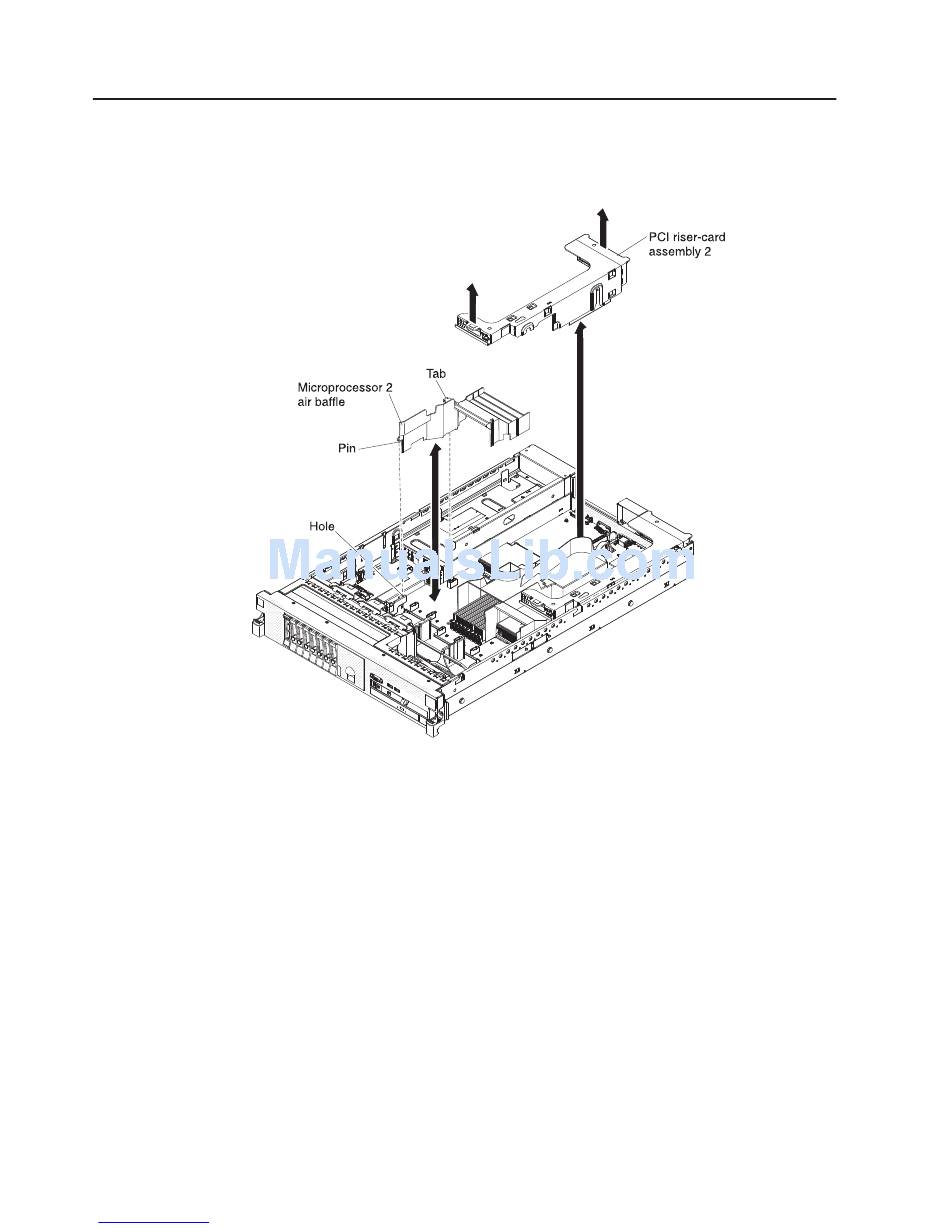

microprocessor 2 air baffle to access certain components. The following illustration
shows how to remove the microprocessor 2 air baffle.
To remove the microprocessor 2 air baffle, complete the following steps:
1. Read the safety information that begins on page vii and "Installation guidelines"
on page 36.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see "Turning off the server" on page 21).
3. Remove the cover (see "Removing the cover" on page 43).
4. Remove PCI riser-card assembly 2 (see "Removing a PCI riser-card assembly"
on page 44).
5. Grasp the top of the air baffle and lift the air baffle out of the server.
Attention: For proper cooling and airflow, replace all air baffles before you
turn on the server. Operating the server with any air baffle removed might
damage server components.
