68
System x3650 M2 Type 7947: Installation and User's Guide
Downloaded from www.Manualslib.com

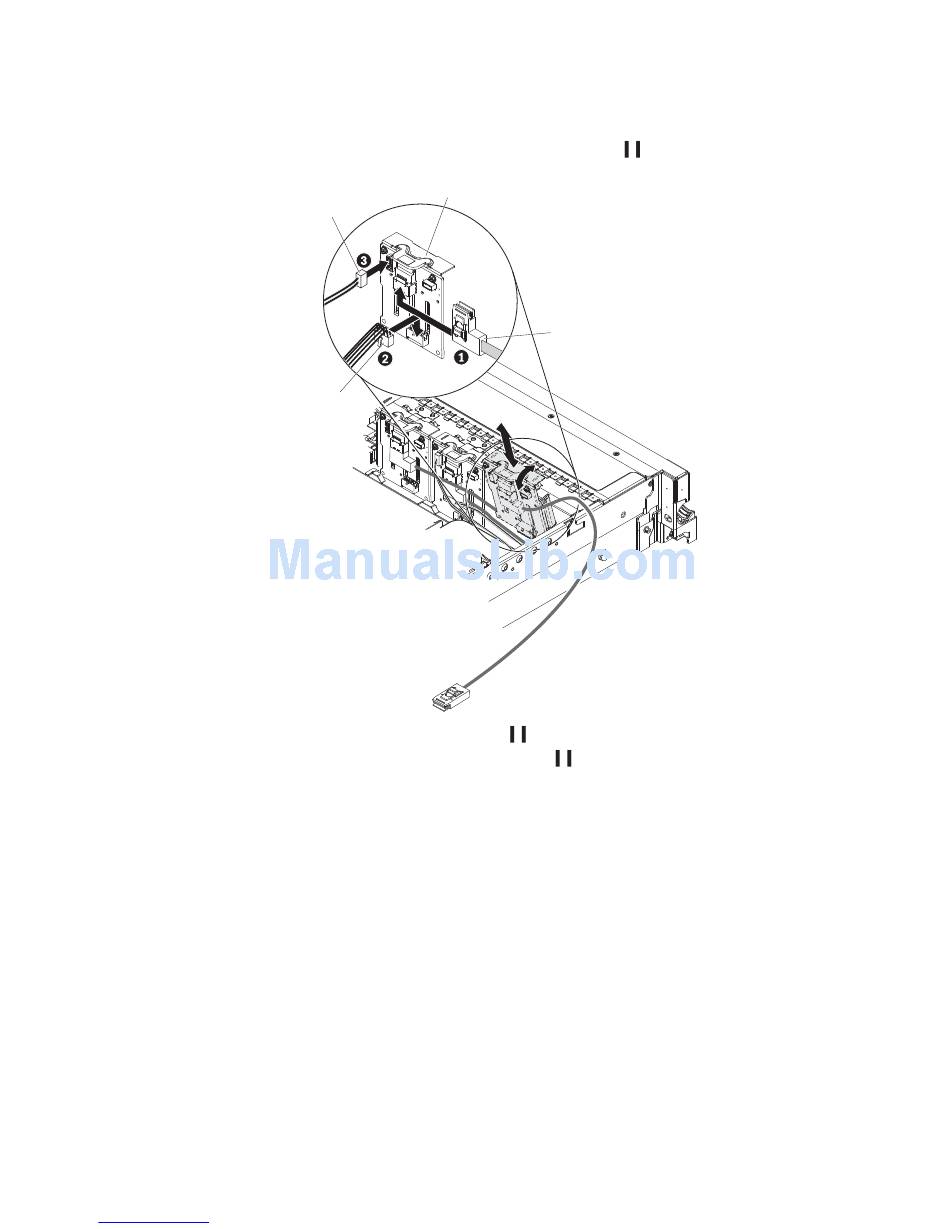

13. Install hard disk drive backplane 1:
a. Connect the right-angle end of the longer SAS signal cable that comes with
the option kit to hard disk drive backplane 1 1 .
Configuration
cable
Power
cable
b. Reconnect the power cable 2 to backplane 1.
c. Reconnect the configuration cable 3 to backplane 1.
d. Angle the backplane and place the bottom edge into the slots for
backplane 1 on the chassis.
e. Rotate the backplane upright so that the bracket goes underneath the latch
and tabs on the chassis and is engaged into the slots on the backplane
bracket.
14. Make sure that the configuration cable is connected to all three backplanes.
manuals search engine
Hard disk drive
backplane 1
SAS signal
cable
