Moving the SAS controller retention bracket

Downloaded from www.Manualslib.com

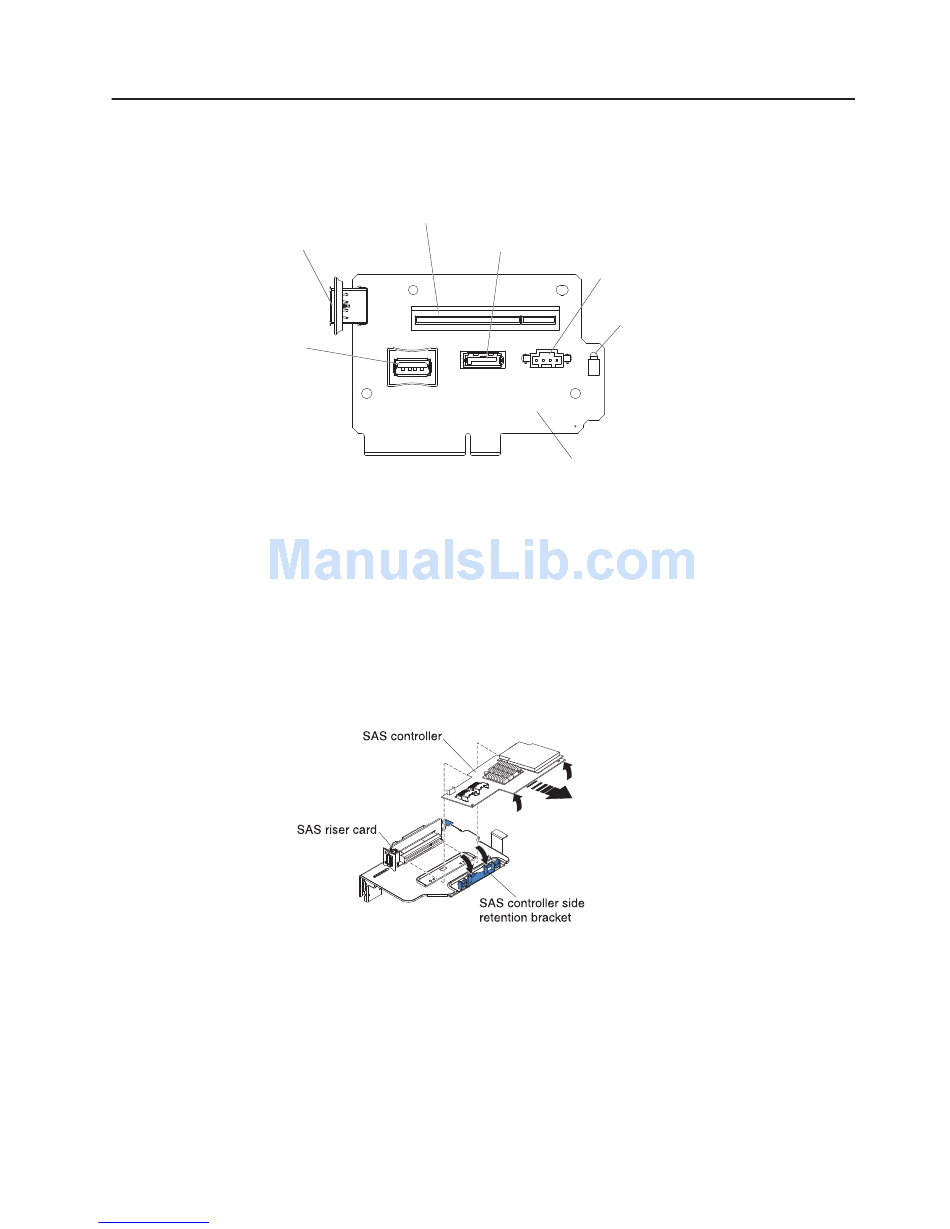

Note: This procedure applies only to servers that have the following SAS riser
card.
PCI Express SAS
controller connector
USB hypervisor
connector
USB
tape
signal
To move the SAS controller side retention bracket to a different position to
accommodate the dimensions of the current SAS ServeRAID controller, complete
the following steps:
1. Read the safety information that begins on page vii and "Installation guidelines"
on page 36.
2. Make sure that the server and all peripheral devices are turned off and that the
power cords and all external cables are disconnected.
3. Remove the SAS riser-card assembly from the server (see "Removing the SAS
riser-card and controller assembly" on page 91).
4. Remove the ServeRAID controller from the SAS riser card.
