Installing a USB hypervisor memory key

Downloaded from www.Manualslib.com
Hypervisor is a virtualization platform that enables multiple operating systems to run
on a host computer at the same time. Support for hypervisor is available with the
purchase and installation of an optional USB hypervisor memory key, with
embedded hypervisor software.
To install the USB hypervisor memory key, complete the following steps:
1. Read the safety information that begins on page vii and "Installation guidelines"
on page 36.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see "Turning off the server" on page 21).
3. Remove the cover (see "Removing the cover" on page 43).

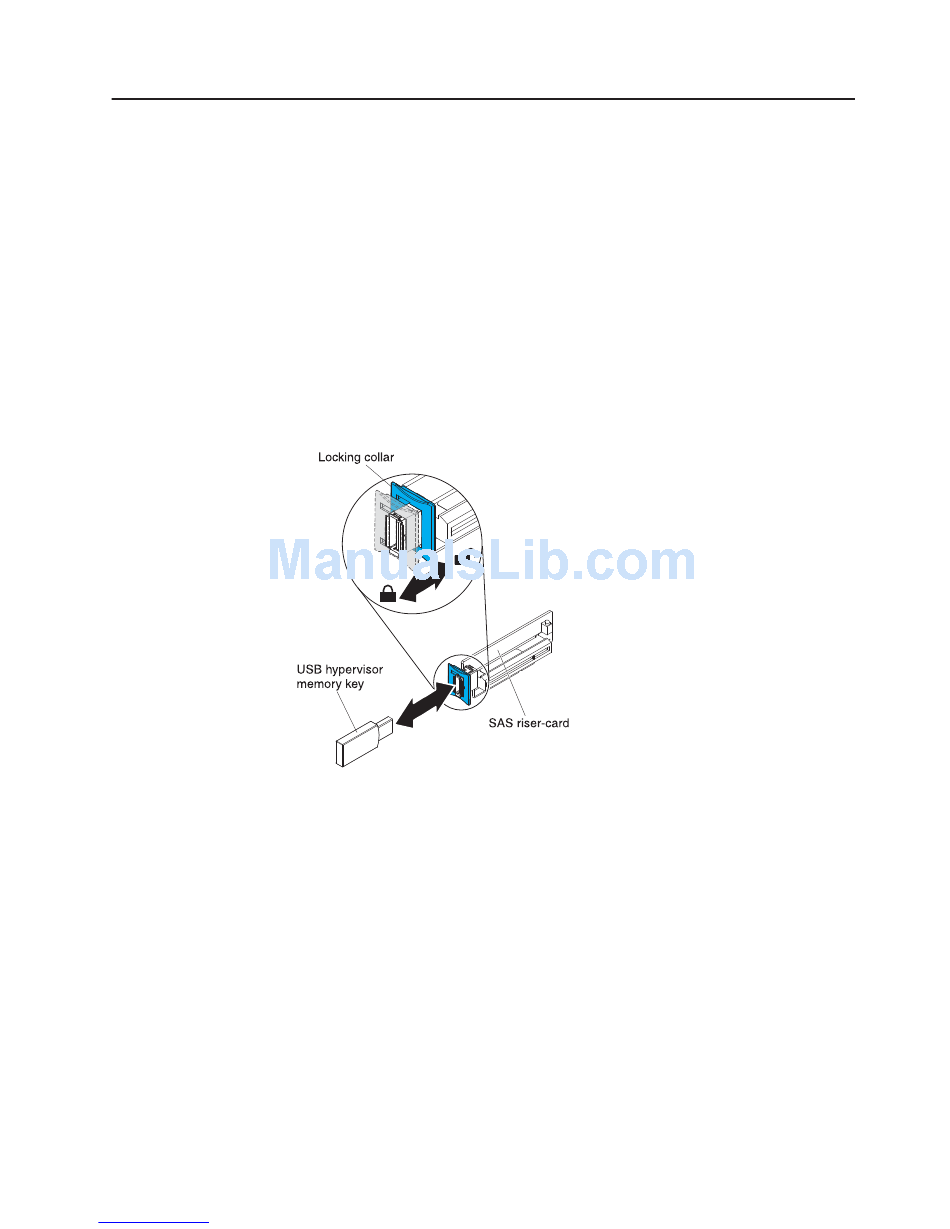

4. Locate the SAS riser-card assembly, which is near the left front corner of the
server.
5. Push the blue locking collar on the USB hypervisor connector on the SAS riser
card toward the SAS riser card (the unlocked position).
6. Insert the hypervisor memory key into the USB hypervisor connector.
7. Slide the blue lock on the USB hypervisor connector forward toward the
hypervisor memory key as far as it will go, to secure the memory key in
position.
If you have other devices to install or remove, do so now. Otherwise, go to
"Completing the installation" on page 106.
Note: You must configure the server to boot from the hypervisor USB drive. See
Chapter 3, "Configuring the server," on page 111 for information about enabling the
embedded hypervisor.
