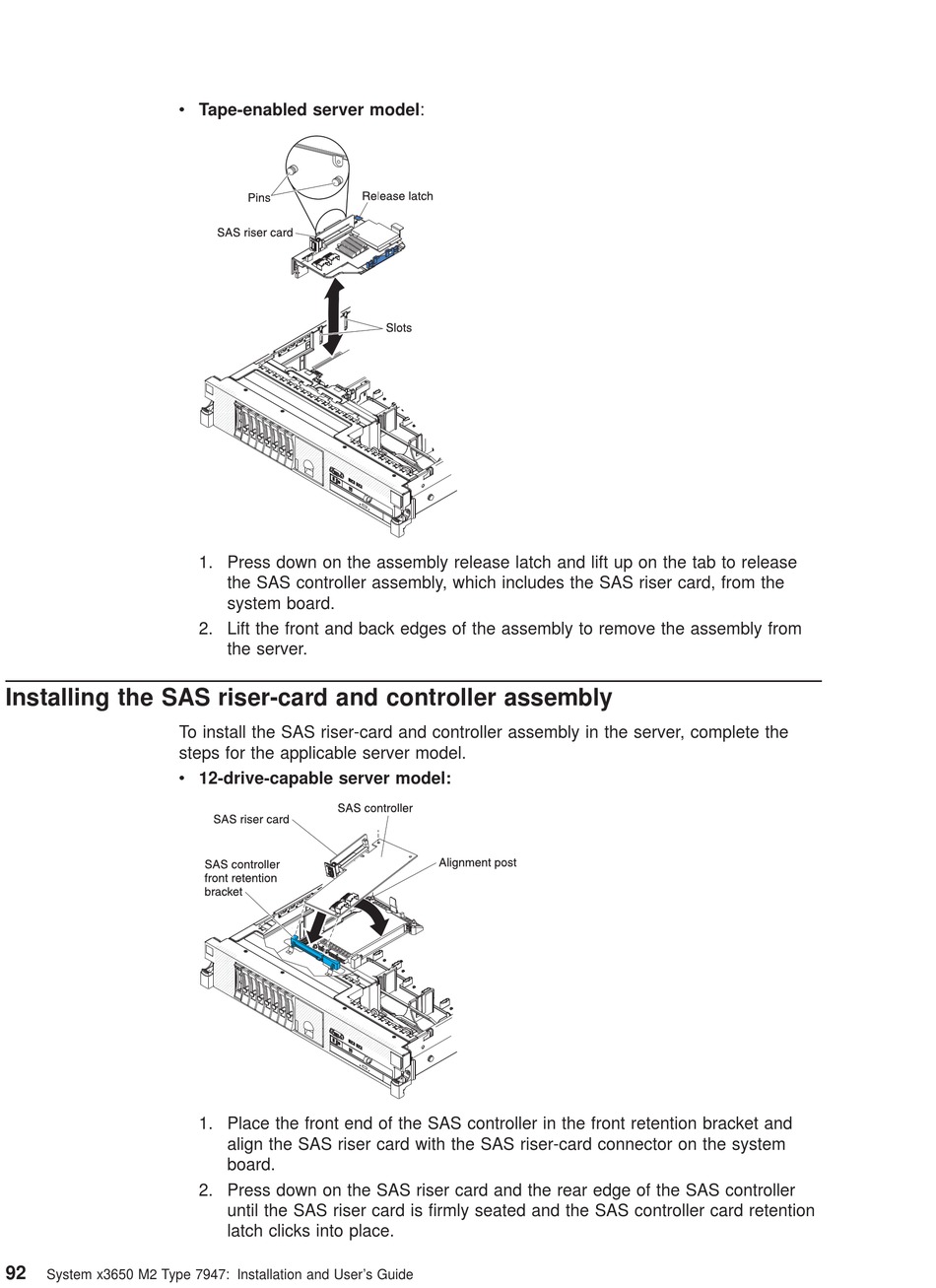

Installing the SAS riser-card and controller assembly

92
System x3650 M2 Type 7947: Installation and User's Guide
Downloaded from www.Manualslib.com
v Tape-enabled server model:
1. Press down on the assembly release latch and lift up on the tab to release
the SAS controller assembly, which includes the SAS riser card, from the
system board.
2. Lift the front and back edges of the assembly to remove the assembly from
the server.
To install the SAS riser-card and controller assembly in the server, complete the
steps for the applicable server model.
v 12-drive-capable server model:
1. Place the front end of the SAS controller in the front retention bracket and
align the SAS riser card with the SAS riser-card connector on the system
board.
2. Press down on the SAS riser card and the rear edge of the SAS controller
until the SAS riser card is firmly seated and the SAS controller card retention
latch clicks into place.
