Installing a ServeRAID SAS controller on the SAS riser card

94
System x3650 M2 Type 7947: Installation and User's Guide
Downloaded from www.Manualslib.com
To remove the SAS controller from a SAS riser card, complete the following steps:
1. Read the safety information that begins on page vii and "Installation guidelines"
on page 36.
2. Turn off the server and peripheral devices and disconnect all power cords and
external cables (see "Turning off the server" on page 21).
3. Remove the cover (see "Removing the cover" on page 43).
4. Locate the SAS riser-card and controller assembly near the left-front corner of
the server.
5. Disconnect the SAS signal cables from the connectors on the SAS controller
and note their locations.
6. Remove the SAS controller assembly, which includes the SAS riser card, from
the server (see "Removing the SAS riser-card and controller assembly" on page
91).

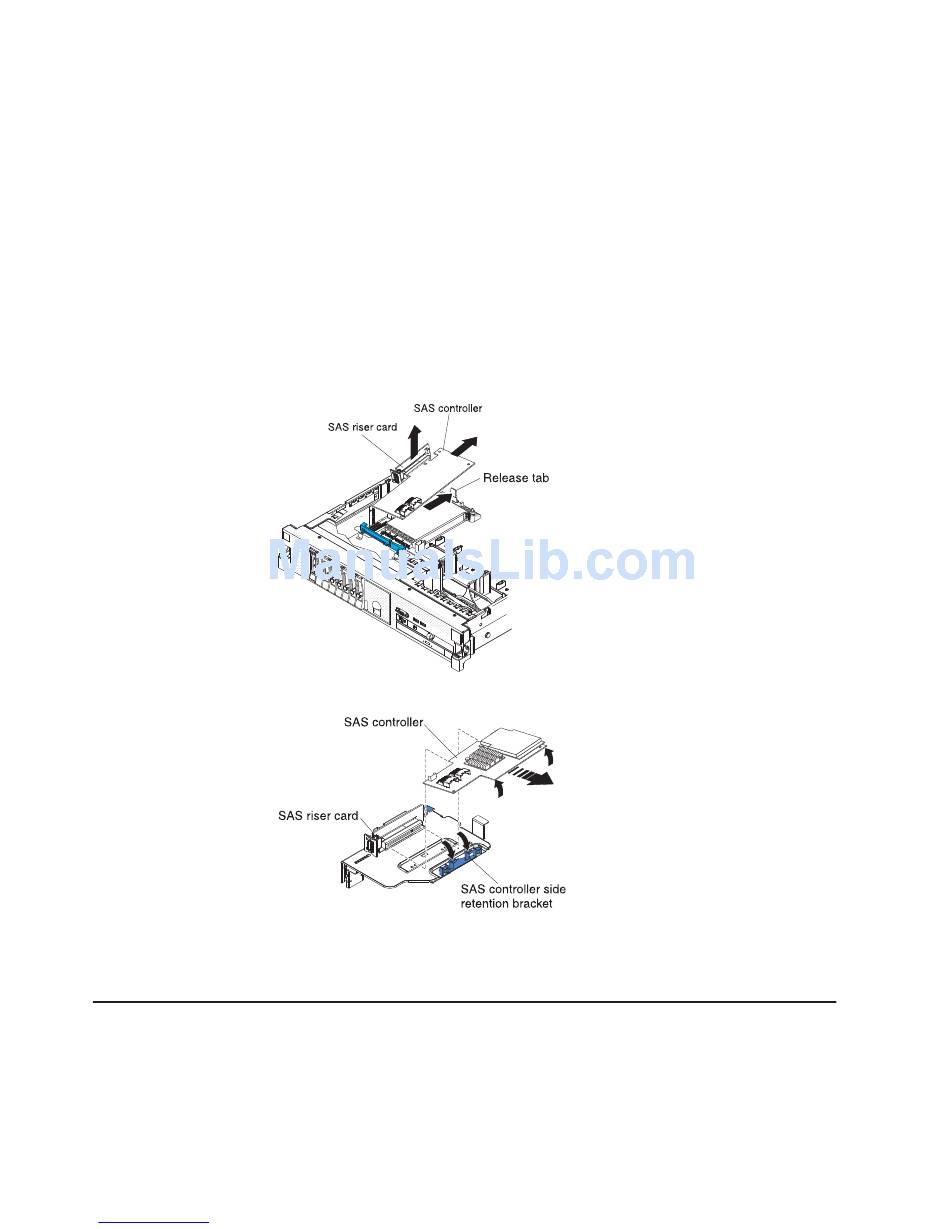

12-drive-capable server model:
Tape-enabled server model:
7. Pull the SAS controller horizontally out of the connector on the SAS riser card.
8. If you are replacing the SAS controller with another supported SAS controller,
continue with "Installing a ServeRAID SAS controller on the SAS riser card."
Important: If you have installed a SAS expander card in a 12-drive-capable server,
the SAS controller is installed in a PCI riser-card assembly and is installed and
removed the same way as any other PCI adapter. Do not use the instructions in this
topic; use the instructions in "Installing a PCI adapter" on page 51 and "Removing a
PCI adapter" on page 54.
