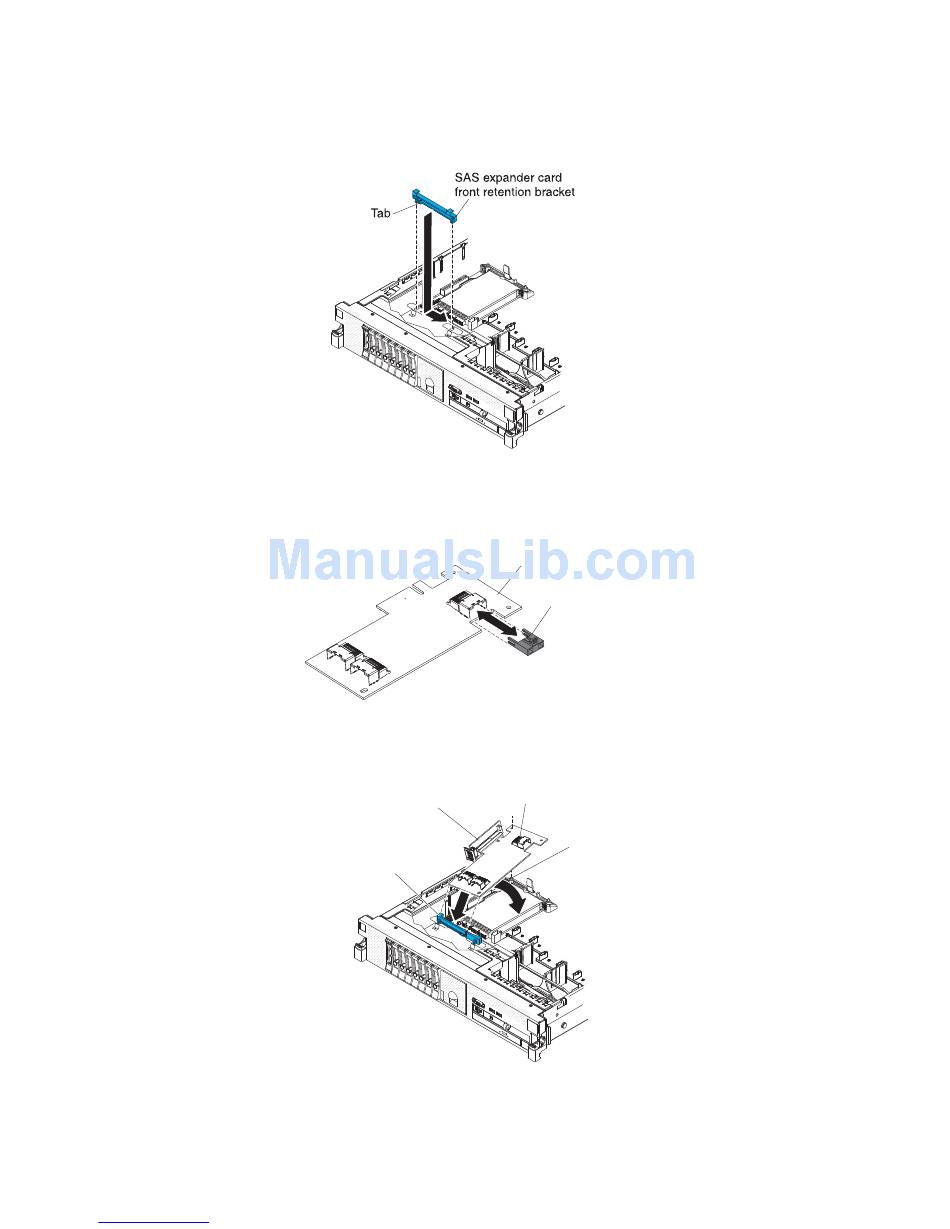

15. Install the SAS controller front retention bracket that comes with the option kit:
a. Align the retention bracket controller slot so that it faces the rear of the
server.
b. Place the bracket tabs in the holes on the chassis and slide the bracket to
left until it clicks into place.
16. Remove the fillers (if they are installed) from the three connectors on the SAS
expander card that comes with the option kit.
17. Install the SAS expander card:
a. Insert the SAS expander card into the connector on the SAS riser card.
b. Insert the front of the SAS expander card into the front retention bracket.
SAS riser card
SAS expander card
front retention bracket
manuals search engine
SAS expander card
SAS expander
card filler
SAS expander card
Alignment post
Chapter 2. Installing optional devices
69
