28. Connect the loose end of the shorter SAS signal cable (this cable has two
straight connectors and is already connected to the SAS controller) to the rear
connector on the SAS expander card. Route the cable through the left side of
the DIMM air baffle and underneath the cable retention features on the baffle.

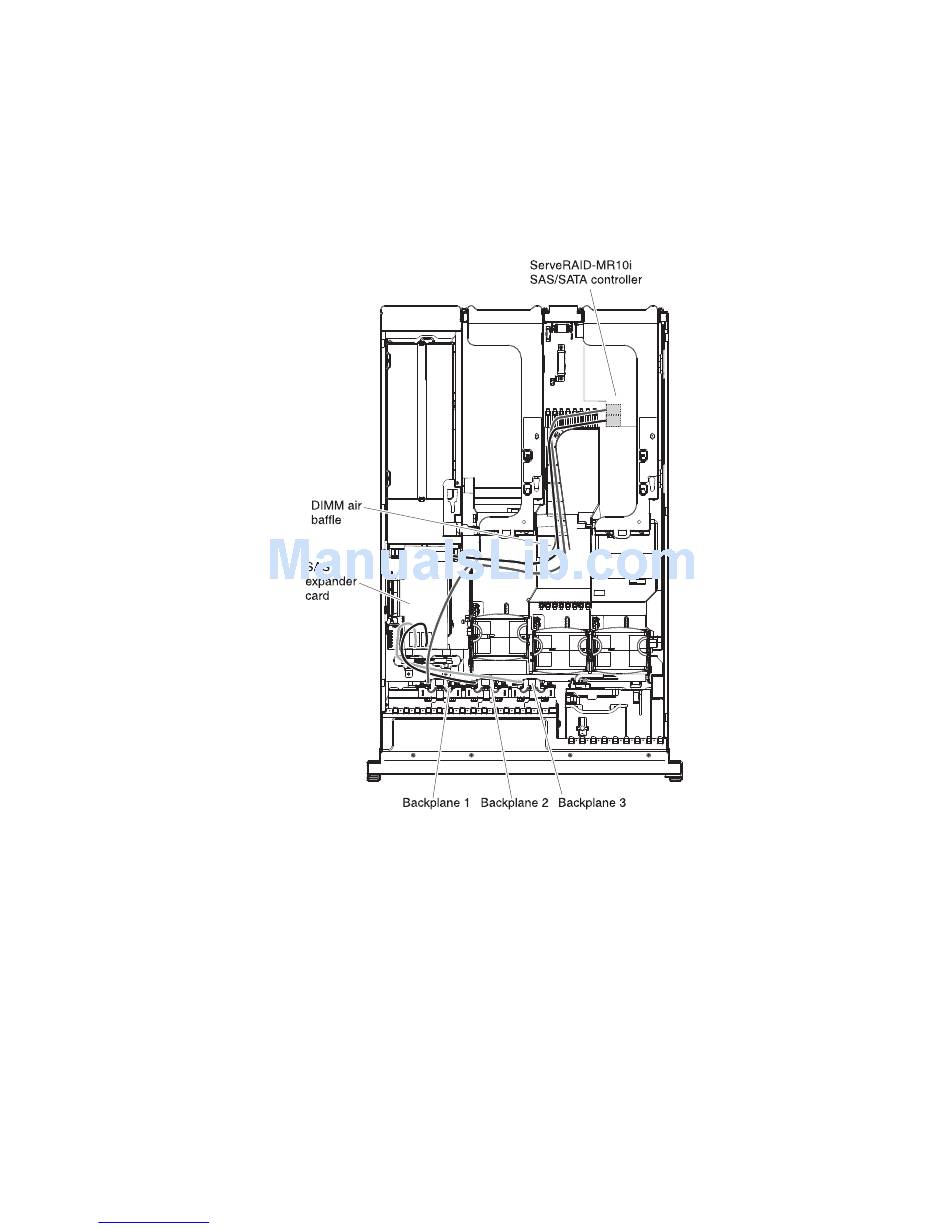

See the illustration.
Note: The cables that connect to a ServeRAID-BR10i SAS/SATA Controller
are reversed.
29. If you removed any fans, install them.
30. Insert the hard disk drives and the fillers the rest of the way into the bays.
If you have other devices to install or remove, do so now. Otherwise, go to
"Completing the installation" on page 106.
