9.2 Paper roll holder

A paper roll holder kit (cod.974DW010000318) is available for the printer to make it possible to use larger-width rolls
of paper.
The paper roll holder can be only assembled on the left side of the printer as shown in the following fi gures.

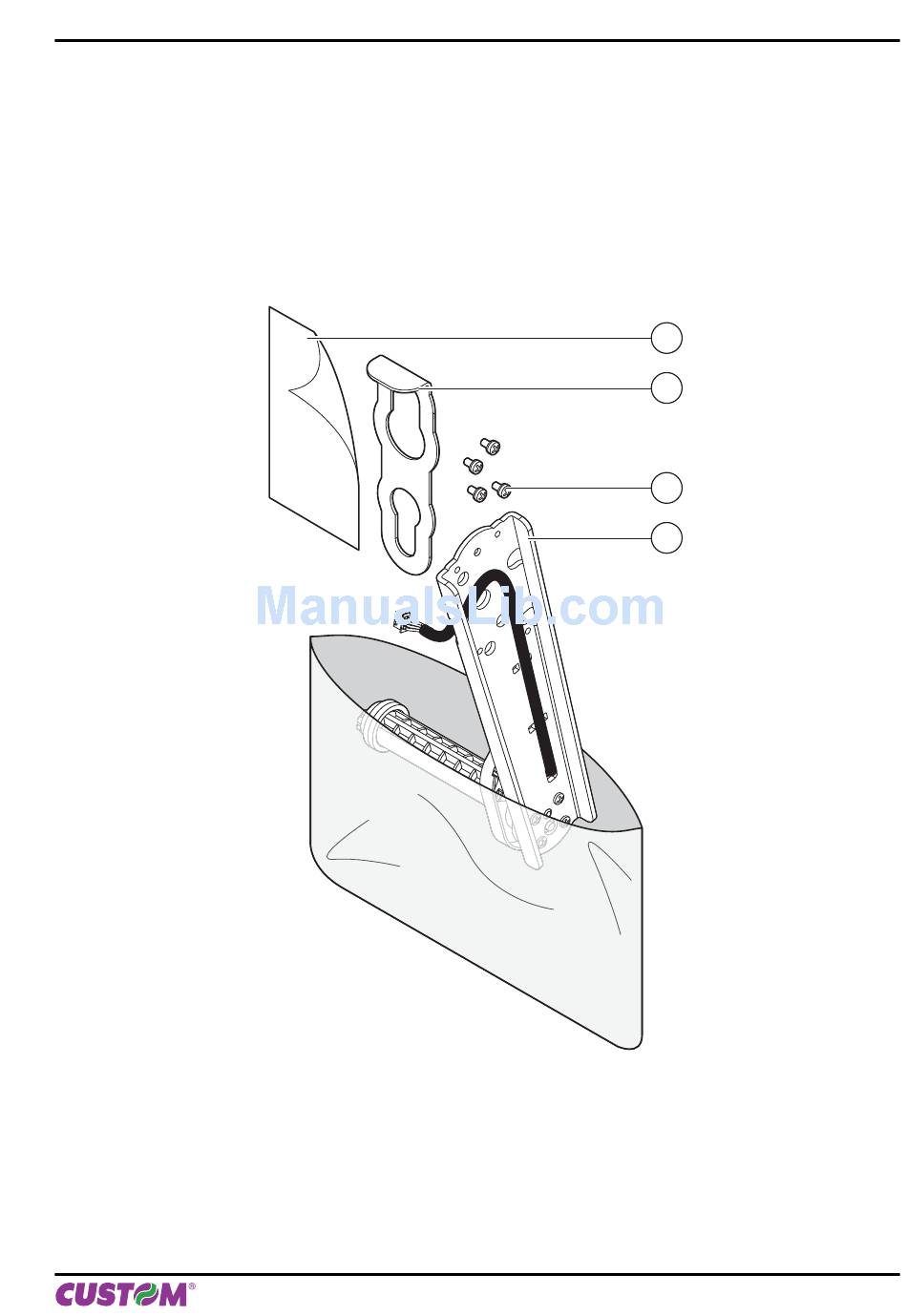

The kit includes (see fi gure):
1. Instruction sheet
2. Tie for roll blocking
3. No. 4 fastening screws
4. Paper holder support with near paper end sensor and regulating system for paper width.
9. ACCESSORIES
1
2
3
4
VKP80II 63
