4. OPERATION

4 OPERATION

4.1 Adjusting paper width

Paper width may be adjusted from 60mm to 82.5mm using the right (Dx) and Left (Sx) slides located at the paper
infeed opening.

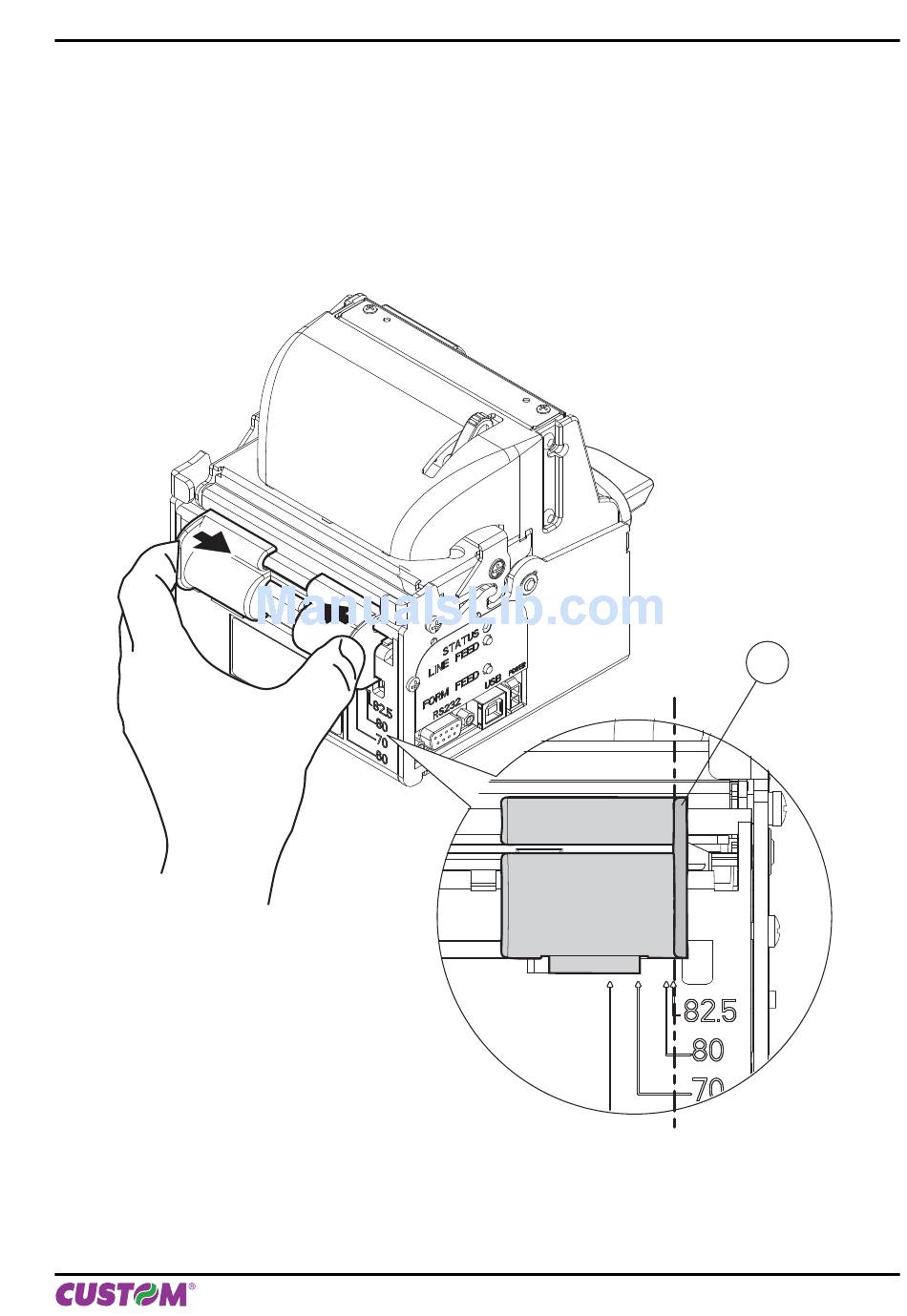

Move the right and left slides to adjust the paper width (see following fi gure). Below the right slide there are four point
of reference for paper width (60, 70, 80 and 82.5mm).
Move the slides to align the internal side of the fi n (A) with the point of reference.
A
