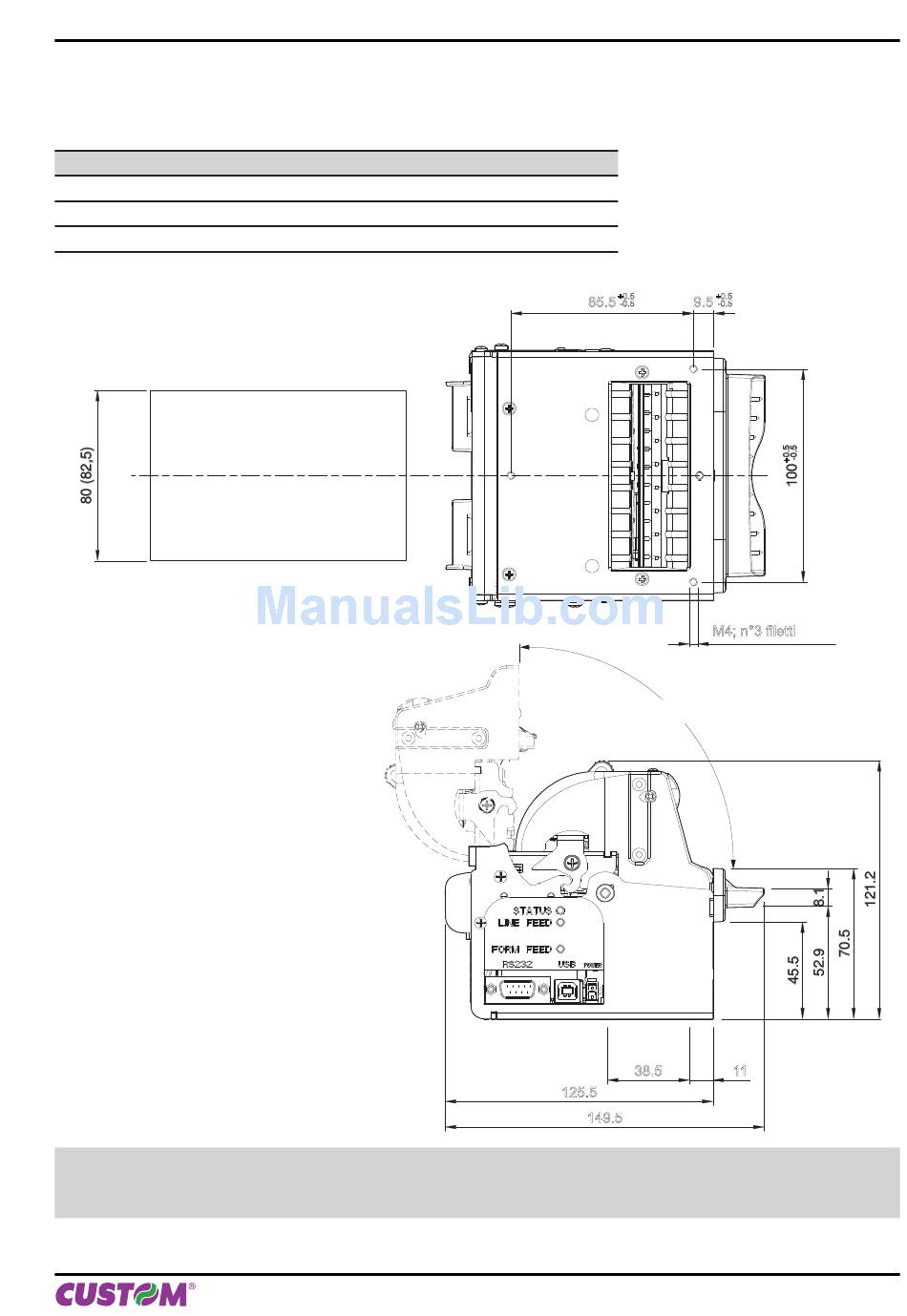

3.2 Installation and use with "retracting" mode

In the following table are reported the length recommended for the tickets using of the retracting mode:
TICKET LENGTH
70 mm
80 mm
80mm ÷ 220mm
Note "Ejector outfeed":
When assembling the printer on the machine, be sure to leave adequate space for the paper loop below. If this is
not done, the ticket could crease at the cutting area, causing the ticket to jam in the paper outfeed opening.
TICKET PRESENTATION (MAX)
10 mm
10mm ÷ 30mm
10mm ÷ 30mm
+0.5
+0.5
85.5
9.5
-0.5
-0.5
M4; n°3 filetti
90° max
38.5
125.5
149.5
