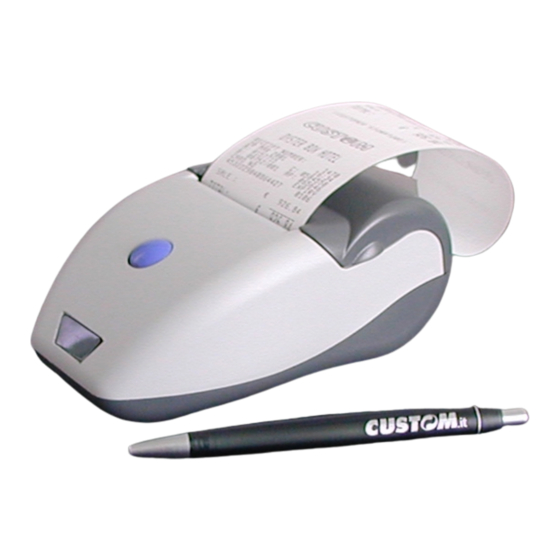

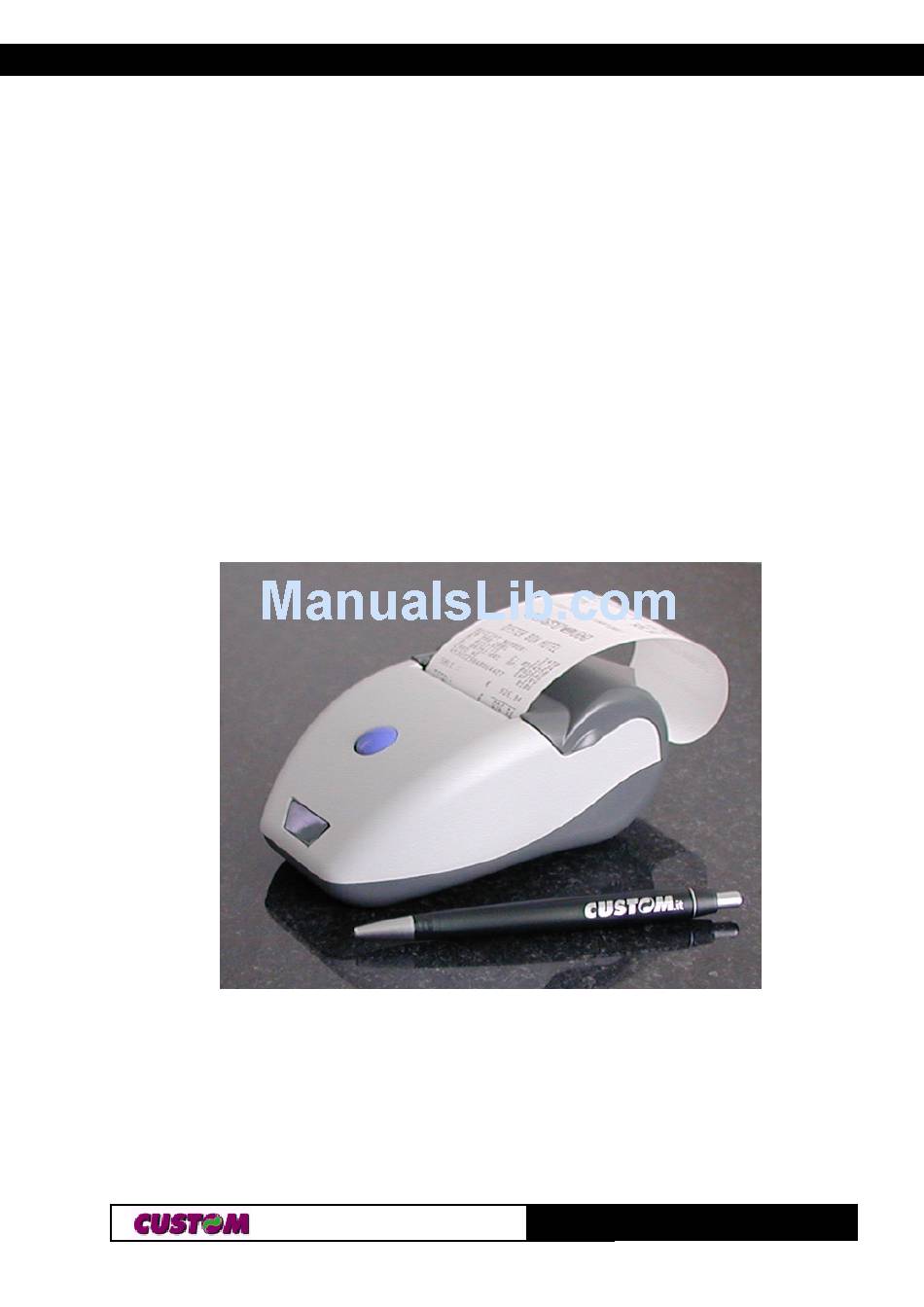

- Page 1 User Manual Portable thermal printer s’print www.custom.it DPT100-S...
- Page 2 All rights reserved. Total or partial reproduction of this manual in whatever form, whether by printed or electronic means, is forbidden. While guarantee- ing that the information contained in it has been carefully checked, CUSTOM ENGINEERING SPA and other entities utilized in the realization of this manual bear no responsibility for how the manual is used.
- Page 3 PRINTER COMPONENTS A. DPT100-S – Front external view 1- Printer base 2- Cover 3- Paper holder 4- Printing mechanism 5- Multi-function + ON key 6- Paper exit slot 7- Status Led DPT100-S...
- Page 4 B. DPT100-S – Under view 1- Serial connector and power supply DPT100-S...
-
Page 5: Table Of Contents
1.5.2 Cleaning ..................1-8 2. INTERFACES 2.1 RS232 SERIAL ..................2-1 3. PRINTER OPERATION 3.1 CONTROL CHARACTERS ..............3-1 3.1.1 ESC/POS emulation ..............3-1 4. TECHNICAL SPECIFICATIONS 4.1 TECHNICAL SPECIFICATIONS ............4-1 4.2 ADAPTOR SPECIFICATIONS ............4-3 4.3 DIMENSIONS ..................4-4 DPT100-S... - Page 6 TABLE OF CONTENTS 5. CHARACTER FONTS 5.1 CHARACTER SETS ................5-1 APPENDIX A - ACCESSORIES AND SPARE PARTS A.1 SPARE PARTS ..................A-1 DPT100-S...
-
Page 7: General Safety Information
Clean the printer with a damp cloth. Do not use liquid or spray products. Do not operate the printer near water. Only use approved accessories and batteries. Do not connect to products that are not compatible. DPT100-S... -
Page 8: Unpacking The Printer
Make sure that all the components illustrated in fig. 1 are present and that there are no signs of damage. If there are, contact Customer Service. 1. Warning sheet 2. Cable 3. Paper roll 4. Adaptor 5. Printer 6. Box DPT100-S... -
Page 9: Printer Features
The desktop version (with RS232 interface) without battery is intended for the instrumentation, retail and general cash register sectors (for example, terminals for credit card payment). It is important to note that s’ print is the first Custom printer designed with DPT100-S... -
Page 10: Printer Description
NOTE The 40 column version is downloadable on the Support/Download/ Firmware section from www.custom.it web site. PRINTER DESCRIPTION The printers consists of a ABS-V0 casing (1) equipped with a cover (2) under which is housed the paper roll and print mechanism. On the front is the multi-function key (3) and red LED (4). - Page 11 DPT100-S...
-
Page 12: Installation And Use
To supply power to the printer and for the serial connection, use the connection cable (fig. 1.2) that comes packed with the printer and following the instructions listed in the paragraph 1.1.3. (Fig.1.2.B) (Fig.1.2.A) (Fig.1.2.C) D C IN (Fig.1.2.D) DPT100-S... -
Page 13: Turning The Printer On And Off
(see fig. 1.3) and plug the adapter into the electrical mains; connect the cable RJ11 connector to the RJ11 connector located under the printer (see fig. 1.3). (Fig.1.3) DPT100-S... -
Page 14: Configuration
Please note: the parameters marked with the symbol represent the default values. Note: the printer interface is fixed setted to RS232. Note: this parameter regulates the type of power supply setting; the default value is High power. For further details please refers to the 1.2.1 section. DPT100-S... -
Page 15: Printing Optimization Using The Power Supply
NOTE: the per cents reported as analytic data indicate the number of dots on in a dotline. NOTE: to use the printer with a higher speed feed it with a power rate superior to 25W. DPT100-S... -
Page 16: Hexadecimal Dump
The printer has been designed with an easy paper load system to improve handling and simplify use. This easy paper loading system is called “sixload” because when the paper is loaded into the printer, it looks like the number “6” (the roll on the bottom with the edge lifted). (Fig.1.5) DPT100-S... -
Page 17: Maintenance
To change the roll of paper, proceed as follows: Open the printer cover (see fig. 1.11) levering on the cover lateral projections and position the paper roll so that it unrolls in the direction shown in figure 1.6; (Fig.1.6) (Fig.1.7) DPT100-S... - Page 18 1. INSTALLATION AND USE Pull up on the edge of the paper and close the cover (fig. 1.13); (Fig.1.8) Tear off the paper. The printer is now ready (fig.1.14). (Fig.1.9) DPT100-S...
-
Page 19: Cleaning
To clean the printer, use a vacuum cleaner or soft cloth. Before cleaning the printer, unplug its electrical cord and make sure that the printer is off. Do not use alcohol, solvents or hard-bristled brushes. Do not let water or other liquids seep into the printer. (Fig.1.10) alcohol, solvent DPT100-S... -
Page 20: Interfaces
9-pin female connector (fig. 2.2A) to connect to the serial port; on the other side of the same connector is a RJ11 connector (fig. 2.2.B). For the layout of signals on the connectors, please refer to tables 2.1 and 2.2. (Fig.2.2.A) (Fig.2.2.B) DPT100-S... - Page 21 4 4 4 4 4 5 5 5 5 5 t n i i t c 6 6 6 6 6 7 7 7 7 7 i t c 8 8 8 8 8 9 9 9 9 9 DPT100-S...
- Page 22 S IG N A L G N D D S R C T S 9-pin connector (s’print cable) (Fig.2.3) D C D T X D R X D C T S D S R S IG N A L G N D 9-pin connector (s’print cable) DPT100-S...
-
Page 23: Control Characters
] n [ n i l t n i t n i n i l t n i n i l DPT100-S... - Page 24 [Default] Setting in option register by means of front keys [Reference] 01H, 02H, 03H, 04H [Example] [Name] Double width printing [Format] ASCII Decimal [Description] The printer prints in double width format DPT100-S...
- Page 25 • commands 00H-09H do not cancel the print buffer • the commands which modify the dimensions of the characters are only active at the beginning of the line [Default] Setting in the option register by means of the front keys [Reference] 00H, 01H, 02H, 04H [Example] DPT100-S...
- Page 26 [Default] [Reference] [Example] [Name] Forward feeds one line [Format] ASCII Decimal [Description] Forward feeds one line equivalent to a line of print [Notes] • This command brings about the printing of the contents of the line buffer. [Default] DPT100-S...
- Page 27 This command prints the line buffer [Notes] • If the line buffer is empty, the command is ignored • If the CRLF option is set, this command is ignored and printing can only be ordered through the command $0A [Default] [Reference] [Example] DPT100-S...
- Page 28 R must be fixed at level 1; P1,.P6 are the graphic dot data (1 prints, 0 does not print). The P6 bit of the string of dots transmitted is printed on the left and the others follow from left to right (P5, P4, P3, P2, DPT100-S...
- Page 29 [Notes] • This command is executed when the data is processed in the data buffer. Therefore, there could be a time lag between command reception and data transmission, depending on data buffer status. [Default] [Reference] [Example] DPT100-S...
- Page 30 Decimal nH nL [Description] Executes [n] dots line feed. [Notes] [Default] [Reference] [Example] [Name] Writes the value (dd) in the print mode [Format] ASCII Decimal [Description] Sets the print mode default parameters: $00 small character printing DPT100-S...
- Page 31 [Default] Setting in option register by means of front keys [Reference] ESC R [Example] [Name] Enable underlined printing [Format] ASCII Decimal [Description] After this command has been received, the characters are printed underlined [Note] [Default] [Reference] ESC q [Example] DPT100-S...
- Page 32 Selects the number of dot spaces [Format] ASCII (dd) (dd) Decimal (dd) [Description] (dd) are two ASCII characters which identify a hexadecimal byte and correspond to the number of dot lines between one print line and another [Notes] DPT100-S 3-10...
- Page 33 HRI 0=no 1=above 2=below 3=above & be- bit5,4: size 0=normal 1=double 2=triple 3=quadruple [maximum length] Interleaved 2/5 = 12 characters Code 39 = 10 characters CodaBar = 10 characters 3-11 DPT100-S...
- Page 34 The response is on two bytes. E.g. if you receive: $30, $32 it means that printing is in double height mode [Name] Disables underlined printing [Format] ASCII Decimal [Description] Annuls underlined printing [Notes] [Default] [Reference] ESC Q [Example] DPT100-S 3-12...
- Page 35 1BH FAH 0AH 1EH [Name] Transmit paper sensor status [Format] ASCII ESC v Decimal [Description] When this command is received, transmit the current status of the paper sensor. [Notes] • This command is executed immediately, even when the 3-13 DPT100-S...
- Page 36 Set the print beginning position into a graphic line based on the current value of n that indicate the byte number of shift from left margin. [Notes] • Settings outside the specified printable area are ignored. [Default] [Reference] [Example] DPT100-S 3-14...
- Page 37 [Default] [Reference] [Example] [Name] Resets the printer parameters to default. [Format] ASCII Decimal [Description] Resets the printer parameters to the default configuration. [Notes] • After executing this command the printer is initialized. [Default] [Reference] [Example] 3-15 DPT100-S...
- Page 38 (etc.) print modes, except for the upside- down mode. [Default] [Reference] [Example] For printing 12 bytes the command sequence is : 1D 57 0C FF 00 FF 00 FF 00 FF 00 FF 00 FF 00 DPT100-S 3-16...
-
Page 39: Technical Specifications
( ) 1 ° ° i t a y t i y t i ° ° ) l l Note : STANDARD CUSTOM receipt and 1300 mAh battery. It depends by the battery status, the printing typology and the environment temperature. DPT100-S... - Page 40 4. TECHNICAL SPECIFICATIONS (Tab.4.2) ( ) 3) 3) 3) 3) 3 NOTE The 40 column version is downloadable on the Support/Download/ Firmware section from www.custom.it web site. DPT100-S...
-
Page 41: Adaptor Specifications
4. TECHNICAL SPECIFICATIONS 4.2 ADAPTOR SPECIFICATIONS (Tab.4.3) 220Vac Adaptor a t l a t l (Tab.4.4) 120Vac Adaptor a t l a t l DPT100-S... -
Page 42: Dimensions
4. TECHNICAL SPECIFICATIONS 4.3 DIMENSIONS Printer dimensions are shown below. (Fig.4.1) 2 1 3 ,9 8 8 ,1 8 6 4 ,6 1 DPT100-S... -
Page 43: Character Sets
5. CHARACTER SETS 5.1 CHARACTER SETS The printer has a 224-character font, a print-out of which is shown below. (Fig.5.1) DPT100-S... -
Page 44: A.1 Spare Parts
APPENDIX A - ACCESSORIES AND SPARE PARTS A.1 SPARE PARTS (Tab.A.1) DPT100-S...
