INSPECTION

PRECAUTION ON SYSTEM INSPECTION

To prevent any unexpected engine start, perform the following before proceeding with any CRANK-
ING tests.
• When performing tests not related to fuel injector operation :
• Disconnect all fuel injector wire connectors.
• When performing tests related to fuel injector operation :
• Relieve fuel pressure in line. (See page 5-3)
• Disconnect high pressure fuel pump wire connector located on fuel vapor separator.
• Always turn ignition switch "OFF" and disconnect battery cables when wires are being discon-
nected or connected.
• Hold and pull connector pieces when disconnecting. Do not pull wires.
NOTE:
• Self-diagnostic codes will remain in ECM memory even if battery is disconnected.
• As each terminal voltage is affected by battery voltage, use a full-charged battery.
• Make sure all ground points have good electrical contact.
• Make sure all wires / cables are securely connected.

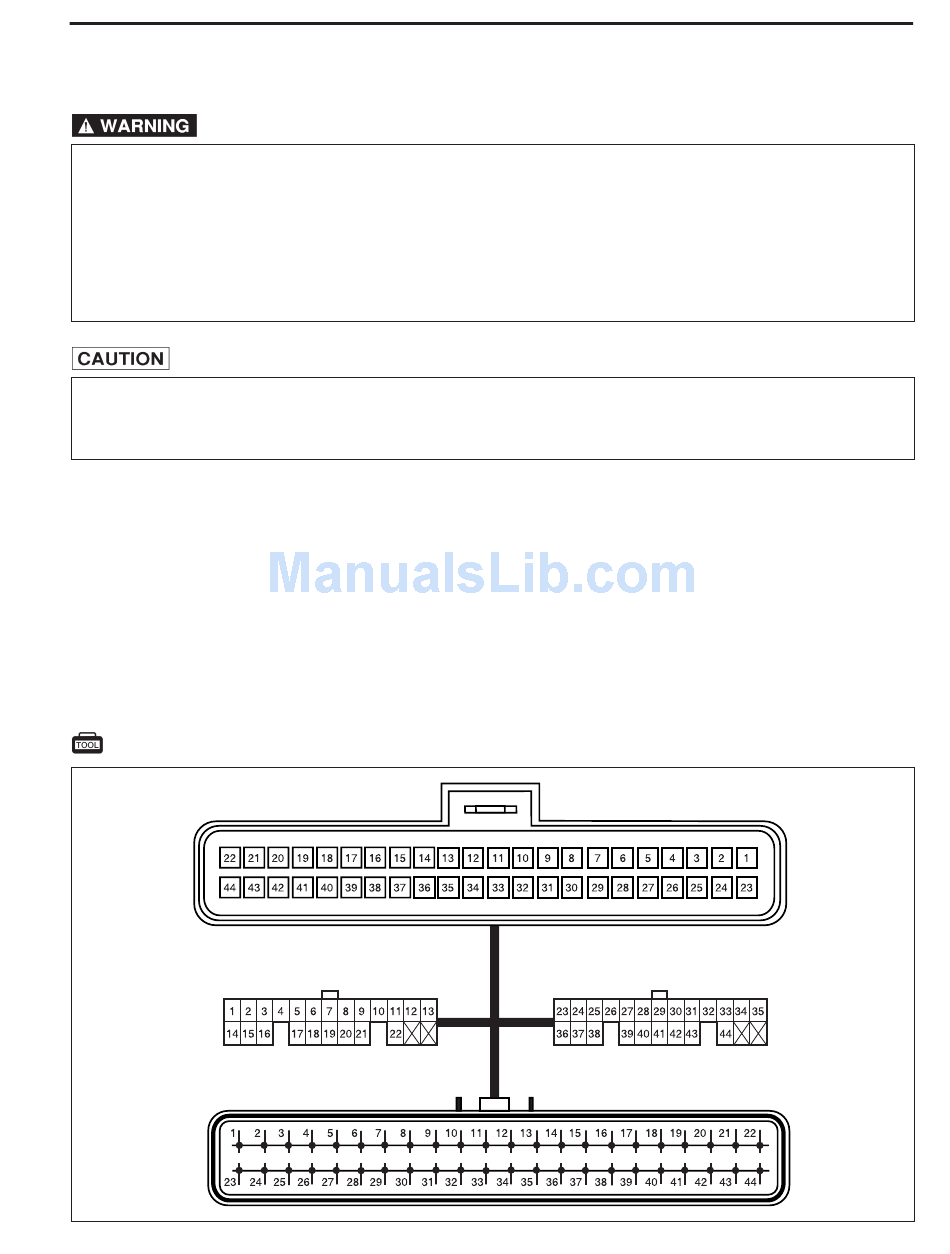

44-PIN TEST CORD

This test cord is used when checking the circuit for voltage, etc. and connected between ECM and the wiring
harness.
To measure, connect the tester probe to the relevant terminal of the test cord.
09930-89950 : 44-pin test cord
White connector
ENGINE CONTROL SYSTEM
Black connector
3-35
