3-32 ENGINE CONTROL SYSTEM

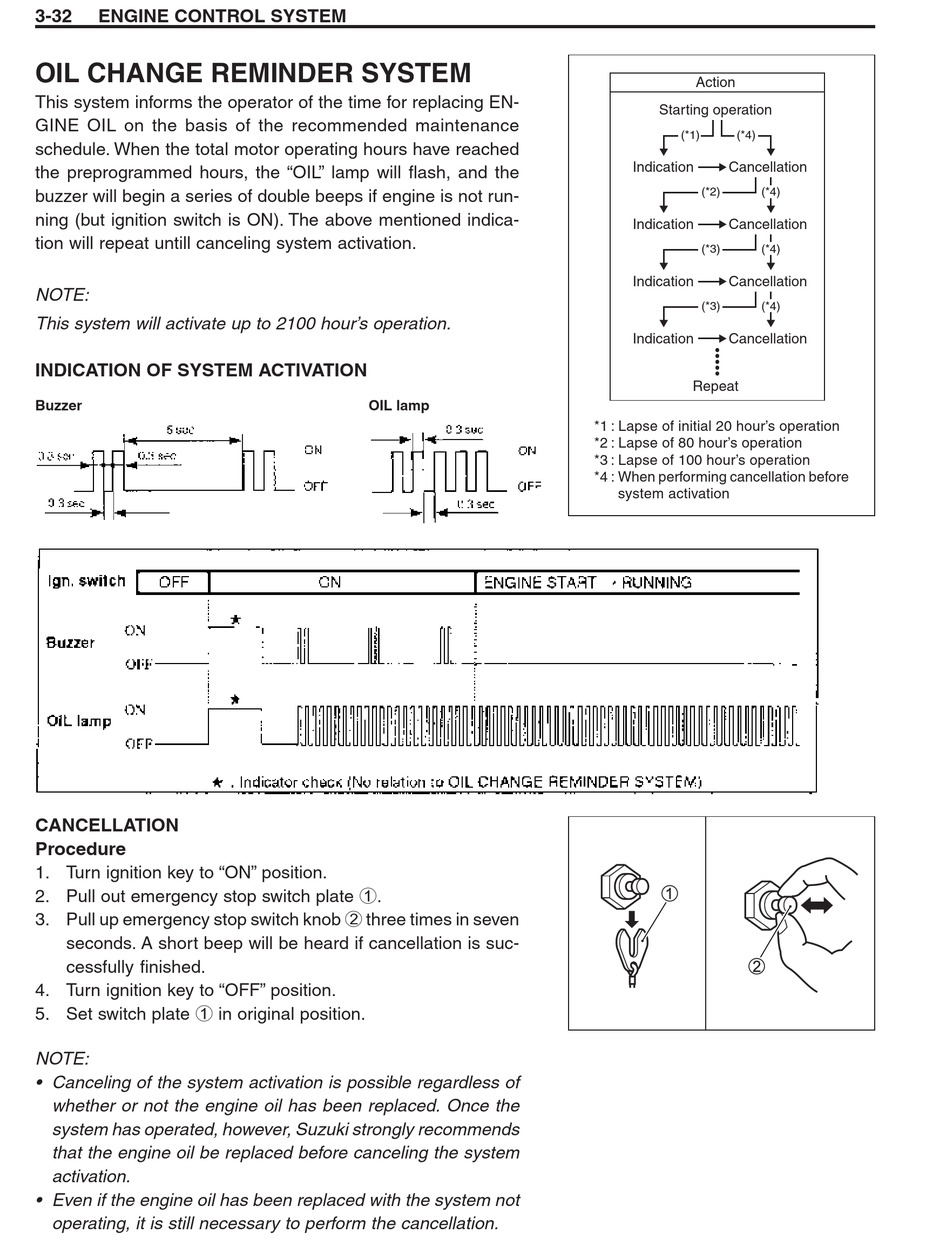

OIL CHANGE REMINDER SYSTEM

This system informs the operator of the time for replacing EN-
GINE OIL on the basis of the recommended maintenance
schedule. When the total motor operating hours have reached
the preprogrammed hours, the "OIL" lamp will flash, and the
buzzer will begin a series of double beeps if engine is not run-
ning (but ignition switch is ON). The above mentioned indica-
tion will repeat untill canceling system activation.
NOTE:
This system will activate up to 2100 hour's operation.
INDICATION OF SYSTEM ACTIVATION
Buzzer
CANCELLATION
Procedure
1. Turn ignition key to "ON" position.
2. Pull out emergency stop switch plate 1.
3. Pull up emergency stop switch knob 2 three times in seven
seconds. A short beep will be heard if cancellation is suc-
cessfully finished.
4. Turn ignition key to "OFF" position.
5. Set switch plate 1 in original position.
NOTE:
• Canceling of the system activation is possible regardless of
whether or not the engine oil has been replaced. Once the
system has operated, however, Suzuki strongly recommends
that the engine oil be replaced before canceling the system
activation.
• Even if the engine oil has been replaced with the system not
operating, it is still necessary to perform the cancellation.
OIL lamp
Action
Starting operation
(*1) (*4)
Indication Cancellation
(*2) (*4)
Indication Cancellation
(*3) (*4)
Indication Cancellation
(*3) (*4)
Indication Cancellation
Repeat
*1 : Lapse of initial 20 hour's operation
*2 : Lapse of 80 hour's operation
*3 : Lapse of 100 hour's operation
*4 : When performing cancellation before
system activation
