2.2 Electric Installation
®
This subsection describes how to connect the
2N
Helios IP Video Kit
into your Local
Area Network (LAN) and how to connect supply voltage and other electric interfaces.
Device and PCB Connectors
®
Figs. 1 and
2
show the layout of the
2N
Helios IP Video Kit
connectors and
terminals.

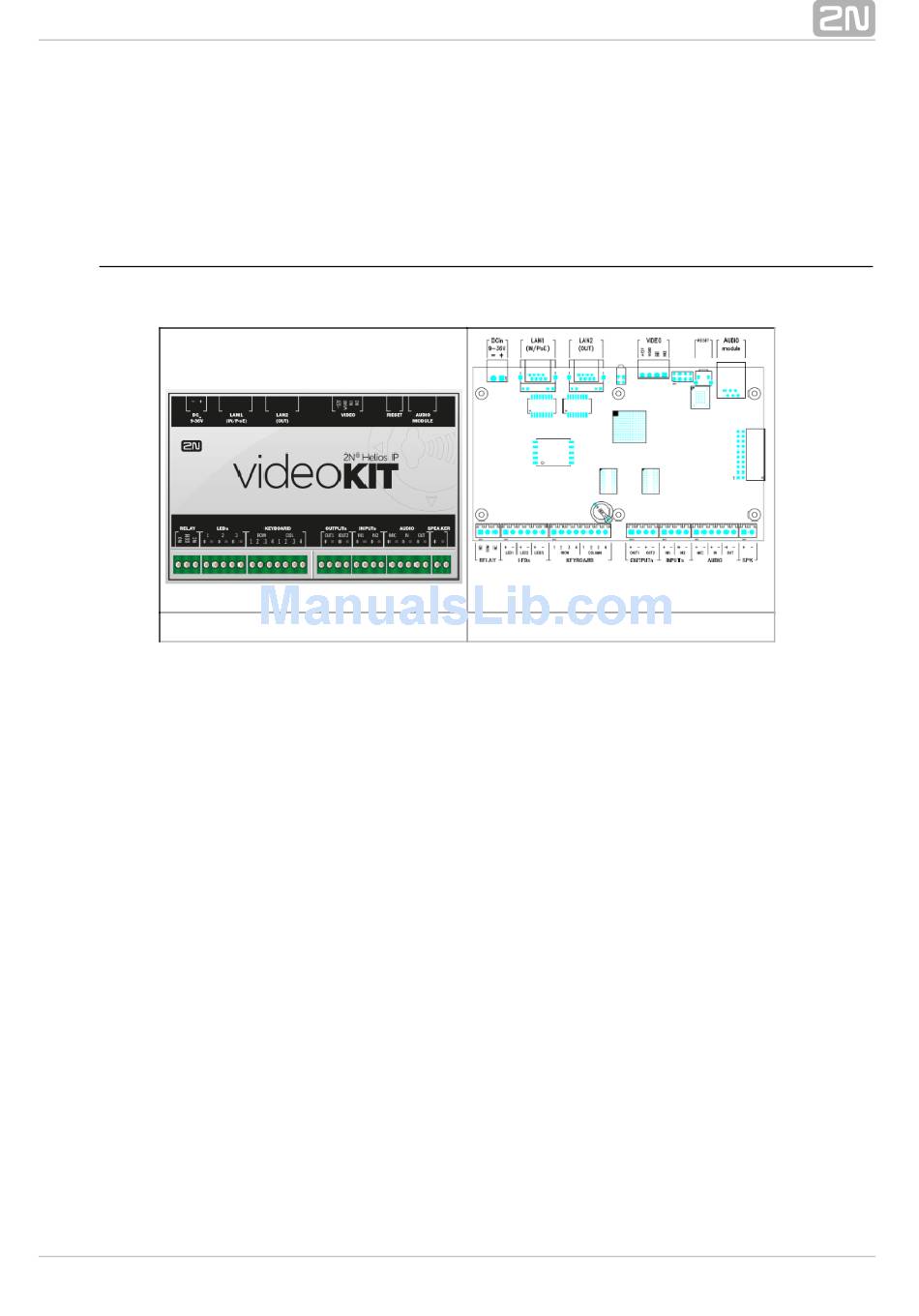

Figure 1: Connectors
Figure 2: PCB Connectors
12
®
2N
TELEKOMUNIKACE a.s., www.2n.cz
