ASSEMBLY

To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tool(s) and your own adjustable wrench and Phillips
screwdriver .

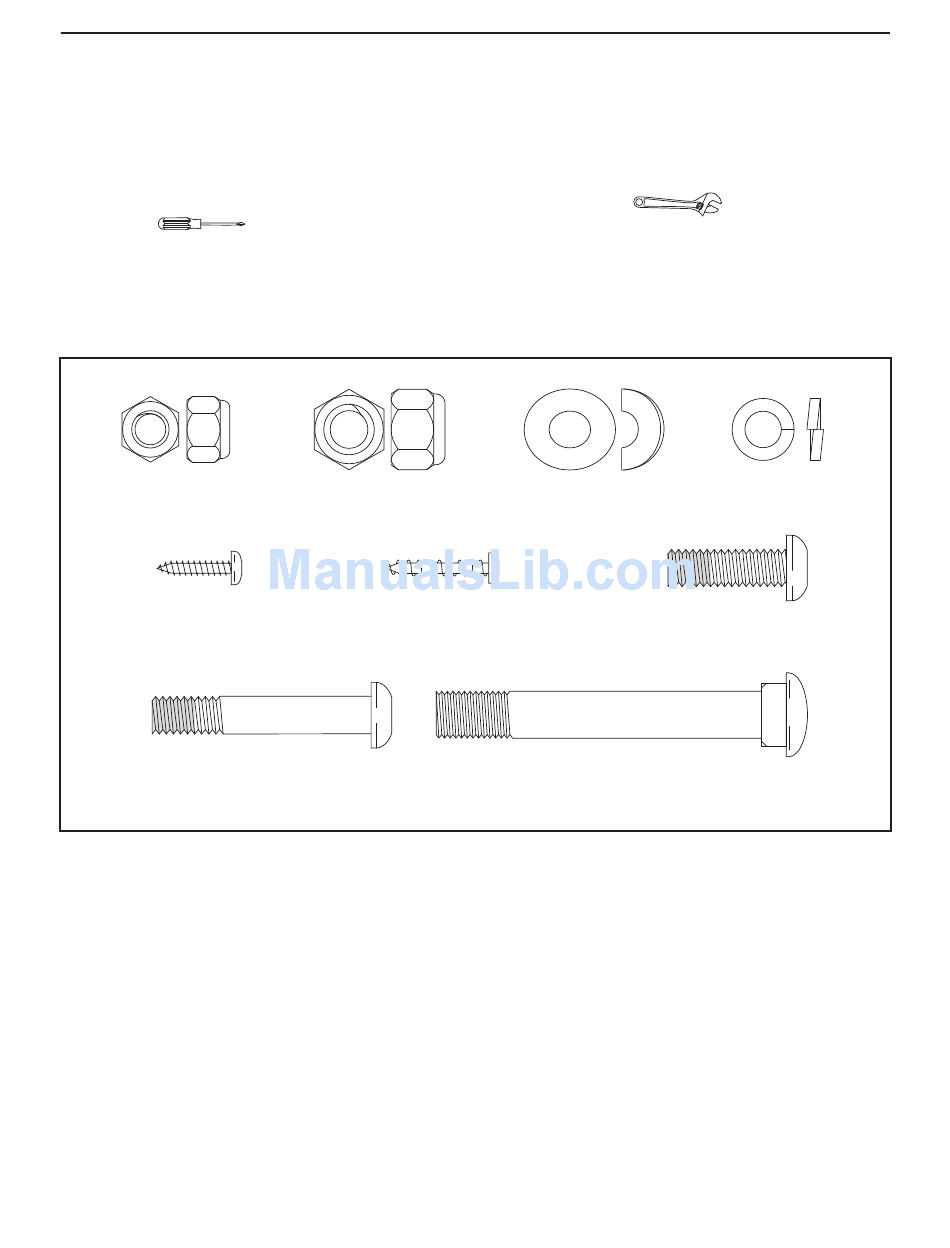

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Locknut M10 Locknut M8 Curved M8 Split
(10)–6 (33)–4 Washer (39)–2 Washer (41)–10
M8 x 25mm Patch
M4 x 16mm M4 x 22mm
Screw (45)–6
Screw (49)–4 Screw (20)–2
M10 x 75mm Carriage Bolt (30)–4
M8 x 47mm Patch
Screw (9)–2
5
