Pro-Form PFEX71608.0 User Manual page 6

1.
To make assembly easier, read the
information on page 5 before you begin
assembling the exercise cycle.
Identify the Front Stabilizer (2).

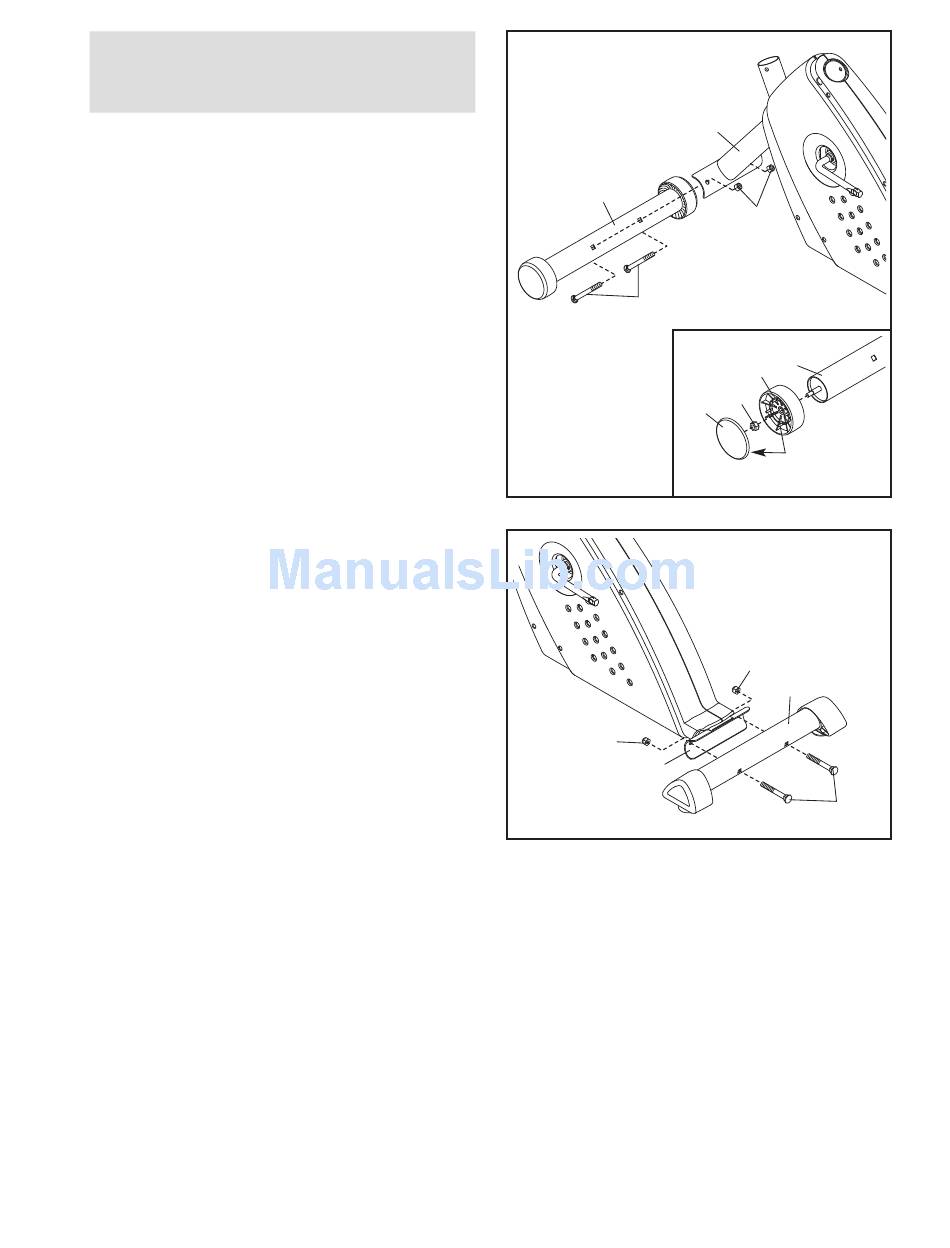

See the inset drawing. Attach a Wheel (14) to one
end of the Front Stabilizer (2) with an M8 Locknut
(10). Make sure that the Wheel is oriented as
shown and that it turns freely.
Next, align the four plastic posts on a Wheel Cover
(23) with the plastic posts on the Wheel (14). Press
the Wheel Cover onto the Wheel.
Assemble the other Wheel (not shown) in the
same way.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (2) to the Frame with two
M10 x 75mm Carriage Bolts (30) and two M10
Locknuts (33) as shown.
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (6) with two M10 x 75mm
Carriage Bolts (30) and two M10 Locknuts (33).
1
2
30
2
33
6
1
33
2
14
10
23
Post
33
6
1
30
