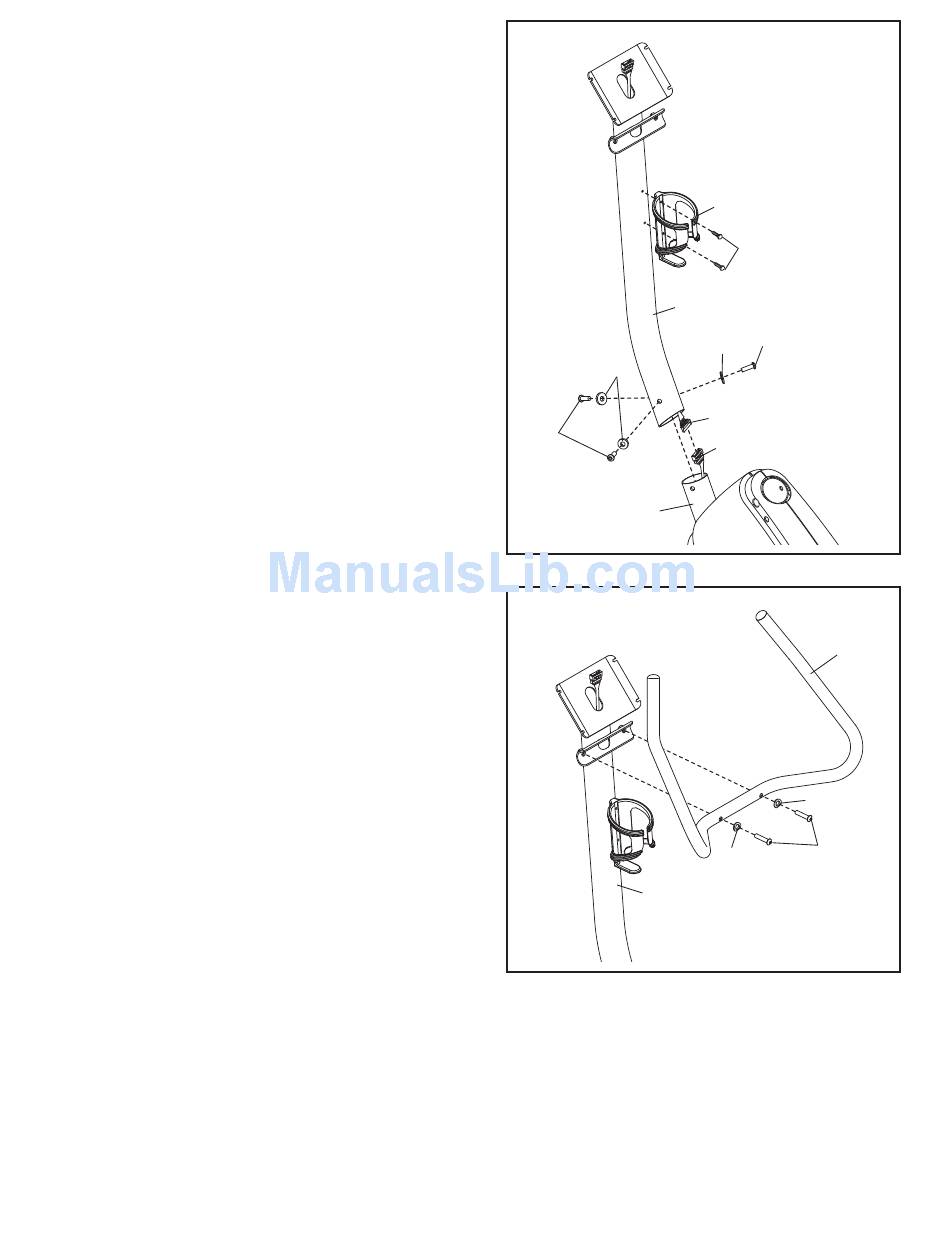

3. While a second person holds the Upright (13) in the
position shown, connect the Upper Wire Harness
(36) to the Lower Wire Harness (55).
Carefully pull the excess Upper Wire Harness (36)
out of the top of the Upright (13), and slide the
Upright onto the Frame (1).
Tip: Avoid pinching the Wire Harnesses (36, 55).
Attach the Upright (13) with three M8 x 25mm
Patch Screws (45) and three M8 Split Washers
(41).
Attach the Water Bottle Holder (8) to the Upright
(13) with two M4 x 22mm Screws (20).
4. Attach the Handlebar (15) to the Upright (13) with
two M8 x 47mm Patch Screws (9) and two M8
Curved Washers (39).
