1 Pearl™ 2-Loop Fire Control Panel

1.1 Introduction

This document explains how to use the Pearl™ panel's built-in control
functions to access various menu functions and/or carry out regular
mandatory procedures required by the local fire industry regulations.
Helpful descriptions and tips are also provided within this document
to assist the user in understanding the status information provided by
the Pearl™ panel's LCD and LED indicators.
The Pearl™ Fire Alarm Control Panel has been designed to meet
the requirements of EN54-2.

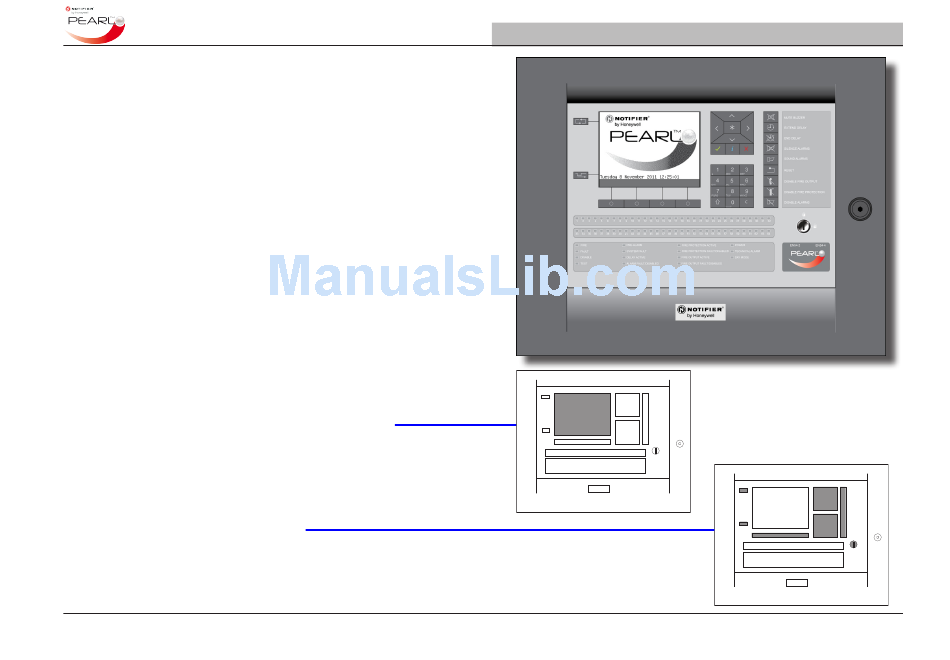

1.2 User Interface

The Pearl™ fire alarm control panel (hereafter referred to as the
'panel') is provided with all required indicators to allow the user to
review the system status and, with appropriate user (keyholder)
access, perform approved system maintenance functions in
accordance with the requirements of the local fire regulations.
LCD. The panel's user interface presents a large LCD (320 by 240
pixels) as the primary system status indicator.
See Section 1.2.1 LCD Primary Status Indicator.
Function Keys. The user interacts with the information displayed
on the panel's LCD using the various function keys. These keys are
located in various places on the panel's fascia: to the left, right and
below the LCD. Entering a valid access Level 2 passcode or using
the keyswitch will make these keys functionable.
See Section 1.2.2 Function Keys.
