Notifier FireWarden-100-2 Operating Instructions

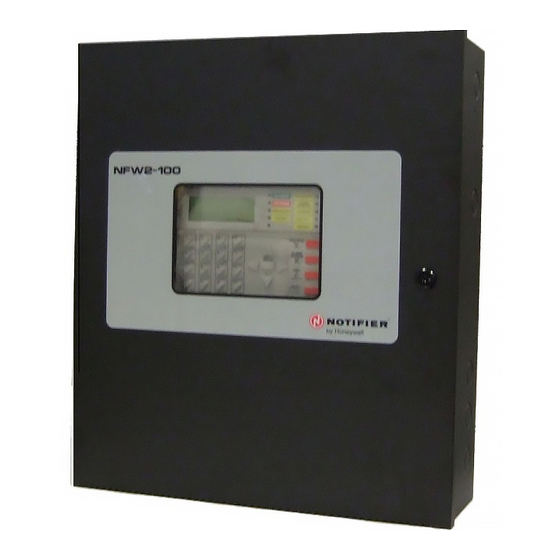

FireWarden-100-2/E Fire Alarm Control Panel
NORMAL - Only the GREEN A.C. POWER LED is on.
All other LED's are off. LCD display will read SYSTEM ALL
NORMAL.
WHEN AUDIBLE DEVICES ARE SOUNDING -
FOR AN ALARM
1. Evacuate the protected area
2. Notify the monitoring service and/or the Fire Department immediately. Tell them briefly what happened and what
your current status is.
Phones: ____________________________ _________________________________
3. If the Fire Department is responding, be prepared to provide directions to arriving firefighters.

FOR TROUBLE ONLY

1. Notify the monitoring service and/or Fire department if this panel is connected to either one, and tell them
what is happening.
2. Silence audible devices by unlocking and opening the panel and pressing the ACKNOWLEDGE/STEP key. The
yellow system TROUBLE LED will remain on. Contact authorized service personnel immediately! (See Below).
DO NOT ALLOW TROUBLE CONDITIONS TO REMAIN LOGGED IN THE SYSTEM. THE PROTECTION
THE SYSTEM OFFERS HAS BEEN COMPROMISED, OR ELIMINATED WHEN A TROUBLE CONDITION

To return to normal after an alarm

1. Do not enter the protected area until safe to do so.
2. Clear all initiating devices. Smoke detectors will not reset
if there is still smoke in the area.
3. Reset the control panel (PRESS the RESET key)

Power failure or brownout

If AC power drops too low or fails, the AC POWER LED will go out,
the system TROUBLE LED will turn on, and the panel buzzer and
any other audible trouble devices will sound. Contact authorized
service personnel immediately. See below.
Service Representative
In the event of trouble, contact the
local Notifier Service Representative
Name: _____________________________________
Company: _________________________________
Address: ___________________________________
Telephone Number: ________________________
Operating Instructions
PANEL KEY - The key to open the panel can be found at the
following location:
Fire Department
WARNING!
EXISTS.

Manual activation (Fire Drill or otherwise)

Notification Appliance Circuits (NACs) can be activated by
pressing and holding the DRILL key for at least two seconds.
NOTE: You may want to disconnect municipal box by sliding

Alarm Silencing

Notification Appliance Circuits may be silenced by pressing the
ALARM SILENCE key. The ALARM SILENCED LED will turn on.
Subsequent alarms will reactivate circuits. Press the RESET key
to clear the "silenced" condition.
NOTE: Notification Appliance Circuits may be programmed as
nonsilenceable. Also, Signal Silence Inhibit, if enabled, will
prevent silencing of NACs for one minute after an alarm (see
manual).

To test the lamps, LCD display and piezo sounder

Press and release the RESET key and check all LED's. Every LED
should be on, LCD shows all pixels on, piezo sounder beeps.
For more information, refer to the FireWarden-100-2/E Manual,
Document #52778. It is kept in the following location:
THIS SHEET SHALL BE FRAMED ADJACENT TO
Monitoring Service
DISCONNECT switch, located on 4XTM module, to its
disconnect position (to the right). If a DACT is
connected, notify the monitoring service before
conducting any fire drills or tests.
THE CONTROL PANEL
Document #52781 Rev. A 11/15/05 ECN 06-086
