5.2.4 LEDs

To test all of the panel's LEDs and function key backlights, select
option 4: LEDs from the Test Menu.

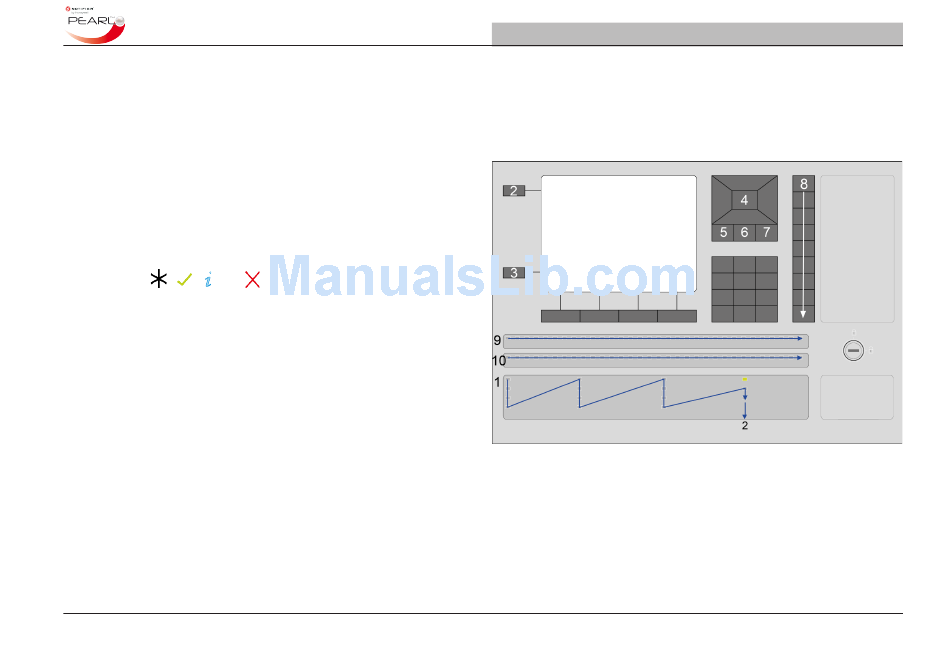

The panel's LEDs are then lit (4 rapid flashes) individually in the
following pre-defined sequence:
1 The System Status LEDs. Each LED is lit in turn, starting with
the Fire LED and working down first and then across to the last
LEDs on the right. The POWER LED is not tested as this will
already be lit (continously) under normal conditions.
2 The SHOW MORE ZONES IN FIRE key.
3 The CHANGE TAB key
4-7 The , , and
8 The Function Keys: MUTE BUZZER, EXTEND DELAYS,
END DELAY, SILENCE ALARMS, SOUND ALARMS, RESET,
DISABLE FIRE OUTPUT, DISABLE FIRE PROTECTION,
DISABLE ALARMS
9 Zone FIre LEDs 1 to 32*
10 Zone Fire LEDs 33 to 64*.
* With markets that do not require zone indications these LEDs
are fitted and, consequently, are still included in this test.
