Hardware layout and configuration

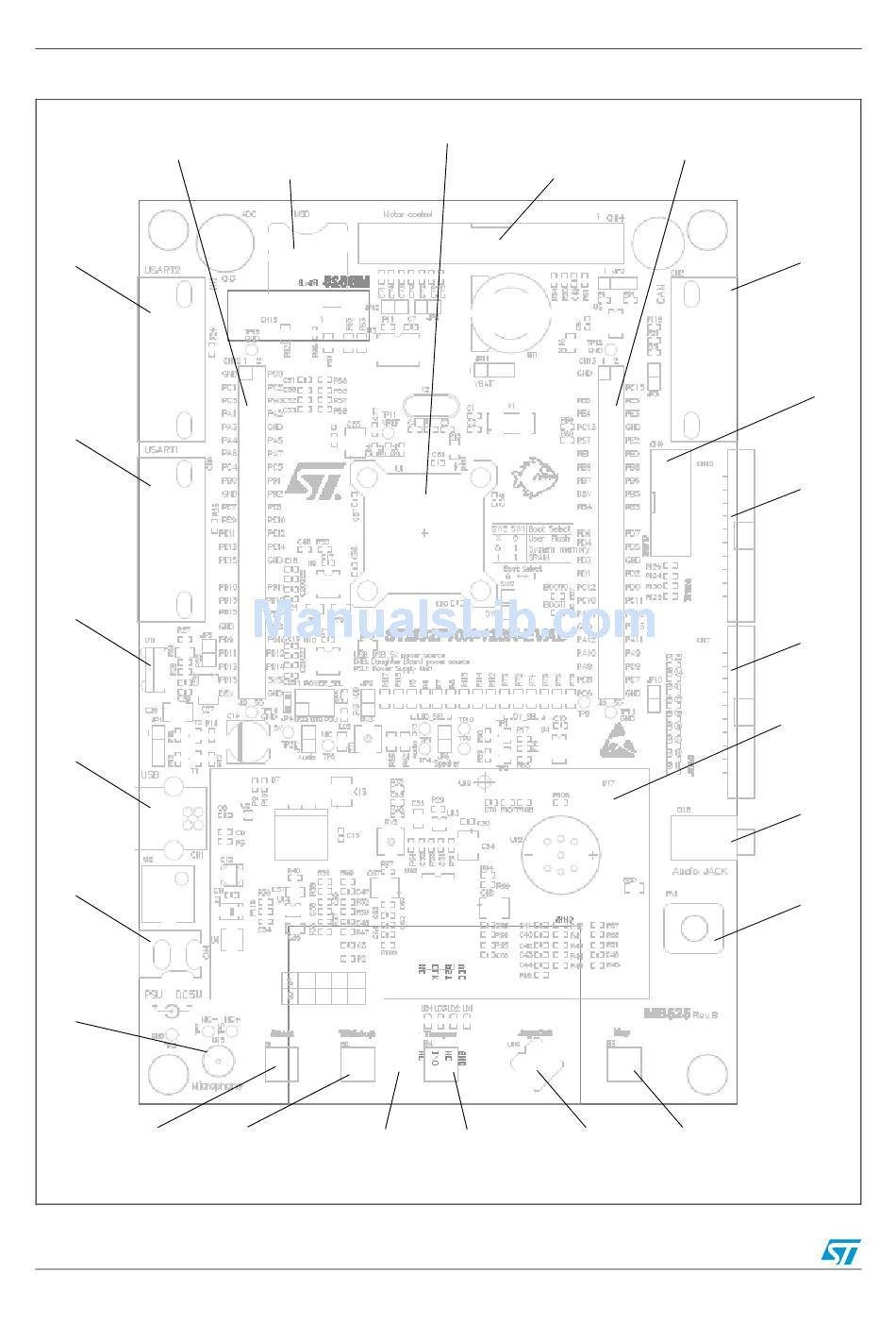

Figure 3. STM3210B-EVAL board layout
CN12
Extension connector
CN5
USART2
CN6
USART1
U11
IrDA
CN1
USB
CN4
5V power
U17
MIC
B1
RESET
6/46
U1
STM32F103VBT6
CN15
MicroSD card
B2 CN16
WAKEUP Smartcard
CN14
Motor control
B4 U18
Tamper Joystick
UM0426
CN13
Extension connector
CN2
CAN connector
CN9
SWD
CN10
Trace
CN7
JTAG
U17
Color LCD
CN8
Audio jack
RV1
Potentiometer
B3
General
purpose key
