Connectors
2.13
MicroSD connector CN15

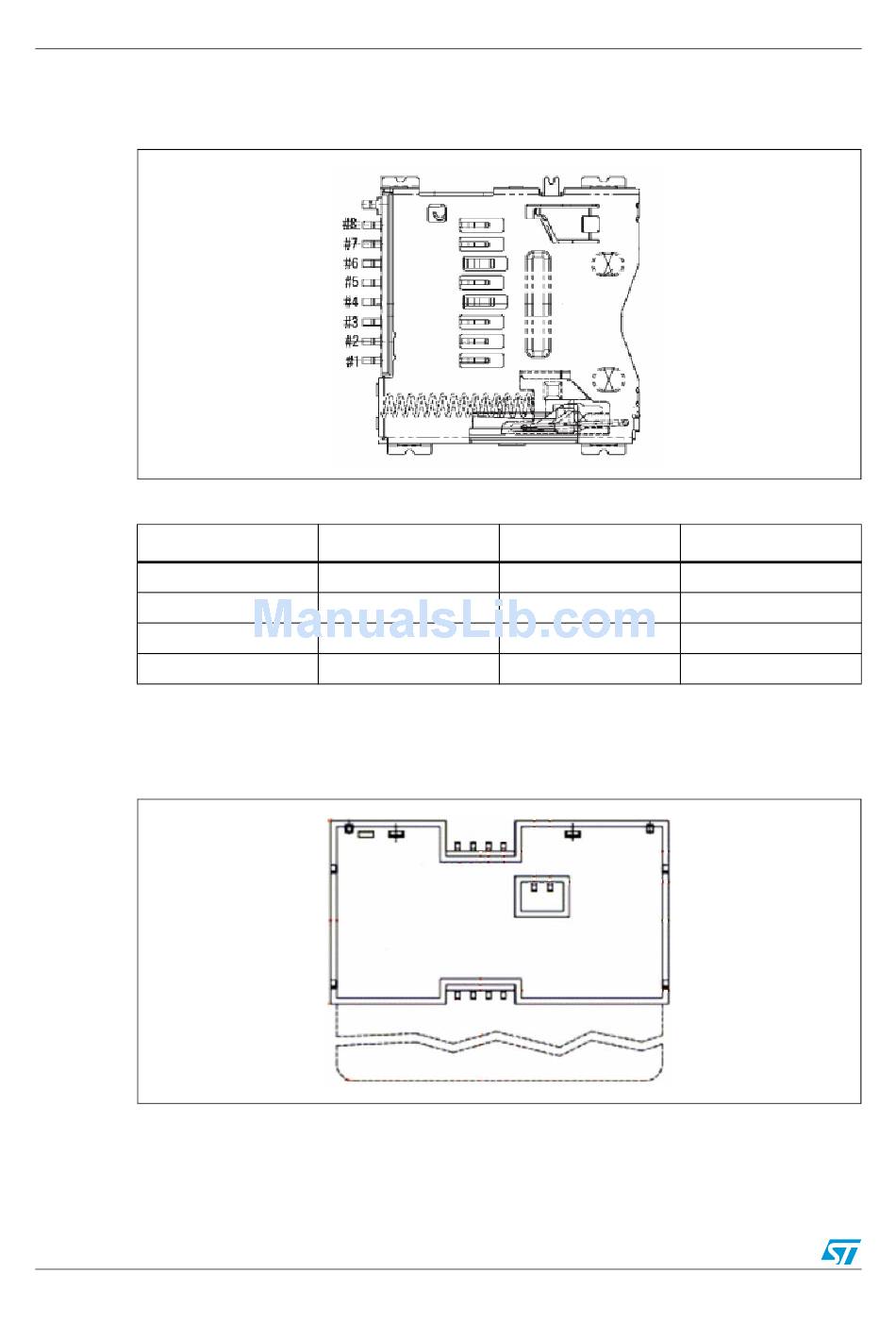

Figure 18. MicroSD connector CN15 (top view)
Table 23.
Pin number
2.14
Smartcard connector CN16
Figure 19. Smartcard connector CN16 (top view of connector underneath PCB)
26/46
MicroSD connector CN15
Description
1
Reserved
2
CS/PC12
3
DI/PA7
4
VDD
Pin number
5
SCLK/PA5
6
Vss/GND
7
DO/PA6
8, 9
Reserved
UM0426
Description
