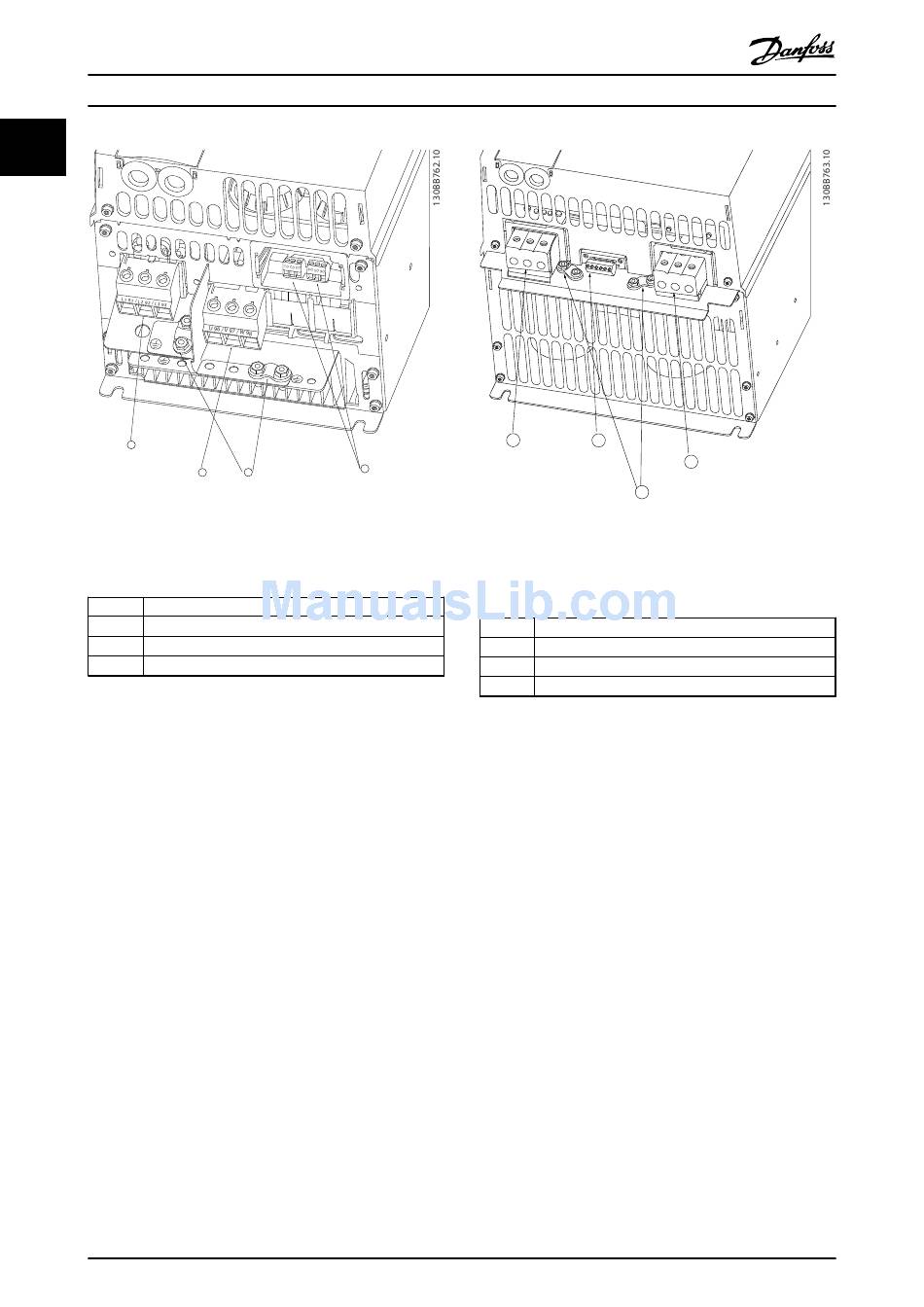

Danfoss VLT HVAC Basic Drive FC 101 Quick Manual page 9

Quick Guide
1 1
95
1
Illustration 1.4 H6 Frame
IP20 380-480 V 30-45 kW
IP20 200-240 V 15-18.5 kW
IP20 525-600 V 22-30 kW
1 Line
2 Motor
3 Earth
4 Relays
Table 1.15
8
®
VLT
99
4
2 3
MG18A402 - VLT
HVAC Basic Drive Quick Guide
1
Illustration 1.5 H7 Frame
IP20 380-480 V 55-75 kW
IP20 200-240 V 22- 30 kW
IP20 525-600 V 45-55 kW
1 Line
2 Relays
3 Earth
4 Motor
Table 1.16
®
is a registered Danfoss trademark
2
4
3
