Setting Up the Matrix N7 Chassis

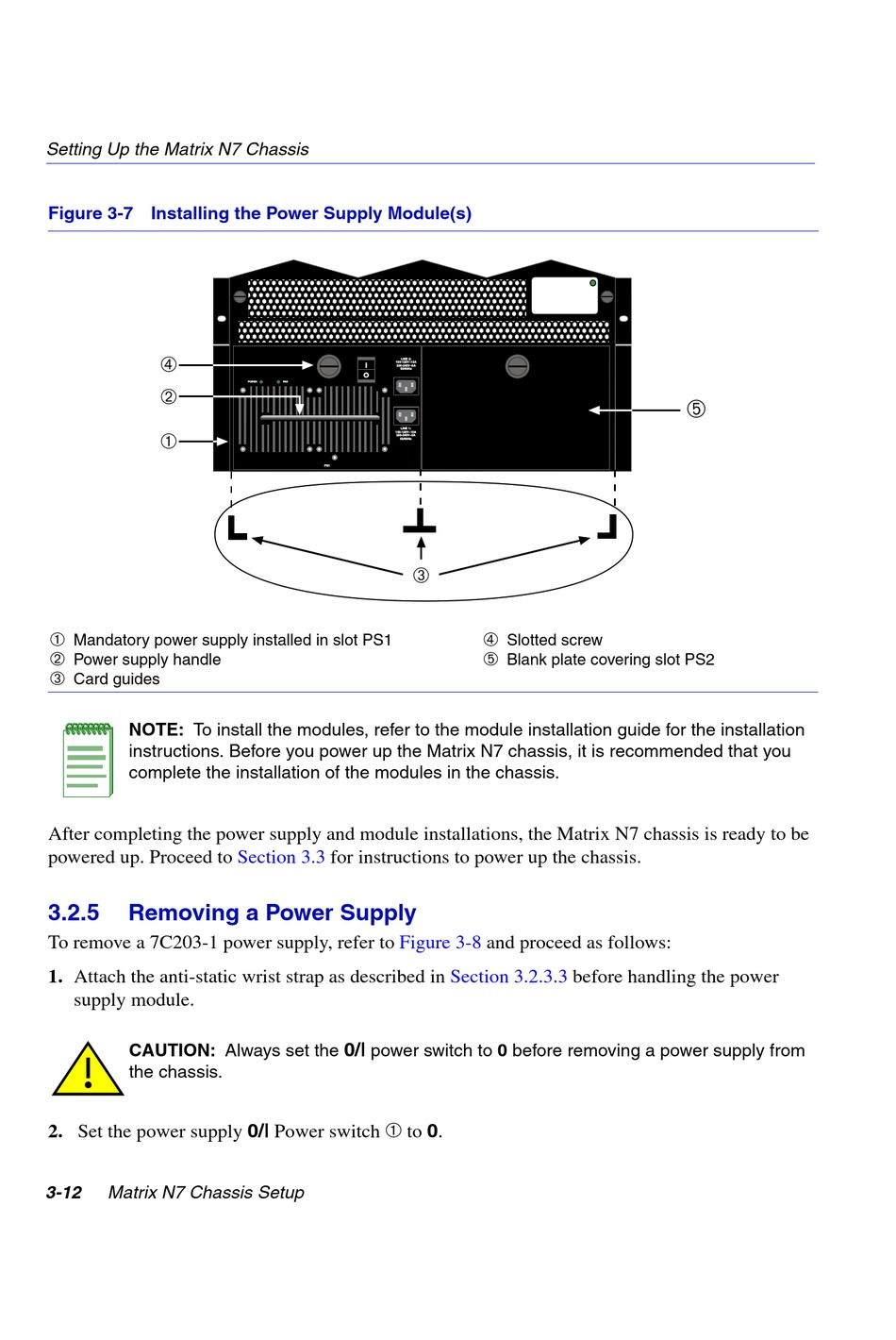

Figure 3-7 Installing the Power Supply Module(s)
Ã
Á
À
➀
Mandatory power supply installed in slot PS1
➁
Power supply handle
➂
Card guides
NOTE: To install the modules, refer to the module installation guide for the installation
instructions. Before you power up the Matrix N7 chassis, it is recommended that you
complete the installation of the modules in the chassis.
After completing the power supply and module installations, the Matrix N7 chassis is ready to be
powered up. Proceed to
3.2.5

Removing a Power Supply

To remove a 7C203-1 power supply, refer to
1. Attach the anti-static wrist strap as described in
supply module.
CAUTION: Always set the
the chassis.
2. Set the power supply 0/| Power switch
3-12 Matrix N7 Chassis Setup
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
Section 3.3 for instructions to power up the chassis.
Figure 3-8
0/|
power switch to 0 before removing a power supply from
➀
Â
➃
Slotted screw
➄
Blank plate covering slot PS2
and proceed as follows:
Section 3.2.3.3 before handling the power
to 0.
Ä
