LANVIEW LEDs
2.3.2
Fan Tray LED
Refer to
Figure 2-2
for the location of the fan tray LED
of the fan tray LED.

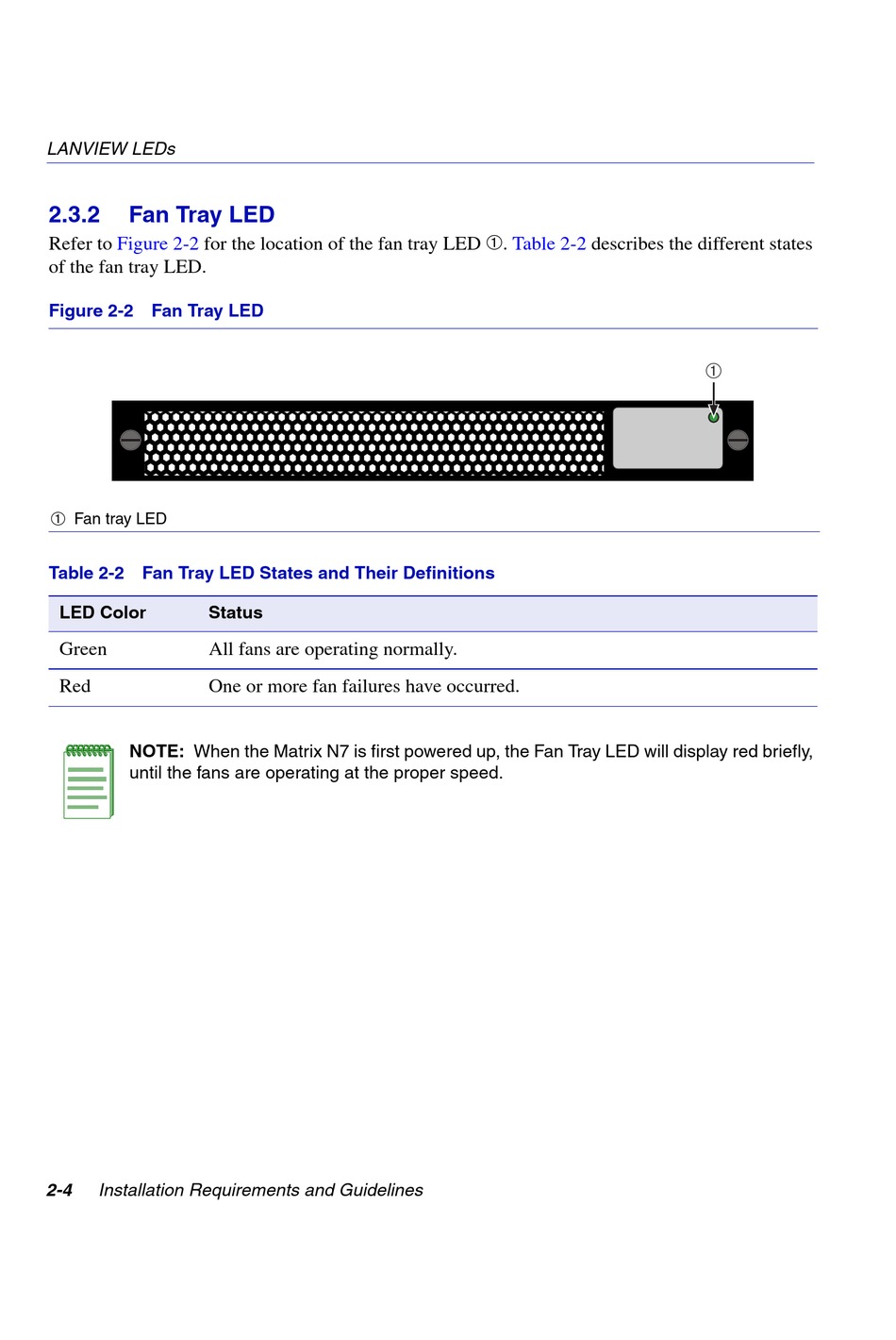

Figure 2-2 Fan Tray LED
➀
Fan tray LED
Table 2-2 Fan Tray LED States and Their Definitions
LED Color
Status
Green
All fans are operating normally.
Red
One or more fan failures have occurred.
NOTE: When the Matrix N7 is first powered up, the Fan Tray LED will display red briefly,
until the fans are operating at the proper speed.
2-4
Installation Requirements and Guidelines
➀
.
Table 2-2
describes the different states
