3.2.2.1 Installing the Rubber Feet
To install the rubber feet, see
1. Place the chassis on a sturdy flat surface to access the bottom of the chassis
2. Remove the four rubber foot/screw assemblies from their plastic bag in the shipping box.
3. Locate the four tapped holes

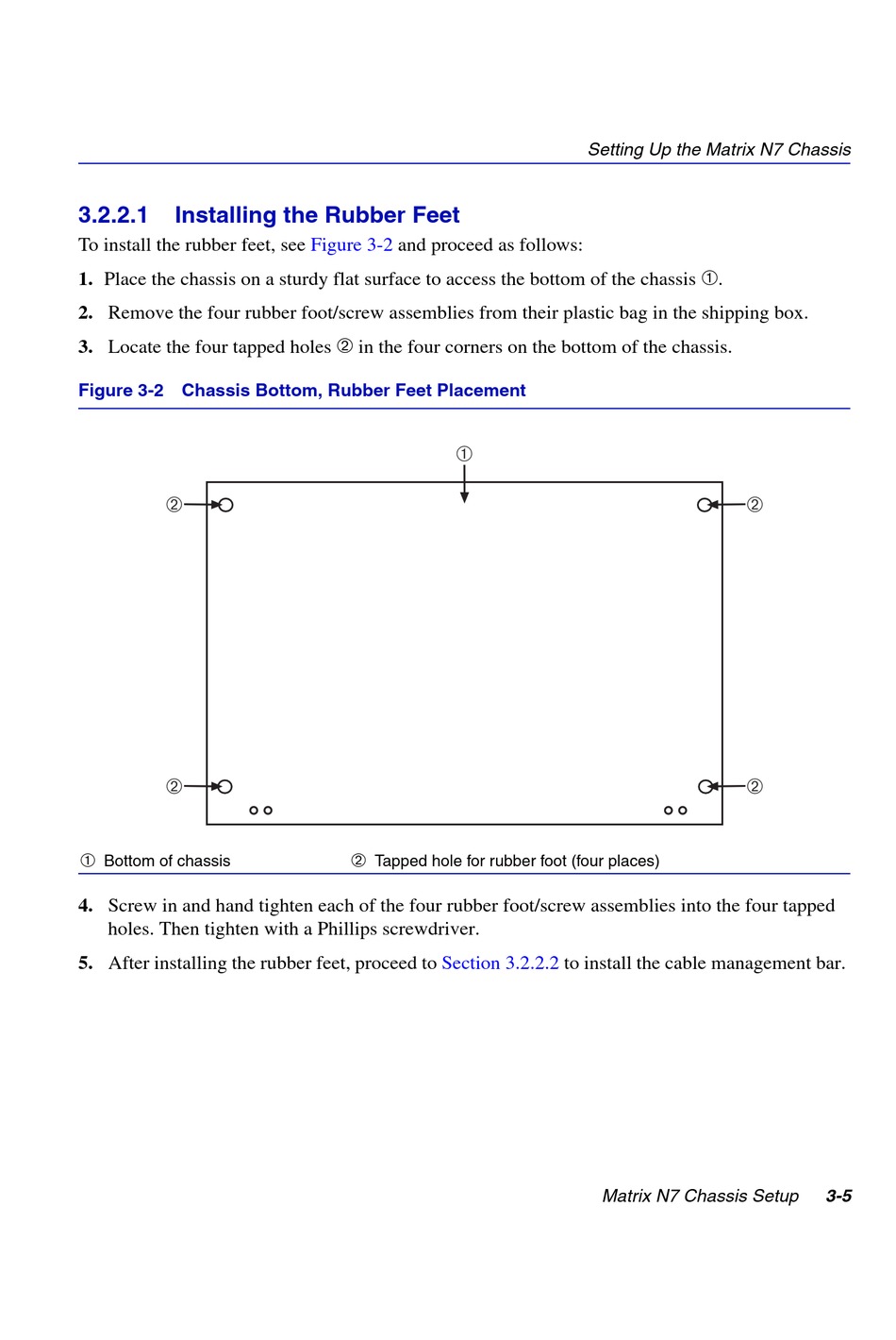

Figure 3-2 Chassis Bottom, Rubber Feet Placement
Á
Á
➀
Bottom of chassis
4. Screw in and hand tighten each of the four rubber foot/screw assemblies into the four tapped
holes. Then tighten with a Phillips screwdriver.
5. After installing the rubber feet, proceed to
Figure 3-2 and proceed as follows:
➁
in the four corners on the bottom of the chassis.
À
➁
Tapped hole for rubber foot (four places)
Section 3.2.2.2
Setting Up the Matrix N7 Chassis
➀
.
to install the cable management bar.
Matrix N7 Chassis Setup
Á
Á
3-5
