Enterasys Matrix N7 7C107 Installation Manual page 45

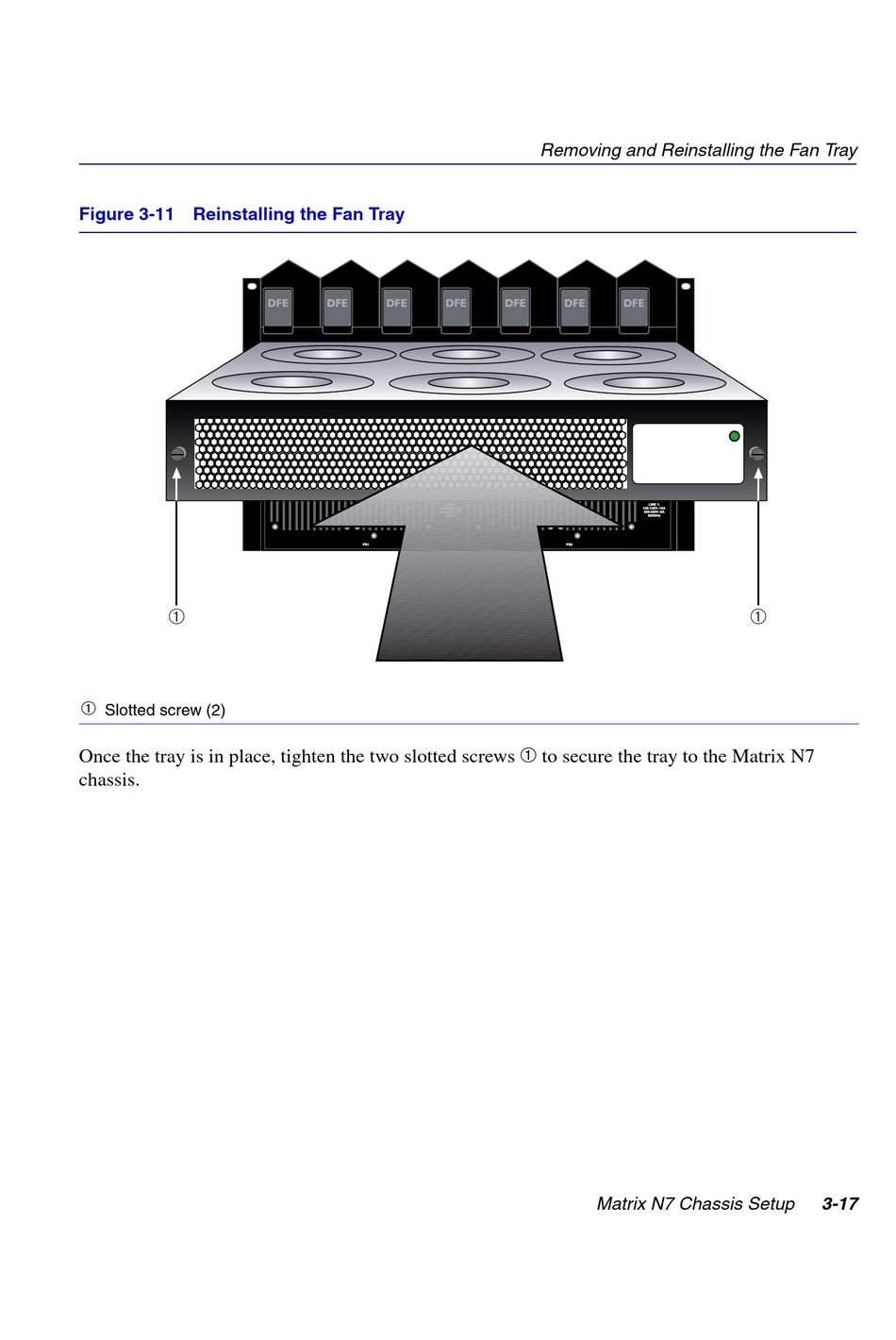

Figure 3-11 Reinstalling the Fan Tray
À
➀
Slotted screw (2)
Once the tray is in place, tighten the two slotted screws
chassis.
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
Removing and Reinstalling the Fan Tray
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2
➀
to secure the tray to the Matrix N7
Matrix N7 Chassis Setup
À
3-17
