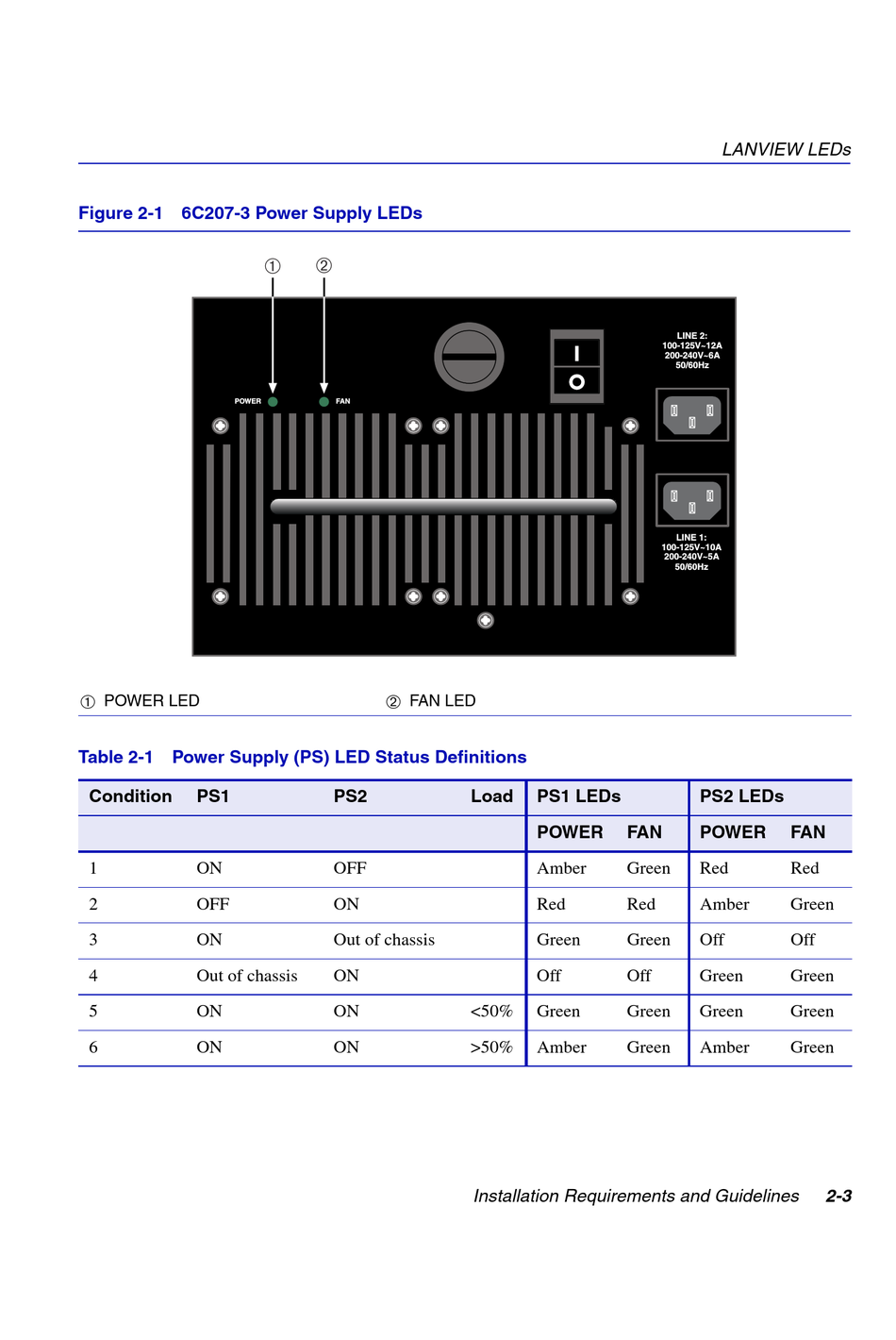

Figure 2-1 6C207-3 Power Supply LEDs
POWER
➀
POWER LED
Table 2-1 Power Supply (PS) LED Status Definitions
Condition PS1
1 ON
2 OFF
3 ON
4 Out of chassis
5 ON
6 ON
Á
À
FAN
➁
FAN LED
PS2
OFF
ON
Out of chassis
ON
ON
ON
Load PS1 LEDs
POWER FAN
Amber Green
Red Red
Green Green
Off Off
<50% Green Green
>50% Amber Green
Installation Requirements and Guidelines
LANVIEW LEDs
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2 LEDs
POWER FAN
Red Red
Amber Green
Off Off
Green Green
Green Green
Amber Green
2-3
