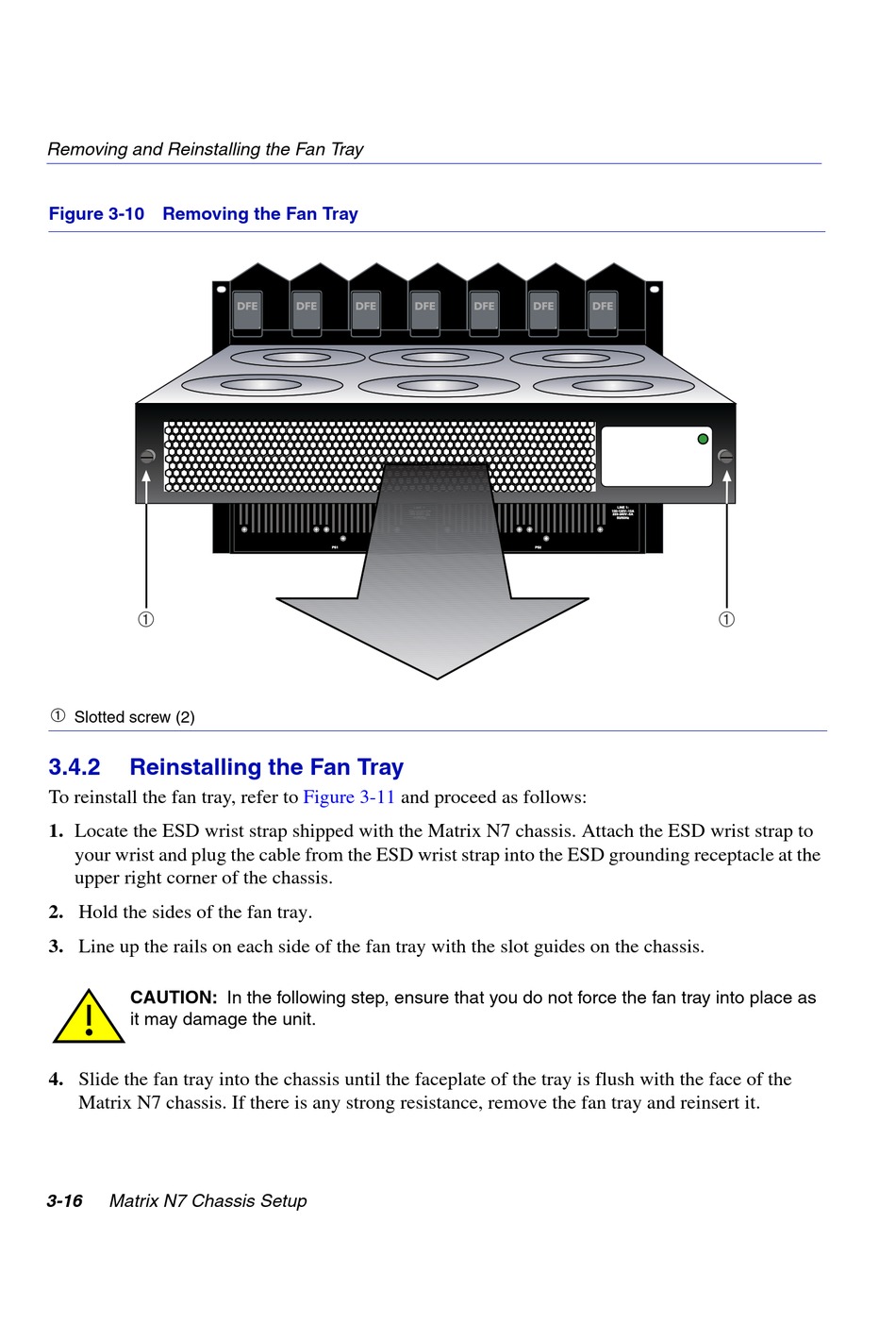

Removing and Reinstalling the Fan Tray
Figure 3-10 Removing the Fan Tray
À
➀
Slotted screw (2)
3.4.2
Reinstalling the Fan Tray
To reinstall the fan tray, refer to
1. Locate the ESD wrist strap shipped with the Matrix N7 chassis. Attach the ESD wrist strap to
your wrist and plug the cable from the ESD wrist strap into the ESD grounding receptacle at the
upper right corner of the chassis.
2. Hold the sides of the fan tray.
3. Line up the rails on each side of the fan tray with the slot guides on the chassis.
CAUTION: In the following step, ensure that you do not force the fan tray into place as
it may damage the unit.
4. Slide the fan tray into the chassis until the faceplate of the tray is flush with the face of the
Matrix N7 chassis. If there is any strong resistance, remove the fan tray and reinsert it.
3-16
Matrix N7 Chassis Setup
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER
FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS1
Figure 3-11
and proceed as follows:
LINE 2:
100-125V~12A
200-240V~6A
50/60Hz
POWER
FAN
LINE 1:
100-125V~10A
200-240V~5A
50/60Hz
PS2
À
