Redundant Lna Installation - Comtech EF Data CSAT-5060 Installation And Operation Manual

C-Band Transceiver
LNA Installation
8.2.2 R
EDUNDANT
Refer to Figure 8-6.
1. Remove the protective cover from the antenna OMT.
2. Install the appropriate gasket (8-3) on the antenna end of the TRF.
a. If only one of the mounting surfaces has a groove, use the half-
b. If both mounting surfaces have grooves, use the full thick gasket
3. Position the LNA switch assembly (with gasket) in place on the
antenna and fasten using the supplied hardware.
LNA I
NSTALLATION
thick gasket.(2)
(5).
8–7

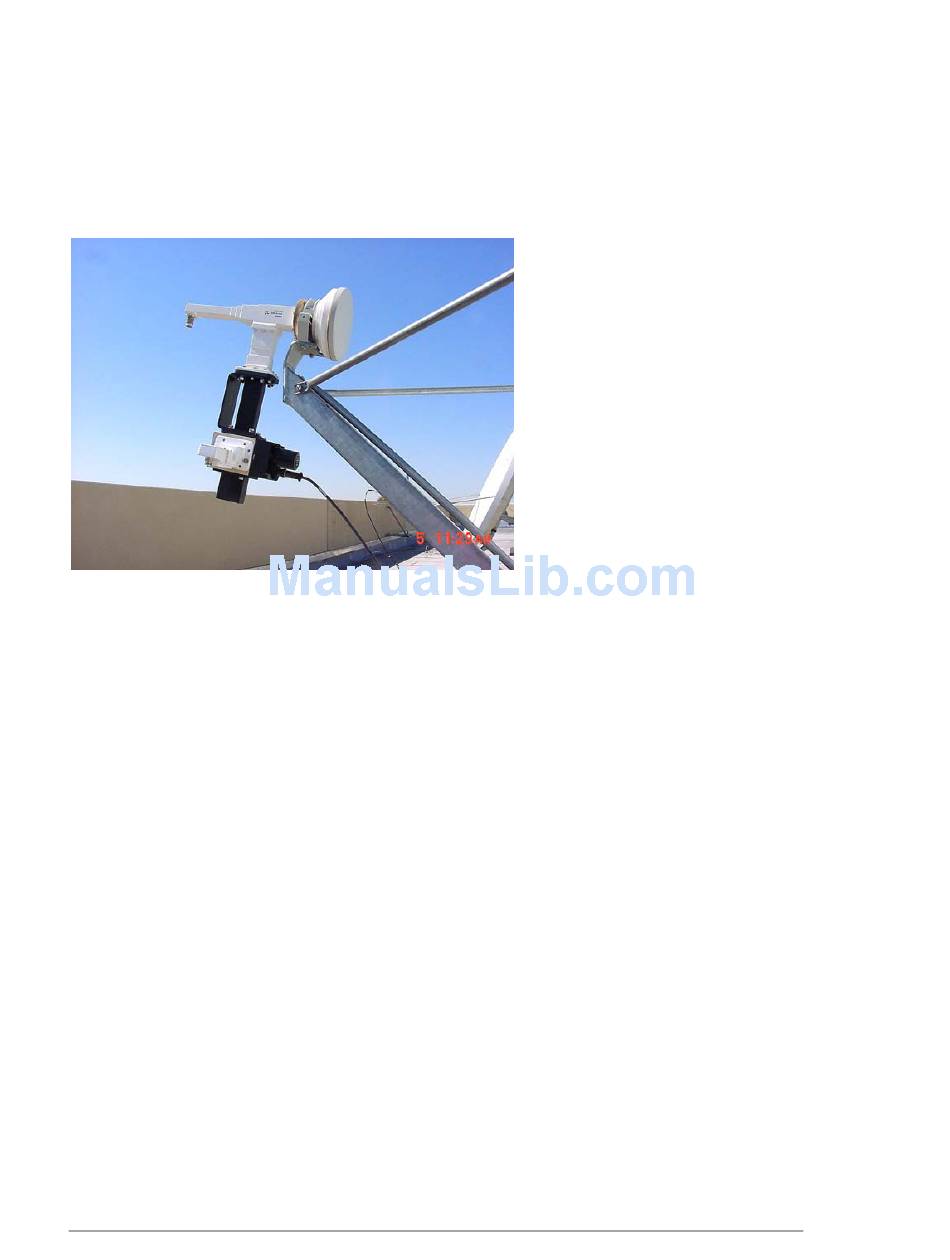

Figure 8-6. Installation of the
Redundant LNA Assembly.
Revision 1
MN/CSAT5060.IOM
