C-Band Transceiver
CSAT-5060 100/125 Watt Installation
Item No.
1
2
3
4
5
6
7
8
9
10
11
Part No.
FP/BR0066
HW/M8FLATSS
HW/M5FLAT
HW/M5LOCK
Not Used
HW/M8SPRINGNUT
HW/M8X1.25X25HEXSS
FP/BR0082
HW/M5X.O8HEXNUT
HW/M5LOCKSS
HW/M5X.08X15MMHEX

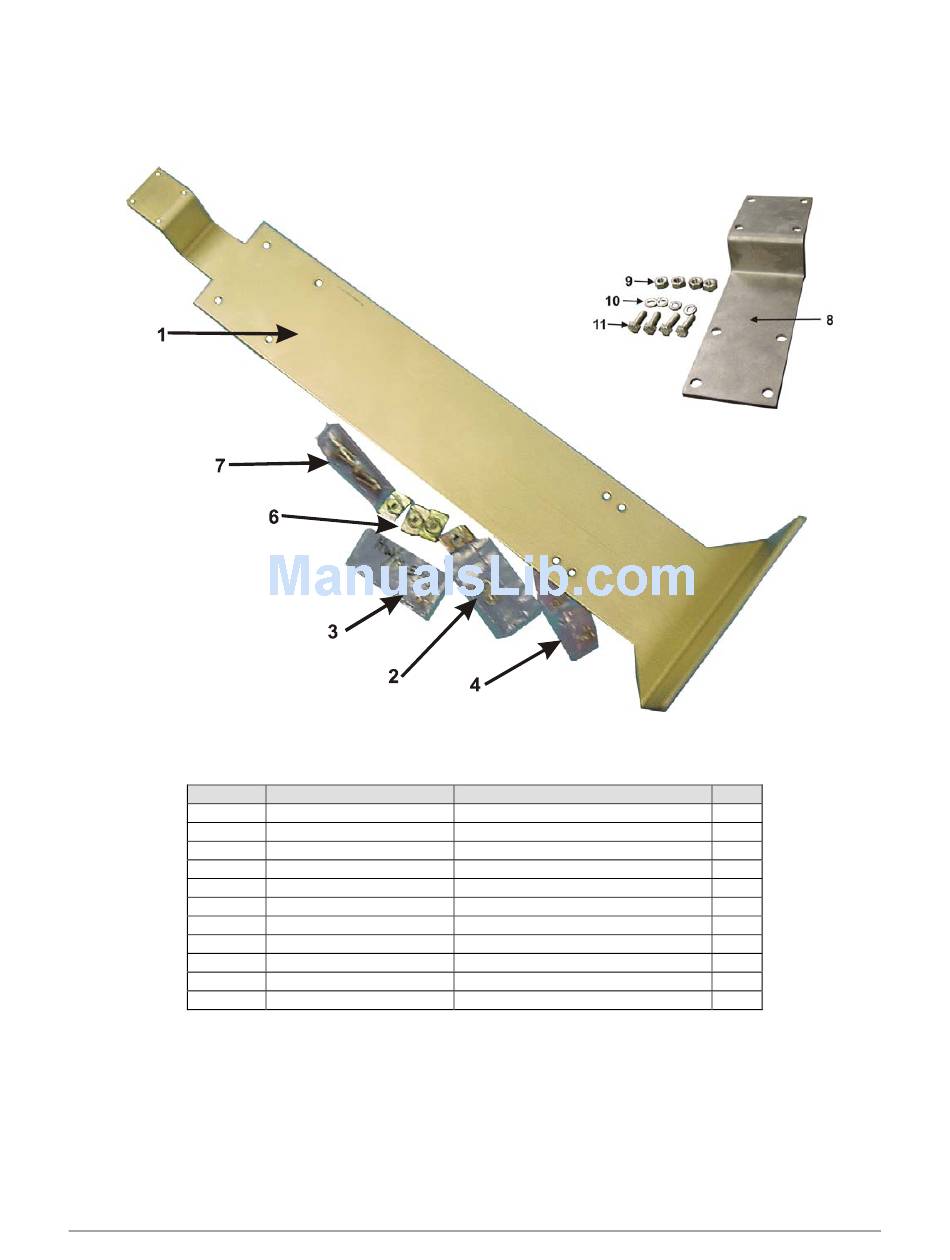

Figure C-8. TX Switch Mounting Kit, AS/0479
Nomenclature
Bracket, Switch Mounting
Washer, Flat M8, SS, Metric
Washer, Flat SS Metric
Washer, Lock SS, Metric
Springnut, M8 X 1.25
Bolt, Hex Head, M8 X 1.25 X 25 SS
Bracket, Switch Mounting
Nut, Hex
Washer, Lock SS, Metric
Bolt, Hex Head
C–10
Revision 1
MN/CSAT5060.IOM
QTY
1
4
8
4
4
4
1
4
4
4
