8. If you use the CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, select Interface (RS-232,
RS-422, 2-wire RS-485, 4-wire RS-485) and Termination Resistor (120Ω, Enable or Disable)

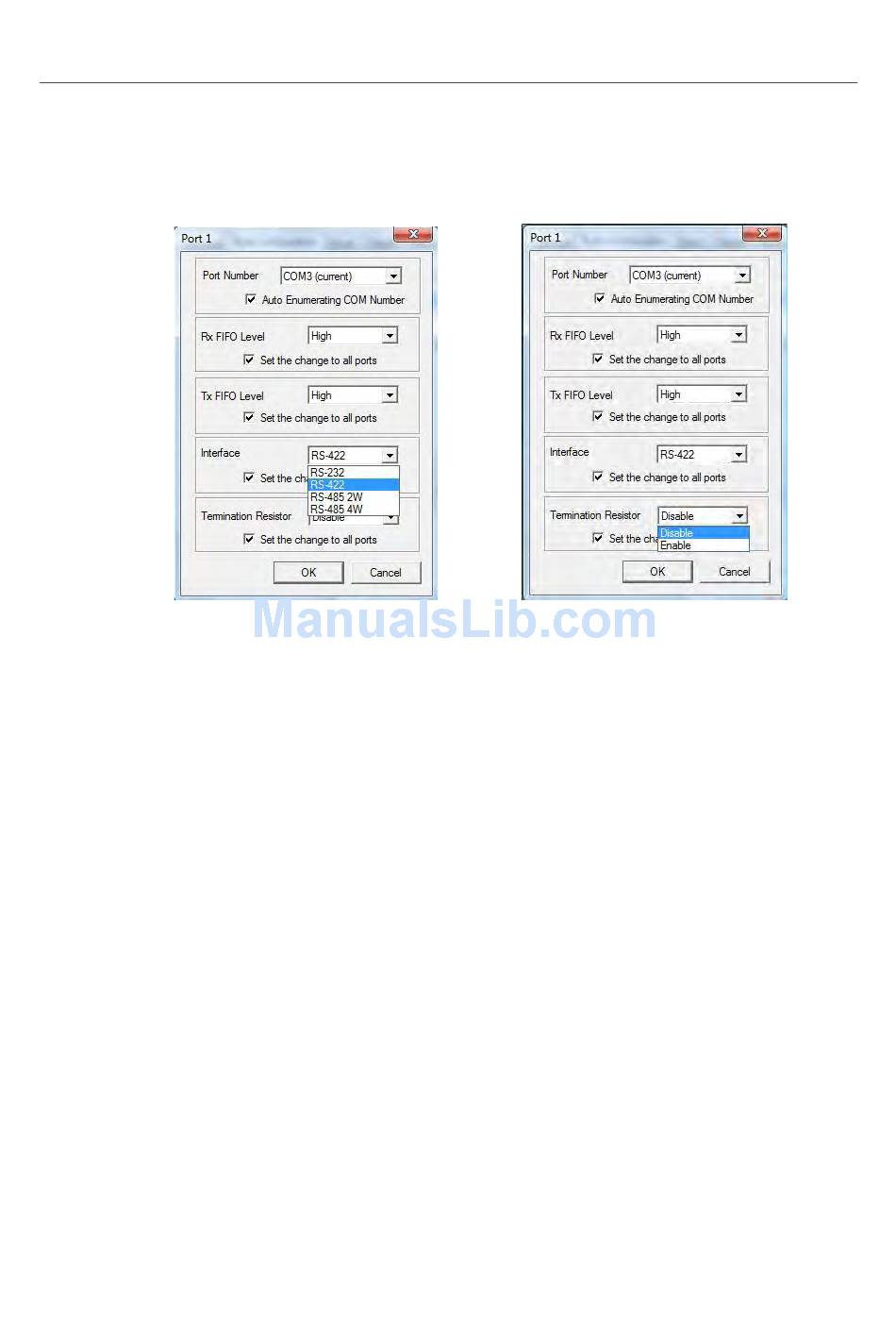

to configure. Take CP-114EL for example. If you would like to configure as RS-422 and no
Termination Resistor, please see figures below. However, if you use the CP-118EL, please
refer to Chapter 2 to configure Interface by DIP switch and Termination Resistor by jumper.
9. Click OK to save the port settings, and then click OK in the Property window to finish the
port settings procedure.
Using Event Log
To use the Event Log to check the installation of your MOXA boards, click Start → Settings
→ Control Panel → Administrative Tools → Event Viewer to enter the Event Viewer utility.
Look under the System category to find the latest information relevant to Moxa's drivers.
3-13
Software Installation
