PCI Express Board User's Manual

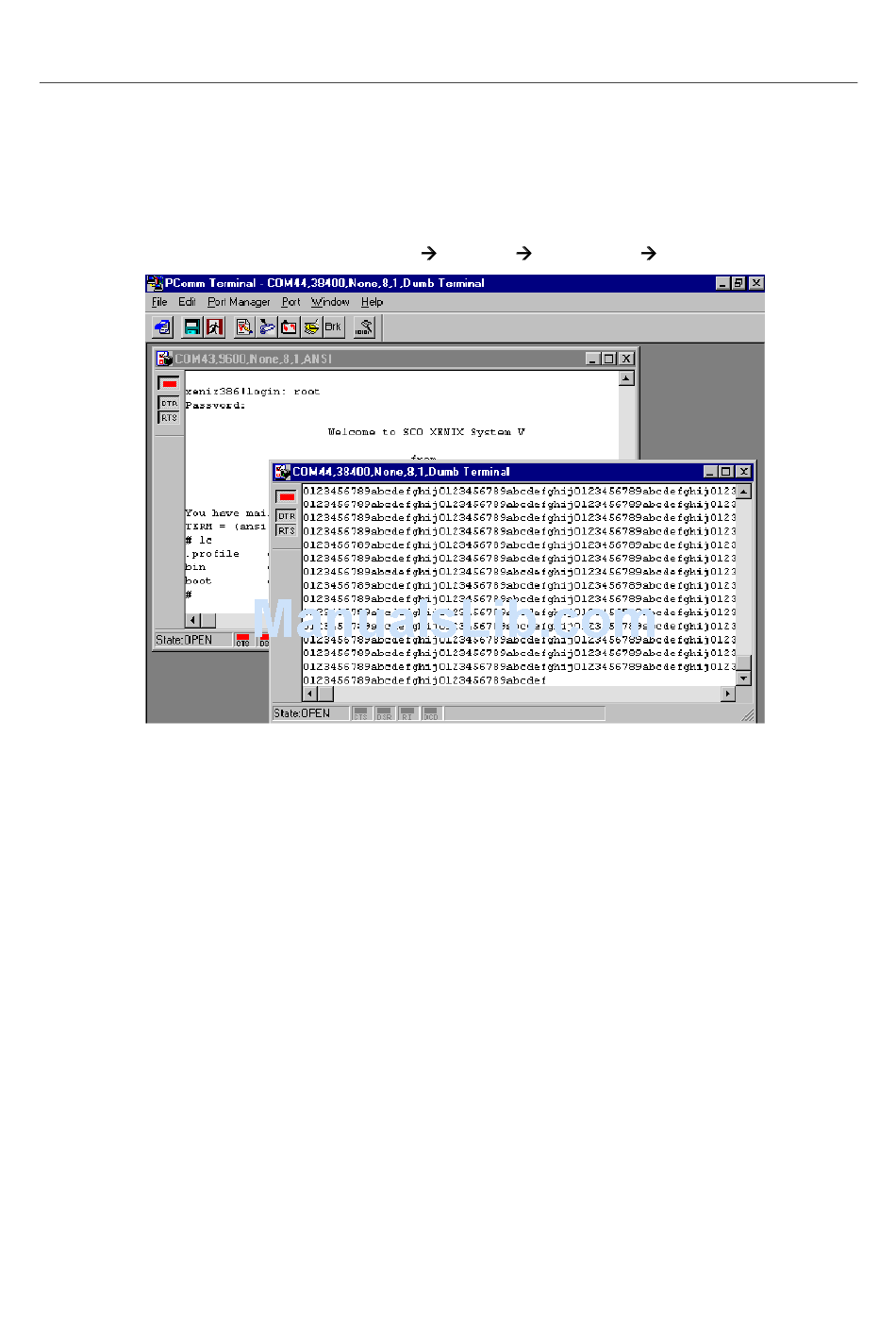

Terminal Emulator

Use Terminal Emulator to connect to your PC's serial ports to check if data is being transmitted
correctly. Terminal Emulator features multi-windows, and supports VT100 and ANSI terminal
types. You can transfer data interactively, send patterns periodically, and transfer files using
ASCII, XMODEM, YMODEM, ZMODEM, and KERMIT protocols.
To run Terminal Emulator, click Start

RS-485 Programming

If you are using your CP-118EL Series board for RS-485 applications, in addition to reading this
section, you should also refer to the "Connection Cables and Cable Wiring" chapter for more
details about using RS-485.
The CP-118EL Series supports 2-wire half-duplex RS-485 and 4-wire full duplex RS-485
communication. Ports configured for 2-wire RS-485 use the Data+ and Data- pins for both
transmitting and receiving data. Moxa's own ADDC™ (Automatic Data Direction Control)
technology is used to switch between transmission and reception.

ADDC™

ADDC™ is the best method for switching between transmission and reception when using 2-wire
RS-485.
When using ADDC™, additional code is not required to switch between data transmission and
reception, since the board's built-in intelligent hardware mechanism automatically manages the
switching mechanism. RS-485 programming using ADDC™ mode is just as simple and
straightforward as RS-232 or RS-422 programming.
Program PComm Lite
4-4
Serial Programming Tools
Terminal Emulator.
