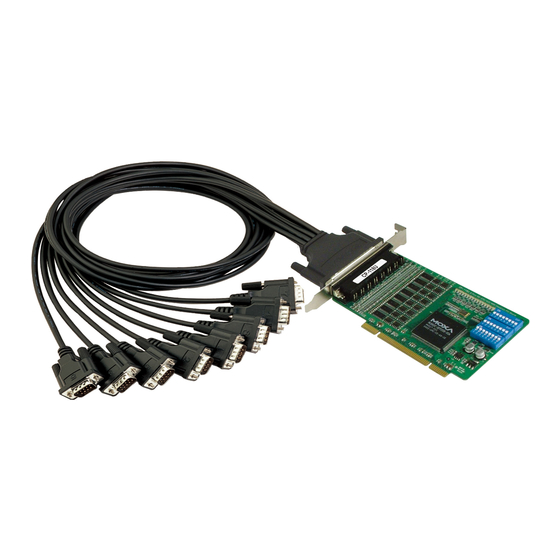

Universal pci board, multiport serial board for pci and pci-x bus
Hide thumbs Also See for CP-118U:
Table of Contents

Advertisement

Quick Links

Universal PCI Board User's Manual
Multiport Serial Board for PCI and PCI-X Bus
Ninth Edition, December 2012
www.moxa.com/product
© 2012 Moxa Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-118U and is the answer not in the manual?

Questions and answers

Related Manuals for Moxa Technologies CP-118U

Summary of Contents for Moxa Technologies CP-118U

  • Page 1 Universal PCI Board User’s Manual Multiport Serial Board for PCI and PCI-X Bus Ninth Edition, December 2012 www.moxa.com/product © 2012 Moxa Inc. All rights reserved.
  • Page 2 Universal PCI Board User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2012 Moxa Inc. All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc.

  • Page 3: Table Of Contents

    DB25 (Female): RS-485 (2-wire)....................5-6 CP-114UL ............................5-7 DB44 (Female): RS-232 ....................... 5-7 DB44 (Female): RS-422, RS-485 (4-wire) ..................5-7 DB44 (Female): RS-485 (2-wire)....................5-8 CP-118U ............................5-8 DB62 (Female): RS-232 ....................... 5-9 DB62 (Female): RS-422, RS-485 (4-wire) ..................5-9...
  • Page 4 DB62 (Female): RS-485 (2-wire)....................5-10 CP-118U-I ............................5-11 DB78 (Female): RS-232 ......................5-11 DB78 (Female): RS-422, RS-485 (4-wire) ..................5-12 DB78 (Female): RS-485 (2-wire)....................5-12 CP-132UL, CP-132UL-I ........................5-13 DB25 (Female): RS-422 ......................5-13 DB25 (Female): RS-485 (4-wire)....................5-13 DB25 (Female): RS-485 (2-wire)....................5-14 CP-134U, CP-134U-I .........................

  • Page 5: Introduction

    Introduction The following topics are covered in this chapter:  Overview  Applications  Package Checklist  Product Features  Product Specifications  Installation Guide...

  • Page 6: Overview

    128-byte Tx/Rx FIFO, and well-designed device drivers that have been fine-tuned. This allows Moxa UPCI boards to support data transmission speeds of up to 921.6 Kbps. The following UPCI multiport serial boards are available from Moxa: 8 Ports CP-118U: 8 ports, RS-232/422/485 CP-118U-T: 8 ports, RS-232/422/485, wide temperature...
  • Page 7 Industio—The Industrial Multiport Async Solution The Industio Series of multiport serial boards includes the CP-118U-I, CP-118U, CP-138U-I, CP-138U, CP-114UL, CP134U, CP-134U-I, CP-132UL, and CP-132UL-I. These boards are designed for industrial use, with serial ports that can be configured independently for RS-232, RS-422, or RS-485 operation. Industio boards provide a reliable communication link over distances of up to 4000 ft and support point-to-point full-duplex or multi-drop half-duplex.

  • Page 8: Applications

    Universal PCI Board Introduction Universal PCI For maximum compatibility with the PCI local bus specification, UPCI boards support both 3.3V and 5V PCI connector types. The 32/64-bit PCI local bus specification specifies both a 3.3V/5V and 32/64-bit slot. Operating System Support Moxa UPCI boards are compatible with most major industrial platforms, including Windows, DOS, and Linux.

  • Page 9: Product Features

    2 KV optical isolation protection (on “I” models only) • -40 to 85°C wide temperature (on “T” models only) Product Specifications Hardware I/O Controller: MU860 (compatible with 16C550C) Connector Type: CP-118U-I: Female DB78 CP-118U: Female DB62 CP-138U-I: Female DB78 CP-138U: Female DB62...
  • Page 10 Universal PCI Board Introduction Interface Bus: 32-bit Universal PCI No. of Ports: 8 Ports: CP-118U/CP-118U-I CP-138U/CP-138U-I CP-1168U 4 Ports: CP-114UL/CP-114UL-I CP-134U/CP-134U-I CP-104UL/CP-104JU POS-104UL: 2 Ports: CP-112UL/CP-112UL-I CP-132UL/CP-132UL-I CP-102UL CP-102U/CP-102UF Max. No. of Boards: Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND...

  • Page 11: Installation Guide

    Select serial transmission mode. For certain models, you will need to set onboard DIP switches to select the serial transmission mode for each port. This applies to the CP-118U-I, CP-138U-I, CP-118U, CP-138U, CP-114UL, CP-114UL-I, CP-134U, CP-134U-I, CP-112UL, CP-112UL-I, CP-132UL, CP-132UL-I, POS-104UL, and CP-102UF.

  • Page 12: Hardware Installation

    Hardware Installation The following topics are covered in this chapter:  Overview  Configuring the Board and Dimension  CP-118U/CP-118U-I  CP-138U/CP-138U-I  CP-168U  CP-114UL/CP-114UL-I  CP-134U/CP-134U-I  CP-104UL  CP-104JU  POS-104UL  CP-112UL/CP-112UL-I  CP-132UL/CP-132UL-I  CP-102UL ...

  • Page 13: Overview

    IRQ number and I/O addresses, you will need to install the board before you install the drivers. You can install up to 4 UPCI boards in one system, as long as sufficient I/O address and IRQ number resources are available. Configuring the Board and Dimension 8 Ports CP-118U/CP-118U-I...

  • Page 14: Cp-138U/Cp-138U-I

    Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP8. For CP-118U-I, JP1/2/3/4/5/6/7/8 corresponds to serial port 1/2/3/4/5/6/7/8, respectively. For CP-118U, JP1/2/3/4/5/6/7/8 corresponds to serial port 8/7/6/5/4/3/2/1, respectively. Short the jumper pins to activate the termination resistor;...
  • Page 15 Universal PCI Board Hardware Installation Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP8. For CP-138U-I, JP1/2/3/4/5/6/7/8 corresponds to serial port 1/2/3/4/5/6/7/8, respectively. For CP-138U, JP1/2/3/4/5/6/7/8 corresponds to serial port 8/7/6/5/4/3/2/1, respectively. Short the jumper pins to activate the termination resistor;...

  • Page 16: Cp-114Ul/Cp-114Ul-I

    Universal PCI Board Hardware Installation CP-168U This board does not require configuration. 4 Ports CP-114UL/CP-114UL-I...
  • Page 17 Universal PCI Board Hardware Installation Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP4. For CP-114UL, JP1/2/3/4 corresponds to serial port 1/2/3/4, respectively. For CP-114UL-I, JP1/2/3/4 corresponds to serial port 4/3/2/1, respectively. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.

  • Page 18: Cp-134U/Cp-134U-I

    Universal PCI Board Hardware Installation CP-134U/CP-134U-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 through JP4. For CP-134U, JP1/2/3/4 corresponds to serial port 1/2/3/4, respectively. For CP-134U-I, JP1/2/3/4 corresponds to serial port 4/3/2/1, respectively. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.
  • Page 19 Universal PCI Board Hardware Installation RS-422 or RS-485 mode: RS-232 mode: Use the jumper to cover the left Use the jumper to cover the right two columns of jumper pins. two columns of jumper pins. CP-104UL This board does not require configuration.

  • Page 20: Pos-104Ul

    Universal PCI Board Hardware Installation CP-104JU This board does not require configuration. POS-104UL The onboard jumpers are used to specify the pin 9 power signal for each serial port. Step a Bus power External power The top row of jumper pins selects the source of 12V power; the bottom row of jumper pins selects the source of 5V power: If 5V or 12V external power is enabled, you will need to connect the cable from the back of POS-104UL to the...

  • Page 21: Cp-112Ul/Cp-112Ul-I

    Universal PCI Board Hardware Installation CP-112UL/CP-112UL-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 and JP2. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.

  • Page 22: Cp-132Ul/Cp-132Ul-I

    Universal PCI Board Hardware Installation CP-132UL/CP-132UL-I Onboard termination resistors can be activated individually for each serial port using jumpers JP1 and JP2. JP1 corresponds to serial port 1. Short the jumper pins to activate the termination resistor; leave the jumper pins open to bypass the termination resistor.
  • Page 23 Universal PCI Board Hardware Installation CP-102UL This board does not require configuration. CP-102U This board does not require configuration. 2-12...
  • Page 24 Universal PCI Board Hardware Installation CP-102UF The onboard DIP switches are used to configure the CP-102UF for “Ring mode” or “Normal”. When using the CP-102UF board, your PC can be included as one node of a fiber ring formed using Moxa’s own TCF-142 serial-to-fiber converter.

  • Page 25: Plugging The Board Into An Expansion Slot

    Universal PCI Board Hardware Installation Plugging the Board into an Expansion Slot ATTENTION Safety First! To avoid damaging your system and board, make sure your PC’s power is turned off before installing your Universal PCI Board. Step 1: Power off the PC. Step 2: Shut off the power to any peripheral devices and remove the PC’s cover.

  • Page 26: Software Installation

    Software Installation This chapter gives installation, configuration, and update/removal procedures for the driver for Windows Server 2012 (64-bit), Windows 8 (32-bit/64-bit), Windows 7 (32-bit/64-bit), Windows 2003/XP/Vista/2008 (32-bit/64-bit), Windows 2000, WinCE, DOS, Linux (32-bit/64-bit), and SCO. Before proceeding with the software installation, complete the hardware installation discussed in the previous chapter, “Hardware Installation.”...

  • Page 27: Windows Drivers

    Universal PCI Board Software Installation Windows Drivers Moxa provides drivers that allow you to use the following serial board products under Windows 7/8, Windows 2008/Vista/2003/XP/2000. The overall procedure for installing the drivers is shown on the right. A newly installed board will be automatically detected by the operating system.
  • Page 28 Universal PCI Board Software Installation 2. Select Browse my computer for device software to continue. 3. Select Search for driver software in this location, select Include subfolders, and then click Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-104U Series\Software\Windows 8\x86 folder on the CD.
  • Page 29 Universal PCI Board Software Installation 4. Wait while the driver software is installed. The next window shows the model name of the board, and indicates that Windows has completed the driver installation. Click Close to proceed with the rest of the installation procedure.
  • Page 30 Universal PCI Board Software Installation 6. Select Browse my computer for device software to continue. 7. Select Search for driver software in this location, select Include subfolders, and then click Browse. If the system is a 32-bit (x86) platform, navigate to the \CP-104U Series\Software\Windows 8\x86 folder on the CD.
  • Page 31 Universal PCI Board Software Installation 8. After all files have been copied to the system, window showing Windows has successfully updated your driver software will open to indicate that it has finished installing MOXA Port 0. The Port installation procedure is complete when Port 0 has been set up.
  • Page 32 Universal PCI Board Software Installation Configuring the Ports After the driver has been installed, use Device Manager to configure the CP-104U serial ports. 1. Expand the Multi-port serial adapters tab, right click MOXA CP-104U Series (PCI Bus), and then click Properties to open the board’s configuration panel.
  • Page 33 Universal PCI Board Software Installation 2. Click the port you would like to configure to highlight it, and then click Port Setting. 3. Select a COM number for the port from the Port Number pull-down list. Select the Auto Enumerating COM Number option to map subsequent ports automatically.
  • Page 34 Universal PCI Board Software Installation 4. Select an Rx FIFO Trigger from the Rx FIFO Level pull-down list. Rx FIFO trigger levels of High, Middle, and Low are available, with the default set to High (120 bytes). Select Set the change to all ports option to apply this Rx FIFO Trigger to all ports.
  • Page 35 Universal PCI Board Software Installation 2. Expand Multi-port Serial Adapters tab, right click CP-104U Series, and then click Uninstall to remove the UPCI driver. 3. The Device Manager window refreshes automatically, showing that the driver and ports for the CP-104U Series board have been removed.

  • Page 36: Windows 2008/Vista (32-Bit/64-Bit)

    Windows will automatically detect and install any additional board(s) at bootup. In this case, you may proceed directly to configuring the ports. Note that these instructions use the CP-118U as an example. The procedure for installing all models is the same.
  • Page 37 Universal PCI Board Software Installation 3-12...
  • Page 38 Universal PCI Board Software Installation 2. Select I don’t have the disc. Show me other options. 3. Select Browse my computer for driver software (advanced). 3-13...
  • Page 39 4. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software). For 32-bit (x86) platforms, select the \Windows 2008_Vista\x86 folder.
  • Page 40 Universal PCI Board Software Installation 6. After the drivers have been installed, click Close to exit the wizard. Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 7.
  • Page 41 \Software directory (e.g., under \CP-118U Series\Software). For 32-bit (x86) platforms, select the \Windows 2008_Vista\x86 folder. For 64-bit (x64) platforms, select the \Windows 2008_Vista\x64 folder. After selecting the folder, click Next to continue.
  • Page 42 Universal PCI Board Software Installation 10. If you receive a warning message stating that the Windows can’t verify the publisher of the software, select Install this driver software anyway. 11. After the drivers have been installed, click Close to exit the wizard. The other serial ports will automatically install in the background.
  • Page 43 Universal PCI Board Software Installation Verifying the Installation You can use Windows Device Manager to verify proper installation. 1. Under My Computer, click System Properties. 2. In the System window, click Device Manager. 3-18...
  • Page 44 3. In the Device Manager window, you should see the UPCI board under Multi-port serial adapters (CP-118U in this example). You should also see Moxa communication ports under Ports (COM & LPT). 4. If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of your module or serial ports was not successful.
  • Page 45 Universal PCI Board Software Installation Configuring the Ports After the board and serial port drivers are installed, the board’s Properties window will appear. The system will map the ports automatically. You may be prompted to take care of port configuration if other Moxa boards have been installed.
  • Page 46 Universal PCI Board Software Installation Disabling the Board 1. Right-click My Computer and select Properties in the context menu. 2. In the System window, click Device Manager. 3. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu.

  • Page 47: Windows 2003/Xp

    1. Right-click My Computer and select Properties in the context menu. 2. In the System window, click Device Manager. 3. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu. 4. A confirmation dialog will appear. Click OK to uninstall the device.
  • Page 48 Windows will automatically detect and install any additional board(s) at bootup. In this case, you may proceed directly to configuring the ports. Note that these instructions use the CP-118U as an example. The procedure for installing all models is the same.
  • Page 49 Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software). For 32-bit (x86) platforms, select the \Windows XP_2003\x86 folder. For 64-bit (x64) platforms, select the \Windows XP_2003\x64 folder. After selecting the folder, click Next to continue.
  • Page 50 Universal PCI Board Software Installation 4. If you see a warning that the software has not passed Windows Logo testing, click Continue Anyway. 5. Windows will install the drivers. When the installation is complete, click Finish. 3-25...
  • Page 51 Universal PCI Board Software Installation Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 1. When prompted to connect to Windows Update, select No, not this time and click Next to continue. 3-26...
  • Page 52 3. Select Search for the best driver in these locations and Include this location in the search. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software).
  • Page 53 Universal PCI Board Software Installation 4. If you see a warning that the software has not passed Windows Logo testing, click Continue Anyway. 5. After the drivers for the serial port have been installed, click Finish to close the wizard. Repeat this process for the remaining serial ports.
  • Page 54 Universal PCI Board Software Installation Verifying the Installation You can use Windows Device Manager to verify proper installation of the board. 1. Right-click My Computer and select Properties in the context menu. 2. In the Hardware tab, click Device Manager. 3-29...
  • Page 55 3. In the Device Manager window, you should see your UPCI board under Multi-port serial adapters (CP-118U in this example). You should also see Moxa communication ports under Ports (COM & LPT). 4. If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of the board was not successful.
  • Page 56 Universal PCI Board Software Installation Configuring the Ports After the board and serial port drivers are installed, the board’s Properties window will appear. The system will map the ports automatically. You may be prompted to take care of port configuration if other Moxa boards have been installed.
  • Page 57 Universal PCI Board Software Installation Using PComm PComm Diagnostic is a useful program for checking the board’s status. It provides internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, and other items. You can use PComm Diagnostic to verify that the module and serial ports are working properly.
  • Page 58 Universal PCI Board Software Installation 3. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu. This will disable the board. Uninstalling the Board 1. Right-click My Computer and select Properties in the context menu. 2.

  • Page 59: Windows 2000

    Universal PCI Board Software Installation 3. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu. 4. A confirmation dialog will appear. Click OK to uninstall the device. Windows 2000 This chapter explains how to install, configure, update, and remove the board drivers for Windows 2000. The...
  • Page 60 Windows will automatically detect and install any additional board(s) at bootup. In this case, you may proceed directly to configuring the ports. Note that these instructions use the CP-118U as an example. The procedure for installing all models is the same.
  • Page 61 4. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software). Select the \Windows 2K folder and click Next to continue. 3-36...
  • Page 62 Universal PCI Board Software Installation 5. After the wizard has located the driver files, click Next to proceed. 6. If you see a warning that the digital signature has not been found, click Yes to proceed. 3-37...
  • Page 63 Universal PCI Board Software Installation 7. Windows will install the drivers. When the installation is complete, click Finish. Installing the Ports After the board and drivers have been installed, an installation wizard will guide you through installation of the newly added serial ports, starting with port 0. 1.
  • Page 64 4. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-118U Series\Software). Select the \Windows 2K folder and click Next to continue. 3-39...
  • Page 65 Universal PCI Board Software Installation 5. After the wizard has located the driver files, click Next to proceed. 6. After the drivers have been installed, click Finish to exit the wizard. The other serial ports will automatically install in the background. Verifying the Installation You can use Windows Device Manager to verify proper installation of the board.
  • Page 66 3. In the Device Manager window, you should see your UPCI board under Multi-port serial adapters (CP-118U in this example). You should also see Moxa communication ports under Ports (COM & LPT). 4. If you see any special marks, such as a question mark or an exclamation mark, next to the Moxa items, the installation of the board was not successful.
  • Page 67 Universal PCI Board Software Installation Configuring the Ports After the board and serial port drivers are installed, the board’s Properties window will appear. The system will map the ports automatically. You may be prompted to take care of port configuration if other Moxa boards have been installed.
  • Page 68 Universal PCI Board Software Installation Using PComm PComm Diagnostic is a useful program for checking the board’s status. It provides internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, and other items. You can use PComm Diagnostic to verify that the module and serial ports are working properly.
  • Page 69 Universal PCI Board Software Installation 3. In Device Manager, right-click the UPCI board under Multi-port serial adapters and select Disable in the context menu. This will disable the board. Uninstalling the Board 1. Right-click My Computer and select Properties in the context menu. 2.

  • Page 70: Windows Nt

    Universal PCI Board Software Installation 3. Right-click the UPCI board under Multi-port serial adapters (CP-118U in this example) and select Uninstall in the context menu. 4. At the warning prompt, click OK to uninstall the device. Windows NT This chapter explains how to install, configure, update, and remove the board drivers for Windows NT. The...
  • Page 71 Locate the appropriate folder for your board’s drivers on the Document & Software CD. The NT drivers will be located under the product folder in the \Software\WinNT directory (e.g., under \CP-118U Series\Software). Copy this folder to the PC’s hard disk and remember its location.
  • Page 72 Universal PCI Board Software Installation 3. After the files have been installed, a configuration panel will open. This is where boards are installed, configured, and removed. If another board has already been installed on the system, it will already be listed. Windows NT does not automatically detect Moxa UPCI boards, so you will need to click Add for a newly installed board.
  • Page 73 Universal PCI Board Software Installation 5. The board will now appear in the configuration panel (CP-168U Series in this example). Click OK to return to the Network applet. After that, click OK again to exit the Network applet 6. Restart the PC. After you have logged back into Windows NT, you may check the event log issued by the Moxa driver to see if the board’s ports have been initialized successfully.
  • Page 74 Universal PCI Board Software Installation 2. The configuration panel will open with a list of installed boards. Select your board and click Property. Up to 4 Moxa UPCI boards can be installed at a time. 3-49...
  • Page 75 Universal PCI Board Software Installation 3. Select a port to configure and click Port Setting. 4. Under Port Number, select a COM number to assign to the serial port. Select Auto Enumerating COM Number to map subsequent ports in numerical order. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2.
  • Page 76 Universal PCI Board Software Installation 5. Click OK to approve the settings for the selected port. Continue in the same way to configure the other ports. When you have finished setting up the ports, click OK to close the Properties window and apply the new port settings.

  • Page 77: Windows 95/98/Me

    Windows 95/98/ME This chapter explains how to install, configure, update, and remove the board drivers for Windows 95/98/ME. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/CP-112UL-I CP-114UL/CP-114UL-I CP-118U/CP-118U-I CP-132UL/CP-132UL-I CP-134U/CP-134U-I CP-138U/CP-138U-I CP-102UL CP-104UL CP-168U CP-102U CP-104JU...
  • Page 78 Universal PCI Board Software Installation ATTENTION The following steps will not be necessary if a Moxa UPCI board was already installed on your computer. Windows will automatically detect and install any additional board(s) at bootup. In this case, you may proceed directly to configuring the ports.
  • Page 79 Universal PCI Board Software Installation 3. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-168U \Software). Select the \Win9x folder and click OK to continue. 4.
  • Page 80 Universal PCI Board Software Installation 2. Select Display a list... and click Next. 3. Select Other Devices and click Next. 4. Select Have Disk… 3-55...
  • Page 81 Universal PCI Board Software Installation 5. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers for all operating systems are located under the product folder in the \Software directory (e.g., under \CP-168U \Software). Select the \Win9x folder and click OK to continue. 6.
  • Page 82 Universal PCI Board Software Installation Configuring the Ports You may configure the COM ports after the board and drivers have been installed. 1. In the Windows Control Panel, open the System applet. 2. In the Device Manager tab, expand the Moxa Smartio/Industio multiport board category by clicking the “+”...
  • Page 83 Universal PCI Board Software Installation 3. On the Ports Configuration tab, select a port to configure and click Port Setting. 4. Under Port Number, select a COM number to assign to the serial port. Select Auto Enumerating COM Number to map subsequent ports in numerical order. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2.
  • Page 84 Universal PCI Board Software Installation Updating the Driver You may configure the COM ports after the board and drivers have been installed. 1. In the Windows Control Panel, open the System applet. 2. In the Device Manager tab, expand the Moxa Smartio/Industio multiport board category by clicking the “+”...
  • Page 85 \Software directory (e.g., under \CP-118U Series\Software). Select the \Win9x folder and click OK to continue. 6. You will be prompted to restart the system. The new drivers will be in effect the next time you restart.

  • Page 86: Windows Ce

    Universal PCI Board Software Installation Removing the Driver 1. In the Windows Control Panel, open the Add/Remove Programs applet. On the Install/Uninstall tab, select Moxa Smartio/Industio Driver and click Add/Remove. 2. When prompted, click Yes to confirm that you want to remove the driver. 3.
  • Page 87 Universal PCI Board Software Installation Installing the Driver The following procedure explains how to install the CP-104UL multiport serial module driver under WinCE. Obtain a copy of Moxa Tech WinCE 5.0 driver package and extract it to your computer. Double click the Install package to copy the Mxser folder to %WINCEROOT%\PLATFORM\ automatically, and import the supported Moxa Tech products into the Folder.
  • Page 88 Universal PCI Board Software Installation 3-63...
  • Page 89 Universal PCI Board Software Installation 4. Open Manage Catalog Items (File  Manage Catalog Items). In the Catalog (View  Catalog), browse to \Third Party\Device Drivers\ MOXA Smartio/Industio-PCI, PC/104-Plus. Right-click on the driver Prefix COM or Prefix MXU you would like to include and choose Add to OS Design. NOTE You can only select either Prefix COM or Prefix MXU, but not both.
  • Page 90 Universal PCI Board Software Installation 6. After adding Moxa Tech drivers into your OS Design, a new project is automatically added to your workspace. The project name is mxserce5. The project can be accessed from File View (View  File View).
  • Page 91 Universal PCI Board Software Installation 8. Finally, copy your image file to the target Host. NOTE If you have created a Windows CE Platform Builder in the development environment, you can skip steps 2, 3, and 4. Windows CE 6.0 The following procedure explains how to install the CP-102U multiport serial board driver under WinCE 6.0.
  • Page 92 Universal PCI Board Software Installation 3. The CE 6.0 OS Design Wizard will start. Click “Next” to get the Board Support Packages page and select CEPC: x86. Click “Next” to continue. 3-67...
  • Page 93 Universal PCI Board Software Installation 4. On the Design Templates page select your environment, PDA Device for example. Click “Next” to continue. 5. On the Design Template Variants page select your environment, Mobile Handheld for example. Click “Next” to continue. 3-68...
  • Page 94 Universal PCI Board Software Installation 6. On the Application & Media page select your environment, .NET Compact Framework 2.0, ActiveSync, and Quarter VGA Resources-Portrait Mode for example. Click “Next” to continue. 7. On the Networking & Communication page select your environment, TCP/IPv6 Support for example. Click “Next”...
  • Page 95 Universal PCI Board Software Installation 8. When the OS Design Project Wizard Complete screen appears, click “Finish.” The catalog notification will pop up. Click “Acknowledge” to finish the project. 3-70...
  • Page 96 Universal PCI Board Software Installation 9. Open the project you created. Click Project on top of the screen, and select Add Existing Subproject. Specify the PCI MSB Mxser driver location with the subproject file “mxserce6.pbpxml.” 10. After the subproject is added, you may configure the “mxserce6.reg” registry file with the location [HKEY_LOCAL_MACHINE\Drivers\BuiltIn\PCI\Template\MOXAPCICOM].
  • Page 97 Universal PCI Board Software Installation 11. Configuring FIFO and index: Setting the FIFO registry value to 1 enables the FIFO function and 0 disables it. The index allows you to define the initial COM port number in WinCE, but before using this function; make sure that the COM port numbers do not conflict.

  • Page 98: Non Windows Driver

    This section will show you how to install the package, how to set up the driver, and how to load or unload the driver. The following models are supported: 2 Ports 4 Ports 8 Ports CP-112UL/CP-112UL-I CP-114UL/CP-114UL-I CP-118U/CP-118U-I CP-132UL/CP-132UL-I CP-134U/CP-134U-I CP-138U/CP-138U-I CP-102UL CP-104UL CP-168U...
  • Page 99 Universal PCI Board Software Installation 2. After installation is complete, you will be prompted to set up the board and driver initial values. It is strongly recommended that you set up the board and driver at this time by pressing Y. Setting up the Driver The following instructions are not intended to illustrate every function of the setup program.
  • Page 100 Universal PCI Board Software Installation 2. Press PgDn to view and modify the setup options for the selected board. 3. The settings for each port will be displayed. Verify the settings and make any necessary changes. 3-75...
  • Page 101 Universal PCI Board Software Installation Port number: This is the port ID of each port. Application software will refer to a port by its port number (ID). Port numbers must be unique; duplicate port numbers are not allowed. The port number can range from 0 to 255 as long as it does not overlap with another port.

  • Page 102: Linux (32-Bit/64-Bit)

    Unloading the Driver To unload or release the driver from memory, enter DP-DRV /Q at the DOS prompt. Linux (32-bit/64-bit) The Linux drivers support the following models: CP-102U CP-114UL CP-132UL-I CP-138U-I CP-102UL CP-118U CP-134U CP-168U CP-104JU CP-118U-I CP-134U-I POS-104UL CP-104UL CP-132UL...
  • Page 103 Universal PCI Board Software Installation 1. Copy the driver file .tar to your host. 2. #tar xvf <driver tar file> #/tmp/moxa/mxinstall 3. The window shown below will open next. Press RETURN to continue. ============================================================= Copyright© 2008 Moxa Inc. All Rights Reserved. Moxa Smartio/Industio Family Device Driver Installation (Ver.
  • Page 104 Universal PCI Board Software Installation 8. Next, press “Esc” to exit and reboot your computer. 9. Note, whenever you change a MAIN MENU item, you have to reboot your computer. 3-79...

  • Page 105: Serial Programming Tools

    Serial Programming Tools The following topics are covered in this chapter:  Overview  Serial Programming Library  PComm Utilities  Installation  PComm Diagnostic  PComm Monitor  PComm Terminal Emulator...

  • Page 106: Overview

    Universal PCI Board Serial Programming Tools Overview Moxa provides Windows serial programming libraries and troubleshooting utilities that are easy to use and powerful. You can use these tools to reduce software development time. The serial communication library is useful for developing applications for data communications, remote access, data acquisition, and industrial control.

  • Page 107: Pcomm Diagnostic

    Universal PCI Board Serial Programming Tools PComm Diagnostic PComm Diagnostic is designed for Moxa boards only. It provides internal and external testing of IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, DTR/DCD, and other items. You can use PComm Diagnostic to check the operation of both software and hardware.

  • Page 108: Pcomm Terminal Emulator

    Universal PCI Board Serial Programming Tools PComm Terminal Emulator PComm Terminal Emulator can be used to connect to a serial port to verify that data transmission is functioning correctly. It supports multiple windows and both VT100 and ANSI terminal types. You can interactively transfer data, periodically send patterns, and transfer files using ASCII, XMODEM, YMODEM, ZMODEM, and KERMIT protocols.

  • Page 109: Pin Assignments

     DB25 (Female)  DB44 (Female): RS-232  RJ45  DB44 (Female): RS-422, RS-485 (4-wire)  DB44 (Female): RS-485 (2-wire)  CP-118U  DB62 (Female): RS-232  DB62 (Female): RS-422, RS-485 (4-wire)  DB62 (Female): RS-485 (2-wire)  CP-118U-I  DB78 (Female): RS-232 ...

  • Page 110: Overview

    CP-102UF STx2 * The OPT8-RJ45 is designed for RS-232 only. It should only be used with the CP-118U in RS-232 mode or with the CP-168U. The serial connectors on each accessory use standard serial port pin assignments. Please refer to the Serial...
  • Page 111 Universal PCI Board Pin Assignments CP-102U This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CP-102U 2×DB9 (male) DB9 (Male): RS-232 Signal CP-102UL This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CP-102UL DB25 (female) CBL-M25M9x2-50 2×DB9 (male) DB25 (Female): RS-232...
  • Page 112 Universal PCI Board Pin Assignments CP-104JU This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CBL-RJ45M9-150 4×DB9 (male) CP-104JU RJ45 CBL-RJ45M25-150 4×DB25 (male) 8-pin RJ45: RS-232 Signal...

  • Page 113: Db25 (Female): Rs-232

    Universal PCI Board Pin Assignments CP-104UL This board supports RS-232 only. Model Board Connector Supported Accessories Serial Connectors CBL-M44M9x4-50 4×DB9 (male) CP-104UL DB44 (female) CBL-M44M25x4-50 4×DB25 (male) DB44 (Female): RS-232 Signal Signal Signal TxD3 CTS3 DCD3 RxD3 DTR3 RTS3 DSR3 TxD2 CTS2 DCD2...

  • Page 114: Db25 (Female): Rs-485 (4-Wire)

    Universal PCI Board Pin Assignments DB25 (Female): RS-422 Signal Signal TxD1-(A) RxD1-(A) GND1 TxD1+(B) RxD1+(B) TxD0-(A) RxD0-(A) GND0 TxD0+(B) RxD0+(B) DB25 (Female): RS-485 (4-wire) Signal Signal TxD1-(A) RxD1-(A) GND1 TxD1+(B) RxD1+(B) TxD0-(A) RxD0-(A) GND0 TxD0+(B) RxD0+(B) DB25 (Female): RS-485 (2-wire) Signal Signal Data1-(A)

  • Page 115: Db44 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board Pin Assignments CP-114UL This board supports RS-232, RS-422, and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors CBL-M44M9x4-50 4×DB9 (male) CP-114UL DB44 (female) CBL-M44M25x4-50 4×DB25 (male) DB44 (Female): RS-232 Signal Signal Signal TxD3 CTS3 DCD3 RxD3...

  • Page 116: Db44 (Female): Rs-485 (2-Wire)

    Serial Connectors OPT8-M9 8×DB9 (male) CBL-M62M9x8-100 (OPT8D) OPT8B CP-118U DB62 (female) 8×DB25 (male) CBL-M62M25x8-100 (OPT8C) OPT8A, OPT8S 8×DB25 (female) OPT8-RJ45* 8×RJ45 * The OPT8-RJ45 is designed for RS-232 only. It should only be used with the CP-118U in RS-232 mode.

  • Page 117: Db62 (Female): Rs-232

    Universal PCI Board Pin Assignments DB62 (Female): RS-232 Signal Signal Signal TxD0 RxD0 CTS0 DTR0 DSR0 RTS0 RxD1 DCD0 DSR1 TxD1 CTS1 DCD1 DTR1 RTS1 TxD2 RxD2 CTS2 DTR2 DSR2 RTS2 RxD3 DCD2 DSR3 TxD3 CTS3 DCD3 DTR3 RTS3 RxD4 CTS4 DSR4 TxD4...

  • Page 118: Db62 (Female): Rs-485 (2-Wire)

    Universal PCI Board Pin Assignments DB62 (Female): RS-485 (2-wire) Signal Signal Signal Data0+(B) Data0-(A) Data1+(B) Data1-(A) Data2+(B) Data2-(A) Data3+(B) Data3-(A) Data4+(B) Data4-(A) Data5+(B) Data5-(A) Data6+(B) Data6-(A) Data7+(B) Data7-(A) 5-10...
  • Page 119 Universal PCI Board Pin Assignments CP-118U-I This board supports RS-232, RS-422, and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors CBL-M78M9x8-100 8×DB9 (male) CP-118U-I DB78 (female) CBL-M78M25x8-100 8×DB25 (male) DB78 (Female): RS-232 Signal Signal Signal GND7...

  • Page 120: Db78 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board Pin Assignments DB78 (Female): RS-422, RS-485 (4-wire) Signal Signal Signal GND7 RxD5-(A) RxD7+(B) RxD4-(A) GND6 RxD6+(B) GND5 RxD3-(A) RxD5+(B) RxD2-(A) TxD7-(A) GND4 TxD7+(B) RxD4+(B) TxD6-(A) GND3 RxD1-(A) TxD6+(B) RxD3+(B) RxD0-(A) TxD5-(A) GND2 TxD5+(B) RxD2+(B) TxD4-(A) GND1 TxD4+(B) RxD1+(B) TxD3-(A) GND0...

  • Page 121: Cp-132Ul, Cp-132Ul-I

    Universal PCI Board Pin Assignments CP-132UL, CP-132UL-I These boards support RS-422 and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors CP-132UL DB25 (female) CBL-M25M9x2-50 2×DB9 (male) CP-132UL-I DB25 (Female): RS-422 Signal Signal CTS1-(A) TxD1-(A) RxD1-(A) GND1 RTS1-(A) CTS1+(B) RTS1+(B)

  • Page 122: Db25 (Female): Rs-485 (2-Wire)

    Universal PCI Board Pin Assignments DB25 (Female): RS-485 (2-wire) Signal Signal Data1-(A) GND1 Data1+(B) Data0-(A) GND0 Data0+(B) CP-134U, CP-134U-I These boards support RS-422 and RS-485 (both 2 and 4-wire). Ports 1 and 2 also support RS-232. Model Board Connector Supported Accessories Serial Connectors CP-134U CBL-M44M9x4-50...

  • Page 123: Db44 (Female): Rs-485 (4-Wire)

    Universal PCI Board Pin Assignments DB44 (Female): RS-422 Signal Signal Signal RXD3+(B) CTS3+(B) TXD3-(A) TXD3+(B) RXD3-(A) CTS3-(A) RTS3+(B) RTS3-(A) GND3 RXD2+(B) CTS2+(B) TXD2-(A) TXD2+(B) RXD2-(A) CTS2-(A) RTS2+(B) RTS2-(A) GND2 RXD1+(B) CTS1+(B) TXD1-(A) TXD1+(B) RXD1-(A) CTS1-(A) RTS1+(B) RTS1-(A) GND1 TXD0-(A) RXD0+(B) CTS0+(B) CTS0-(A) TXD0+(B)

  • Page 124: Db44 (Female): Rs-485 (2-Wire)

    Universal PCI Board Pin Assignments DB44 (Female): RS-485 (2-wire) Signal Signal Signal Data3+(B) Data3-(A) GND3 Data2+(B) Data2-(A) GND2 Data1+(B) Data1-(A) GND1 Data0+(B) Data0-(A) GND0 CP-138U This board supports RS-422 and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors OPT8-M9 8×DB9 (male)

  • Page 125: Db62 (Female): Rs-422, Rs-485 (4-Wire)

    Universal PCI Board Pin Assignments DB62 (Female): RS-422, RS-485 (4-wire) Signal Signal Signal RxD0+(B) TxD0+(B) RxD0-(A) TxD1+(B) TxD0-(A) RxD1+(B) TxD1-(A) RxD1-(A) RxD2+(B) TxD2+(B) RxD2-(A) TxD3+(B) TxD2-(A) RxD3+(B) TxD3-(A) RxD3-(A) TxD4+(B) RxD4+(B) TxD4-(A) RxD4-(A) RxD5+(B) TxD5+(B) RxD5-(A) TxD6+(B) TxD5-(A) RxD6+(B) TxD6-(A) RxD6-(A) TxD7+(B) RxD7+(B)

  • Page 126: Cp-138U-I

    Universal PCI Board Pin Assignments CP-138U-I This board supports RS-422 and RS-485 (both 2 and 4-wire). Model Board Connector Supported Accessories Serial Connectors CBL-M78M9x8-100 8×DB9 (male) CP-138U-I DB78 (female) CBL-M78M25x8-100 8×DB25 (male) DB78 (Female): RS-422, RS-485 (4-wire) Signal Signal Signal GND7 RxD5-(A) RxD7+(B)

  • Page 127: Db78 (Female): Rs-485 (2-Wire)

    Universal PCI Board Pin Assignments DB78 (Female): RS-485 (2-wire) Signal Signal Signal GND7 Data2+(B) Data4-(A) Data7+(B) GND1 Data1+(B) GND6 Data3-(A) Data6+(B) GND0 GND5 Data0+(B) Data2-(A) Data5+(B) Data7-(A) GND4 Data1-(A) Data4+(B) Data6-(A) GND3 Data0-(A) Data3+(B) Data5-(A) GND2 CP-168U This board supports RS-232. With the OPT8F or OPT8Z accessory, it can support RS-422. With the OPT8K or OPT8I accessory, it can support RS-422 and RS-485 (both 2 and 4-wire).

  • Page 128: Db62 (Female): Rs-232

    Universal PCI Board Pin Assignments DB62 (Female): RS-232 Signal Signal Signal TxD0 RxD0 CTS0 DTR0 DSR0 RTS0 RxD1 DCD0 DSR1 TxD1 CTS1 DCD1 DTR1 RTS1 TxD2 RxD2 CTS2 DTR2 DSR2 RTS2 RxD3 DCD2 DSR3 TxD3 CTS3 DCD3 DTR3 RTS3 RxD4 CTS4 DSR4 TxD4...

  • Page 129: Serial Connectors

    Universal PCI Board Pin Assignments CP-102UF Serial Connectors DB9 (Male) The following accessories provide DB9 (male) serial connectors for your UPCI board: Accessory Board Connector Serial Connectors CBL-M25M9x2-50 DB25 (female) 2×DB9 (male) CBL-M44M9x4-50 DB44 (female) 4×DB9 (male) CBL-M44M9x4-50(POS) DB44 (female) 4×DB9 (male) CBL-RJ45M9-150 RJ45...

  • Page 130: Db25 (Male)

    Universal PCI Board Pin Assignments DB25 (Male) The following accessories provide DB25 (male) serial connectors for your UPCI board: Accessory Board Connector Serial Connectors CBL-M44M25x4-50 DB44 (female) 4×DB25 (male) CBL-RJ45M25-150 RJ45 4×DB25 (male) OPT8B DB62 (female) 8×DB25 (male) CBL-M62M25x8-100 (OPT8C) CBL-M78M25x8-100 DB78 (female) 8×DB25 (male)

  • Page 131: Rj45

    Serial Connectors OPT8-RJ45 DB62 (female) 8×RJ45 The pin assignments for the RJ45 serial connector are shown below. Only RS-232 is supported. The OPT8-RJ45 accessory should only be used with the CP-118U in RS-232 mode or with the CP-168U. RS-232 5-23...

This manual is also suitable for:

Cp-118-u-i-tCp-138uCp-138-tCp-138-iCp-118u-tCp-138-u-t-i ... Show all

Table of Contents
