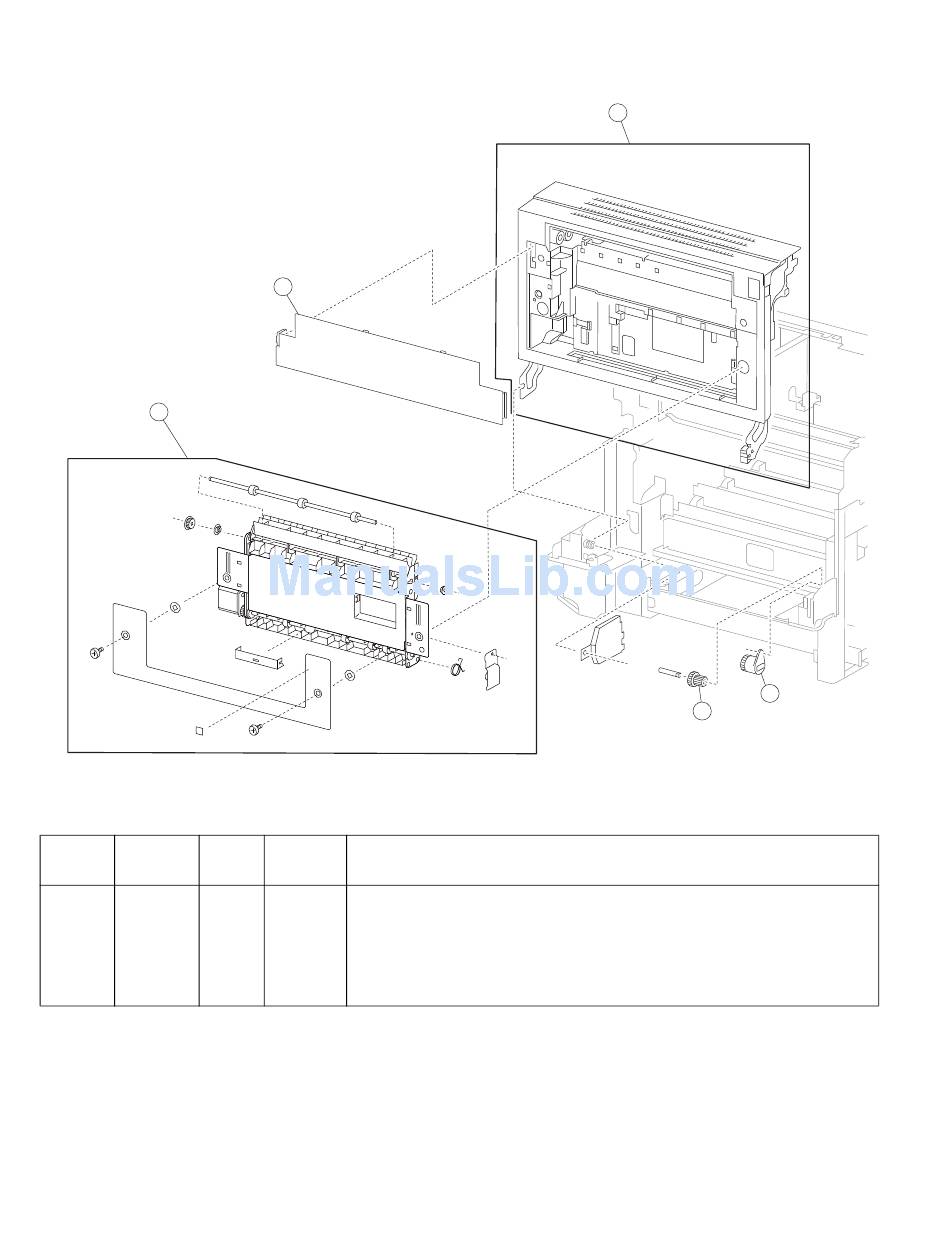

Assembly 13: Printer left door and duplex

4
Asm- Part FRUs/
index number mach
1 40X4078
2 40X3697
3 40X3696
4 40X3799
5 40X3798
7-16
MFP Service Manual
5
Units/
Description
FRU
1 1 Printer left door assembly (this comes assembled)
1 1 Printer left door damper assembly
1 1 Printer left door damper idler gear
1 1 Duplex unit assembly (this comes assembled)
1 1 Printer left door blind cover
