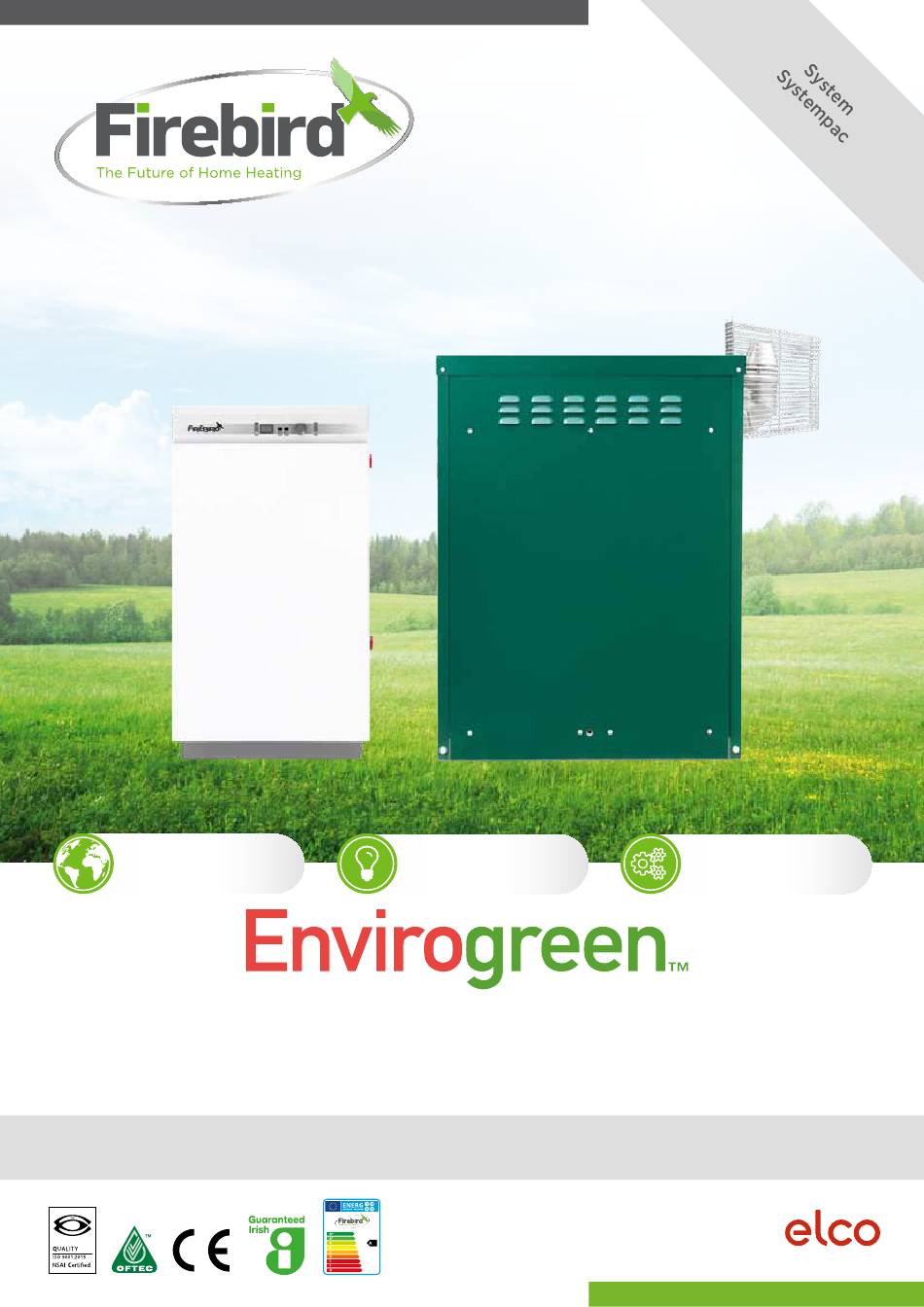

- Page 1 Environment Innovation Technology Condensing Boiler TEC HNIC A L MANU AL This manual must remain with the householder once installation is complete February 2023...
-
Page 2: Table Of Contents
Contents FoReWoRD We would like to thank you for purchasing a high efficiency Firebird condensing liquid fuel boiler with an Elco low NOx burner. This instruction manual is produced for the reference and guidance of qualified installation engineers, preferably OFTEC (Oil Firing Technical Association) registered. EU legislation governs the manufacture, operation and efficiency of all domestic central heating oil boilers. -
Page 3: Safety
saFety safety - conformity was demonstrated by meeting the HealtH & saFety inFoRMation following standards: The installer should be aware of his/her responsibilities under the current, local Health and Safety at Work Act. The BS EN 60335-1: 2012 + A2: 2019: Household and Similar interests of safety are best served if the boiler is installed Electrical Appliances - Safety - Part 1: general Requirements and commissioned by a competent, qualified engineer,... -
Page 4: Standards & Regulations
stanDaRDs & Regulations to ensure the highest standards of installation & safety, it Regional water supply (water fittings) regulations/ is important that the boiler is installed and commissioned byelaws. by a competent, qualified engineer, preferably oFteC trained and registered. it is the responsibility of the Regional control of pollution (oil storage) regulations. -
Page 5: Condensate Disposal
2.1 stanDaRDs & Regulations - ConDensate DisPosal Firebird condensing boilers, when in condensing mode, extract more heat from the flue products and the resulting condensate which is mildly acidic, needs to be drained from the boiler via a condensate pipe to the drainage system. - Page 6 2.1 stanDaRDs & Regulations - ConDensate DisPosal systeM no. 2 ConDensate PuMP ConDensate PuMP Control panel (kit is available as an optional extra) Burner plug Condensate pump wired in to come on with burner. Inlet connected to condensate trap at base of boiler. Condensate trap Condensate pump...
- Page 7 2.1 stanDaRDs & Regulations - ConDensate DisPosal Condensate trap Fitting 1. Push washer into trap socket and screw trap onto boiler socket in the desired direction. Washer S/S trap 2. Push flexible pipe onto trap socket. 3. Final assembly.
-
Page 8: Flue Regulations
2.2 stanDaRDs & Regulations - Flue Regulations Flue teRMinal siting The terminal should be positioned to avoid combustion products entering the building or accumulating in stagnant pockets around buildings. The terminal must be protected by a guard if it is less than 2 metres above ground level or in a position where any person has access to it (i.e. - Page 9 BalanCeD Flue BoileRs The Firebird boiler may be set for room-sealed flue operation using a Firebird condensing balanced flue kit. This kit does not draw combustion air from inside the room. it is drawn from outside, direct to the burner by an air pipe supplied with the boiler.
- Page 10 Please note that only Firebird flue kits should be used for flue installations.
-
Page 11: Flue Systems
2.3 stanDaRDs & Regulations - Flue systeMs PLUME KIT CONDENSING BOILER CHIMNEY INSTALLATION Condensing Condensing birdguard birdguard System 35 System 35 clamp plate clamp plate 80 mm 45˚ bend System 35 flexible liner System 35 flexible liner suitable for condensing suitable for condensing applications applications... -
Page 12: Fuel Supply
2.4 stanDaRDs & Regulations - Fuel suPPly Fuel stoRage tanK sitting Regulations & stanDaRDs Consult OFTEC Manuals Please consult all local and regional regulations, relevant to water resources (control of pollution and oil storage) as It is unlikely that a fire will start at a fuel tank. However, well as OFTEC Book Three. -
Page 13: System Boiler
3.1 systeM BoileR - HouseHolDeR/enD useR inFoRMation TO TURN THE BOILER OFF: Please consult with your installer regarding the operation of your boiler. this should include timer operation/ • Press button 4 and hold for 6 seconds until “off” appears room thermostat operation and any other additional on the LCD. operational features. - Page 14 3.1 systeM BoileR - HouseHolDeR/enD useR inFoRMation ERROR DISPLAy AND RE-SET systeM BoileR 36-44kW Warning: Should an error appear on the control panel display, consult your service engineer or the Firebird technical department before attempting to re-set the error. ERROR DISPLAy E1 Thermistor fault.
-
Page 15: Installer Guidelines
Connect pipework as shown below. Sound levels must also be a consideration. Whilst Firebird condensing liquid fuel boilers are one of the quietest boilers on the market, some householders are particularly sensitive. - Page 16 3.2 systeM BoileR - installeR guiDelines Filling looP 36-44kW Connect the filling loop. Open both valves. Do not allow the unit to exceed 1 bar while filling and a maximum of 2 bar when the radiators are at full operating temperature. The Automatic automatic air vent will allow air to dispel from the boiler.
- Page 17 3.2 systeM BoileR - installeR guiDelines FlaP valve installation Balanced flue Jubilee clip Flap valve "TOP" mark "TOP" mark Snorkel Jubilee clip Correct position of flap valve 1. Push the flap valve into the balanced flue air intake. 2. Ensure that the flap valve is in the correct position.
- Page 18 3.2 systeM BoileR - installeR guiDelines WiRing tHeRMostat teMPeRatuRe ContRol Boiler Central Heating Control: 60˚C - 80˚C electrical supply Boiler Safety Limit: 110˚C the boiler and controls require a 230v 50Hz mains electric supply protected with a 5a fuse. Tank (DHW) - Fixed: 78˚C Early Alert - Fixed 87˚C...
- Page 19 3.2 systeM BoileR - installeR guiDelines SySTEM BOILER 36-44kW Pump over run thermostat 87˚C L3 permanent live Power to burner L1 switch live High temperture limit thermostat. Reset pin inside. Screw off cover. IMIT dual thermostat Temperture control dial. Max. 80˚C. Min.
-
Page 20: Technical Details
3.3 systeM BoileR - teCHniCal Details teCHniCal Details SySTEM BOILER 12-20kW, 20-26kW AND 26-35kW Front View Side View Top View SySTEM BOILER 36-44kW Front View Side View Top View Model - system Weight Dimensions (mm) envirogreen (output range) envirogreen system 12-20kW envirogreen system 20-26kW envirogreen system 26-35kW envirogreen system 36-44kW... - Page 21 3.3 systeM BoileR - teCHniCal Details Only for 36-44 kW No. Qty Description 12-20 kW 20-26 kW 26-35 kW 36-44 kW Tube baffle BA110907 BA110907 BA110907 BA111503 Tube baffle single BA110908 BA110908 BA110908 BA111502 Smoke baffle BA212022 BA212028 BA212122 BA211651 Door duroboard kit 314583 314583...
- Page 22 3.3 systeM BoileR - teCHniCal Details teCHniCal sPeCiFiCation Heat Output 12-20 + 20-26 26-35 36-44 cOnnectiOnS Heating Flow 22 mm dia. 28 mm dia. 1 ½” BSP Heating Return 1” BSP 1” BSP 1 ½” BSP Mains Cold Feed (Copper) 15 mm dia.
-
Page 23: Householder/End User Information
4.1 systeMPaC - HouseHolDeR/enD useR inFoRMation Please consult with your installer regarding the operation of your boiler. this should include timer operation/room thermostat operation and any other additional operational features. the basic features of the control panel are outlined below. Minimum Medium Maximum... -
Page 24: Installer Guidelines
Connect pipework as shown below. Sound levels must also be a consideration. Whilst Firebird condensing liquid fuel boilers are one of the quietest boilers on the market, some householders are particularly sensitive. - Page 25 4.2 systeMPaC - installeR guiDelines 36-44kW Filling looP Connect the filling loop. Open both valves. Do not Automatic allow the unit to exceed 1 bar while filling and a air vent maximum of 2 bar when the radiators are at full operating temperature.
- Page 26 4.2 systeMPaC - installeR guiDelines WiRing The boiler must have a permanent power supply to enable overrun and frost protection. The hot water and central electrical supply heating should be timed separately. the boiler and controls require a 230v 50Hz mains electric supply protected with a 5a fuse.
- Page 27 4.2 systeMPaC - installeR guiDelines systeMPaC Flue installation Condensate Plume disPersal When choosing the location for a condensing boiler, special consideration must be given to the positioning of the flue terminal. Care should be taken to locate it so as to prevent either the end user or their neighbours perceiving the plume to be a nuisance. It should be noted that the normal statutory clearances required around low level flue terminals may not be sufficient to cope with plume dispersal from a condensing boiler.
-
Page 28: Technical Details
4.3 systeMPaC - teCHniCal Details teCHniCal Details SySTEMPAC 12-20kW, 20-26kW AND 26-35kW Front View Side View Rear View Base SySTEMPAC 36-44kW Front View Side View Rear View Base Model - systempac Weight Dimensions (mm) envirogreen (output range) envirogreen systempac 12-20kW envirogreen systempac 20-26kW envirogreen systempac 26-35kW envirogreen systempac 36-44kW... - Page 29 4.3 systeMPaC - teCHniCal Details Only for 36-44 kW No. Qty Description 12-20 kW 20-26 kW 26-35 kW 36-44 kW Tube baffle BA110907 BA110907 BA110907 BA111503 Tube baffle single BA110908 BA110908 BA110908 BA111502 Smoke baffle BA212022 BA212028 BA212122 BA211651 Door duroboard kit 314583 314583 314583...
- Page 30 4.3 systeMPaC - teCHniCal Details teCHniCal sPeCiFiCation Heat Output 12-20 + 20-26 26-35 36-44 cOnnectiOnS Heating Flow 22 mm dia. 28 mm dia. 1 ½” BSP Heating Return 1” BSP 1” BSP 1 ½” BSP Mains Cold Feed (Copper) 15 mm dia. 15 mm dia.
-
Page 31: Commissioning
For concentric balanced flue: of installation (this can also be done online on the - the cone supplied should be inserted in to the end Firebird website). a copy should be retained by the of the flue; commissioning engineer. -
Page 32: Servicing
BuRneR annual servicing must be carried out by a competent, qualified engineer, preferably oFteC registered and familiar with Firebird products. Please refer to the burner manual for specification and combustion check information. Do not commence service until both the electrical and fuel supply to the boiler have been safely isolated. -
Page 33: Terms & Conditions Of Warranty
8. Firebird will not accept any liability in respect of any u Correct commissioning will ensure that your boiler is defect occurring to the product due to limescale set to operate at its maximum fuel efficiency. -
Page 34: Product Fiche
PRoDuCt FiCHe ErP A Rated Auxiliary Electrical Consumption Seasonal Rated heat Annual energy Sound power Energy Efficiency Full Part Stand by output Model consumption level Base Model efficiency Load Load Mode Identifier class elmax elmin (kW) (kW) (kW) ENVIROGREEN SYSTEM 12-20kW 92.53 62.20... - Page 36 +44 (0)1752 691177 +44 (0)1752 691131 sales@firebird.uk.com www.firebird.uk.com Copyright applies to all Firebird products. Our policy is one of continual development and we therefore reserve the right to change without prior notice the specification of our products at any time and be without obligation to make similar changes in products previously produced.
