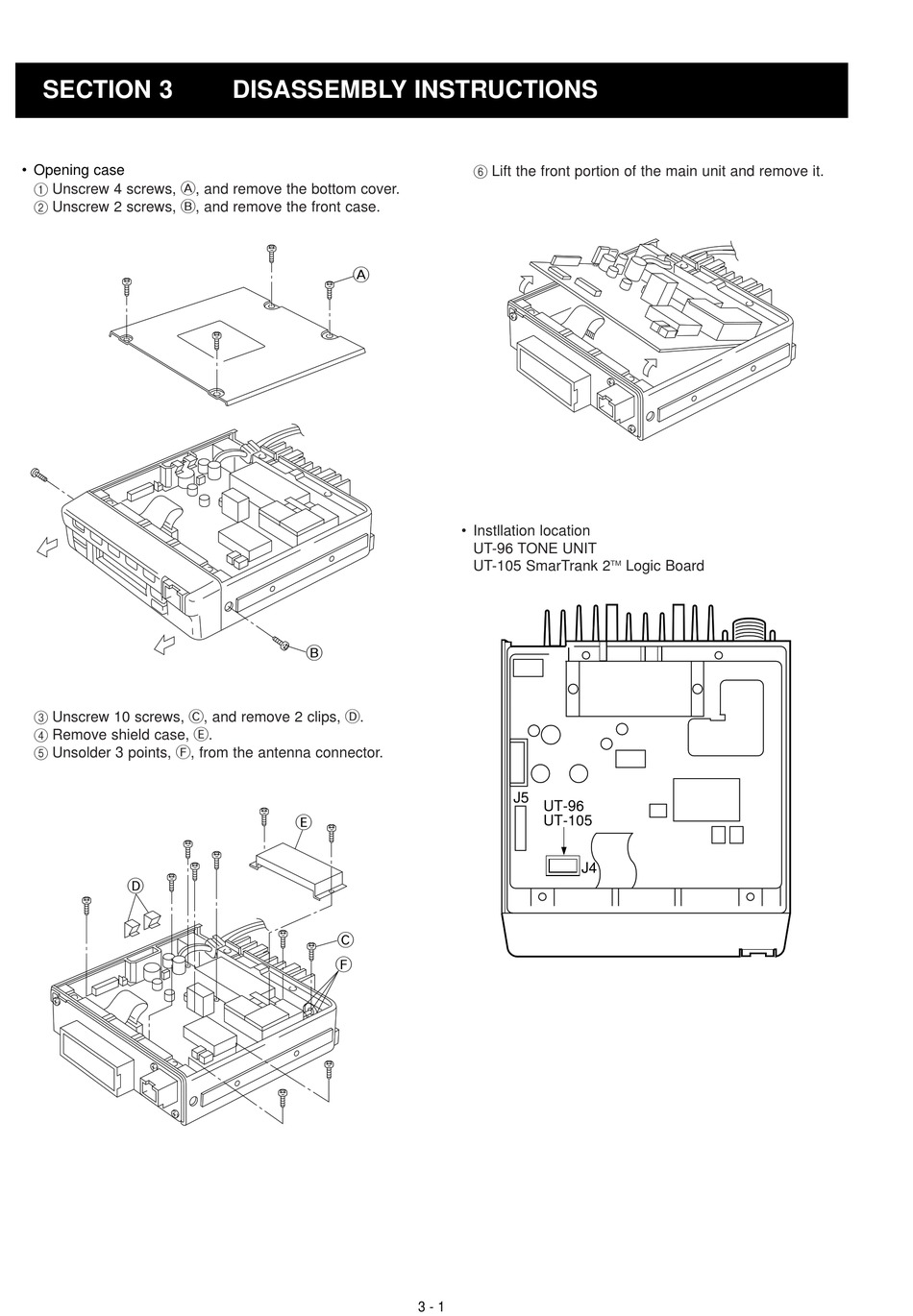

SECTION 3

• Opening case

1 Unscrew 4 screws, A, and remove the bottom cover.
2 Unscrew 2 screws, B, and remove the front case.
3 Unscrew 10 screws, C, and remove 2 clips, D.
4 Remove shield case, E.
5 Unsolder 3 points, F, from the antenna connector.
D

DISASSEMBLY INSTRUCTIONS

A
B
E
C
F
6 Lift the front portion of the main unit and remove it.

• Instllation location

UT-96 TONE UNIT
UT-105 SmarTrank 2
J5
UT-96
UT-105
J4
3 - 1
TM Logic Board
