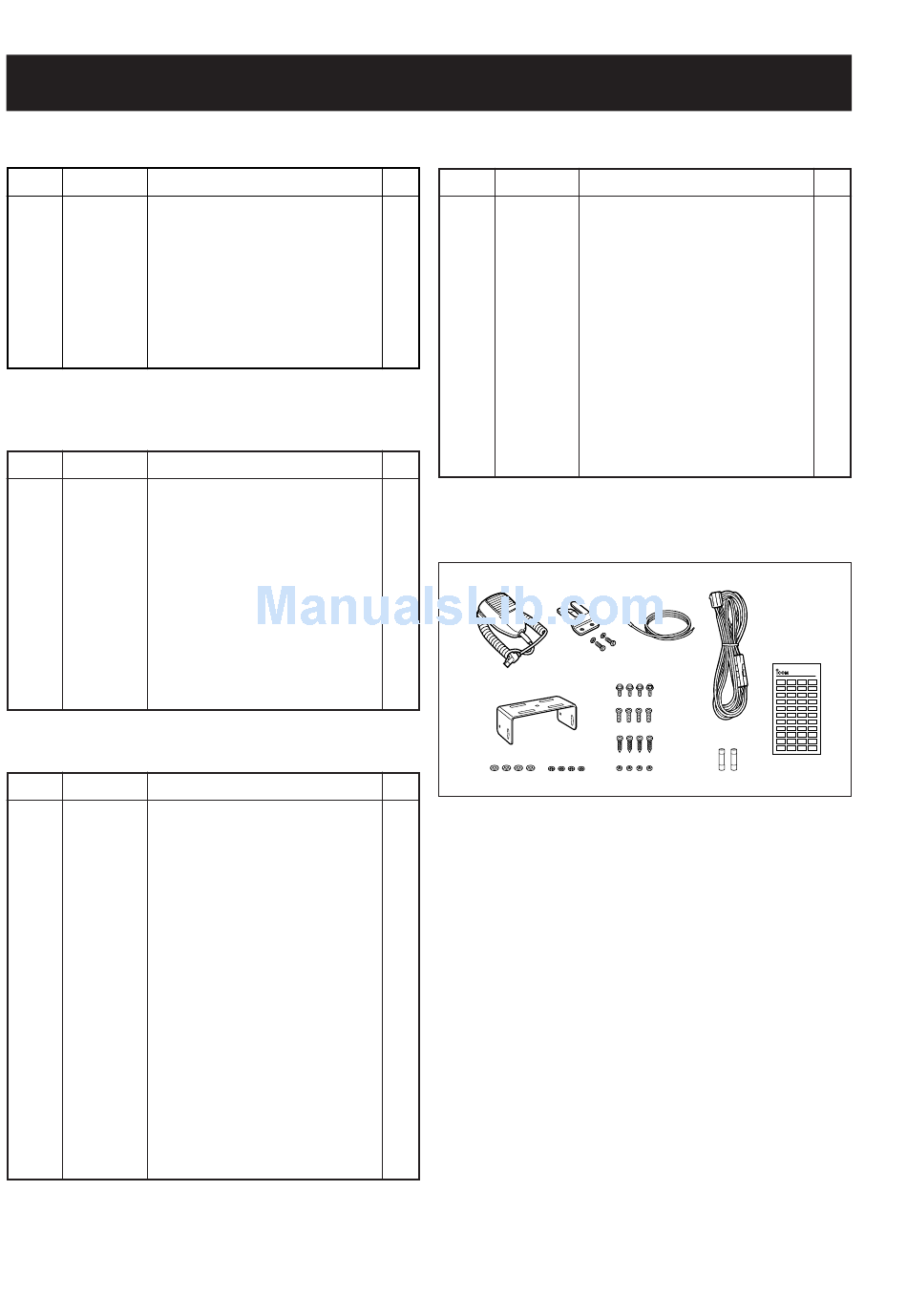

Mechanical Parts - Icom IC-F410 Service Manual

SECTION 7
[FRONT UNIT]
REF NO. ORDER NO.
J1 6450001470 Connector 95003-2881
W3 8900007680 Cable OPC-741
DS1 5030001540 LCD LD-HU10140J
EP2 8930044930 LCD contact SRCN-2055-SP-N-W
MP1 8210015090 2055 LCD reflector
8210016090 2266 reflector
MP2 8930044110 2055 LCD holder
8310045980 2266 plate
C: LCD type (F410/F420), E: LED type (F410S/F420S)
[CHASSIS PARTS]
REF NO. ORDER NO.
J1 6510004880 Connector MR-DS-E 01
SP1 2510001030 Speaker VS-57-0837A
WS1 8600036130 P1CH
MP1 8010017100 2055 Chassis
MP2 8010017120 2055 Cover
MP3 8210015070 2055 Front panel
MP4 8930044820 2055 Front key (A)
MP7 8810008660 PH BT M3 X 8 NI-ZU
MP8 8930044100 2055 Speaker plate
MP9 8930044761 2055 Speaker net-1
MP11 8930027480 1126 TR-A clip
MP12 8930039890 Insulation sheet (AM)
[MAIN UNIT]
REF NO.
ORDER NO.
J1 6450000140 Connector HSJ0807-01-010
W6 8900004540 Cable OPC-453
EP3 6910006290 Bead HF70BB (9 X 5 X 4.5)
MP1 8510009980 1705 VCO case
MP2 8510010080 1705 VCO cover
MP3 8510011460 2055 Filter case
MP4 8510011610 2055 Filter cover (A)
MP5 8510000210 194 Shield plate
MP6 8510005070 599 Shield plate
MP7 8930045920 2056 Sponge
MP8 8930045930 2056 M-holder
MP9 8930046150 Rubber sheet (AK)-1
MP10 8930045390 Sponge (FL)
MP11 8930045920 2056 Sponge
MP12 8930045070 2056 M-plate
MP13 8930045920 2056 Sponge
MP14 8930046770 Thermally sheet (G)
MP15 8510002280 VCO cover
MP16 8930048870 2056 A-Sponge
MP17 8510002280 VCO cover
MP18 8930048870 2056 A-Sponge

MECHANICAL PARTS

DESCRIPTION QTY.
C only
E only
C only
E only
DESCRIPTION QTY.
24
DESCRIPTION QTY.
[LMR] only
[LMR] only
[H-band] only
[H-band] only
[H-band] only
[UNPACKING]
REF NO. ORDER NO.
1
F1 5210000120
5210000080
1
MC1 Optional product
1
W1 Optional product
1
Optional product
W2 Optional product
1
1
MP1 8010016380
1
MP3 8820000530
1
MP4 8810000470
MP5 8810005840
MP6 8850000150
MP7 8850000390
MP8 8830000120
MP9 6910004210
MP10 8310042780
1
Screw abbreviations
1
1
1
MC1
1
MP9
1
1
1
1
2
MP1
2
MP6 MP7
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
7 - 1
DESCRIPTION
Fuse FGB 15A
Fuse FGB 20A
Microphone EM-99
Cable OPC-345
Cable OPC-346
Cable OPC-049
1542 MOBIL BLACKET (B)
Flange volt M4 X 8 NI
PH M5 X 12 NI
PH A M5 X 20
Flat washer M5 NI BS
Spring waser M5
Nut M5
731 Mic hanger set (incl. screw, washer)
Label 1705 LCD seal (A)
BT: Self-tapping PH: Pan head
FH: Flat head ZK: Black
NI-ZK: Nickel-Zinc BS: Brass
W1
W2
MP3
MP4
MP5
MP8 F1
QTY.
[PMR] 2
[LMR] 2
1
[PMR] 1
[LMR] 1
1
1
4
4
4
4
4
4
1
1
LCD-STICKER
MP10
