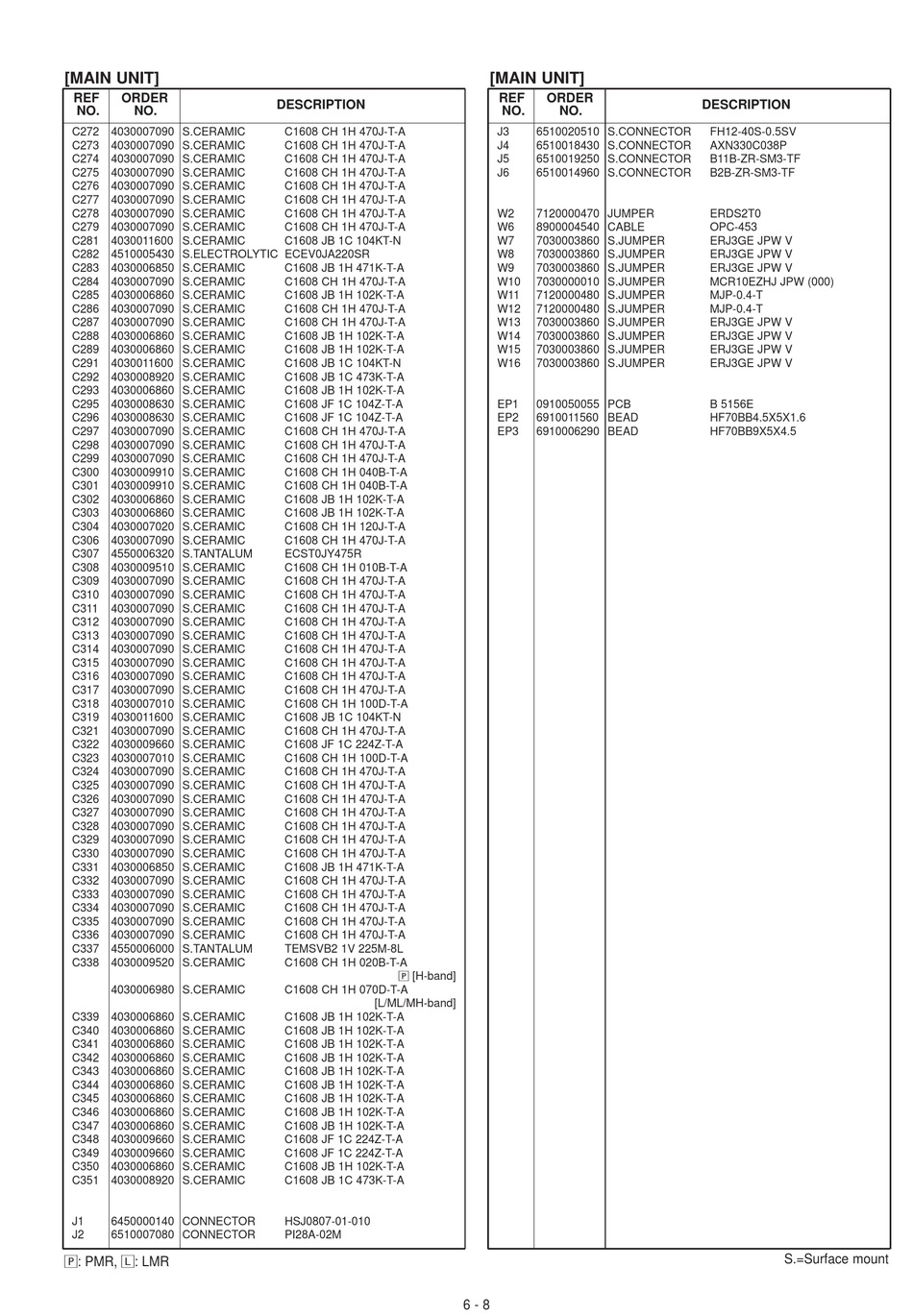

Icom IC-F410 Service Manual page 25

[MAIN UNIT]
REF ORDER
NO. NO.
C272 4030007090 S.CERAMIC
C273 4030007090 S.CERAMIC
C274 4030007090 S.CERAMIC
C275 4030007090 S.CERAMIC
C276 4030007090 S.CERAMIC
C277 4030007090 S.CERAMIC
C278 4030007090 S.CERAMIC
C279 4030007090 S.CERAMIC
C281 4030011600 S.CERAMIC
C282 4510005430 S.ELECTROLYTIC ECEV0JA220SR
C283 4030006850 S.CERAMIC
C284 4030007090 S.CERAMIC
C285 4030006860 S.CERAMIC
C286 4030007090 S.CERAMIC
C287 4030007090 S.CERAMIC
C288 4030006860 S.CERAMIC
C289 4030006860 S.CERAMIC
C291 4030011600 S.CERAMIC
C292 4030008920 S.CERAMIC
C293 4030006860 S.CERAMIC
C295 4030008630 S.CERAMIC
C296 4030008630 S.CERAMIC
C297 4030007090 S.CERAMIC
C298 4030007090 S.CERAMIC
C299 4030007090 S.CERAMIC
C300 4030009910 S.CERAMIC
C301 4030009910 S.CERAMIC
C302 4030006860 S.CERAMIC
C303 4030006860 S.CERAMIC
C304 4030007020 S.CERAMIC
C306 4030007090 S.CERAMIC
C307 4550006320 S.TANTALUM
C308 4030009510 S.CERAMIC
C309 4030007090 S.CERAMIC
C310 4030007090 S.CERAMIC
C311 4030007090 S.CERAMIC
C312 4030007090 S.CERAMIC
C313 4030007090 S.CERAMIC
C314 4030007090 S.CERAMIC
C315 4030007090 S.CERAMIC
C316 4030007090 S.CERAMIC
C317 4030007090 S.CERAMIC
C318 4030007010 S.CERAMIC
C319 4030011600 S.CERAMIC
C321 4030007090 S.CERAMIC
C322 4030009660 S.CERAMIC
C323 4030007010 S.CERAMIC
C324 4030007090 S.CERAMIC
C325 4030007090 S.CERAMIC
C326 4030007090 S.CERAMIC
C327 4030007090 S.CERAMIC
C328 4030007090 S.CERAMIC
C329 4030007090 S.CERAMIC
C330 4030007090 S.CERAMIC
C331 4030006850 S.CERAMIC
C332 4030007090 S.CERAMIC
C333 4030007090 S.CERAMIC
C334 4030007090 S.CERAMIC
C335 4030007090 S.CERAMIC
C336 4030007090 S.CERAMIC
C337 4550006000 S.TANTALUM
C338 4030009520 S.CERAMIC
4030006980 S.CERAMIC
C339 4030006860 S.CERAMIC
C340 4030006860 S.CERAMIC
C341 4030006860 S.CERAMIC
C342 4030006860 S.CERAMIC
C343 4030006860 S.CERAMIC
C344 4030006860 S.CERAMIC
C345 4030006860 S.CERAMIC
C346 4030006860 S.CERAMIC
C347 4030006860 S.CERAMIC
C348 4030009660 S.CERAMIC
C349 4030009660 S.CERAMIC
C350 4030006860 S.CERAMIC
C351 4030008920 S.CERAMIC
J1 6450000140 CONNECTOR
J2 6510007080 CONNECTOR
∏: PMR, Ò: LMR
DESCRIPTION
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1C 104KT-N
C1608 JB 1H 471K-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1C 104KT-N
C1608 JB 1C 473K-T-A
C1608 JB 1H 102K-T-A
C1608 JF 1C 104Z-T-A
C1608 JF 1C 104Z-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 040B-T-A
C1608 CH 1H 040B-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 CH 1H 120J-T-A
C1608 CH 1H 470J-T-A
ECST0JY475R
C1608 CH 1H 010B-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 100D-T-A
C1608 JB 1C 104KT-N
C1608 CH 1H 470J-T-A
C1608 JF 1C 224Z-T-A
C1608 CH 1H 100D-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 JB 1H 471K-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
C1608 CH 1H 470J-T-A
TEMSVB2 1V 225M-8L
C1608 CH 1H 020B-T-A
∏ [H-band]
C1608 CH 1H 070D-T-A
[L/ML/MH-band]
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1H 102K-T-A
C1608 JF 1C 224Z-T-A
C1608 JF 1C 224Z-T-A
C1608 JB 1H 102K-T-A
C1608 JB 1C 473K-T-A
HSJ0807-01-010
PI28A-02M
[MAIN UNIT]
REF ORDER
NO. NO.
J3 6510020510 S.CONNECTOR
J4 6510018430 S.CONNECTOR
J5 6510019250 S.CONNECTOR
J6 6510014960 S.CONNECTOR
W2 7120000470 JUMPER
W6 8900004540 CABLE
W7 7030003860 S.JUMPER
W8 7030003860 S.JUMPER
W9 7030003860 S.JUMPER
W10 7030000010 S.JUMPER
W11 7120000480 S.JUMPER
W12 7120000480 S.JUMPER
W13 7030003860 S.JUMPER
W14 7030003860 S.JUMPER
W15 7030003860 S.JUMPER
W16 7030003860 S.JUMPER
EP1 0910050055 PCB
EP2 6910011560 BEAD
EP3 6910006290 BEAD
6 - 8
DESCRIPTION
FH12-40S-0.5SV
AXN330C038P
B11B-ZR-SM3-TF
B2B-ZR-SM3-TF
ERDS2T0
OPC-453
ERJ3GE JPW V
ERJ3GE JPW V
ERJ3GE JPW V
MCR10EZHJ JPW (000)
MJP-0.4-T
MJP-0.4-T
ERJ3GE JPW V
ERJ3GE JPW V
ERJ3GE JPW V
ERJ3GE JPW V
B 5156E
HF70BB4.5X5X1.6
HF70BB9X5X4.5
S.=Surface mount
